Installation-, Operating-, Maintenance-Manual, Spare part List MAK10
AGT-PSG GmbH & Co.KG
Errors and printing mistakes excepted
Page 14
Translation - Manual MAK10 Rev. 11/2017

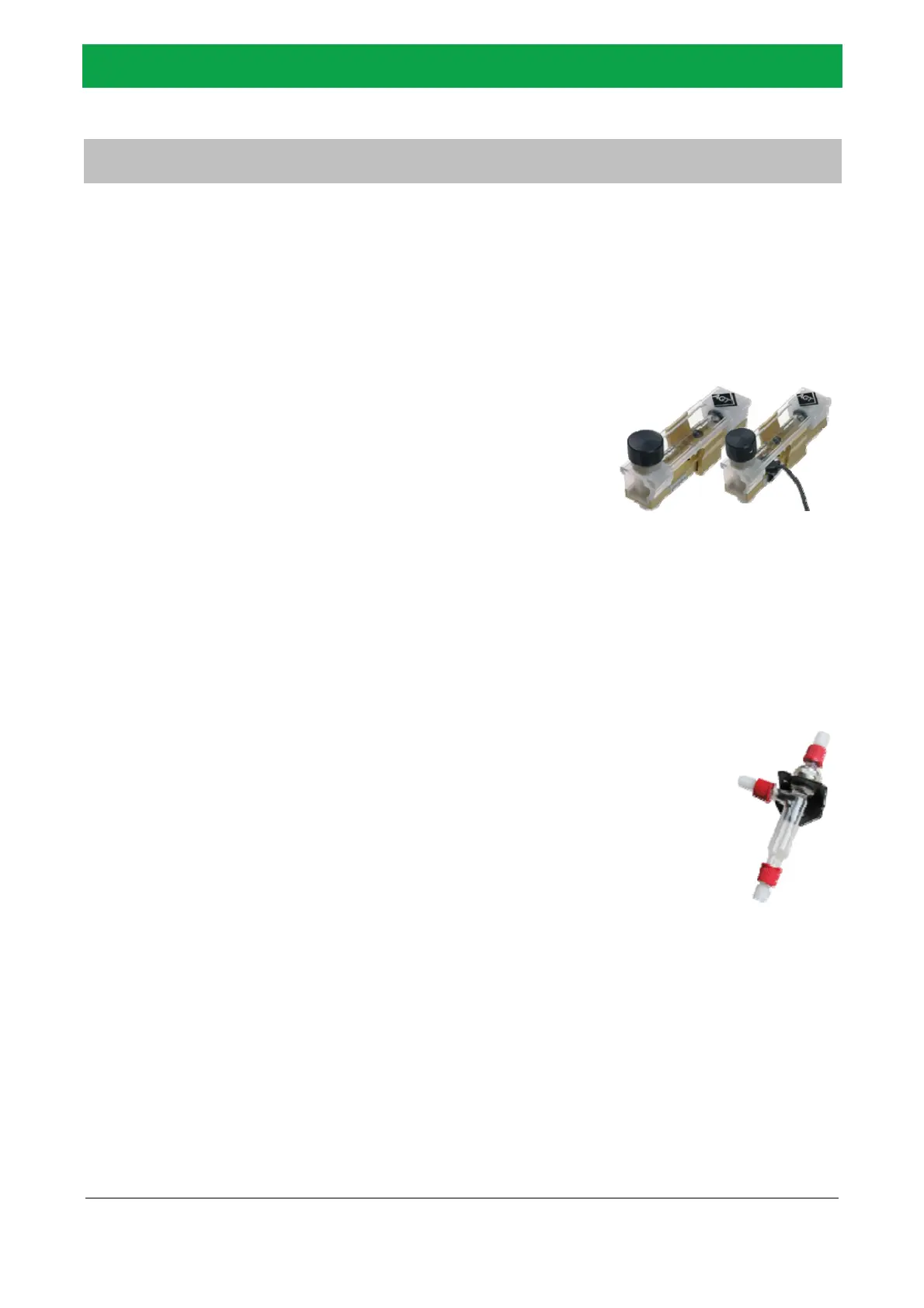

Components
Flowmete
(optional)
The highly corrosion-resistant flowmeter with needle valve is used for flow control of aggressive gas
media. It consist of a flared top glass tube in which a float can move freely up and down. The gas flows
from the bottom up through the tube and thereby lifts a float. For a precise adjustment the flow meter is
supplied with an integrated fine adjustment valve. Optionally, the flowmeter can be equipped with a one-
shot sensor light barrier. In combination with an appropriate electronic control the gas flow can be
accurately monitored. The flow meter has a measuring range of 14 to 140 l/h for wall-mounted devices
(45° installation position) and 15 to 150 l/h for 19”-rack models (90° installation position)
FEATURES FM140/FM150
Dosage of aggressive gaseous media
With fine adjustment valve
High chemical resistance
Optional light barrier
Optional electronic control
Condensate Pre-Separato
r
(optional)
Condensate pre-separators can be used for measuring points at high inlet temperatures of up to 160 °C
and high inlet dew points greater than 65 °C. The capacity of heat exchangers is thus affected favorably.
The sample gas is pre-cooled in condensate pre-separators by the ambient air. On reaching the dew
point, water vapor condenses along the dew point line as a result of the cooling. Condensate is separated
from the sample gas and collected in the condensate separator of the pre-separator. Condensate is
continuously discharged by the connected condensate pump (3,4ml/min @ 5U/min - N3,2x1,6mm).
FEATURES PS
Separation of free condensate and solid particles
Sample gas pre-cooling for inlet dew points >65°C
Improved performance of the sample gas cooler
Suitable for high temperatures
with condensate pump
