AGT PSG MAK10 User Manual

Installation-, Operating-, Maintenance-Manual, Spare part List MAK10
AGT-PSG GmbH & Co.KG
Errors and printing mistakes excepted
Page 9
Translation - Manual MAK10 Rev. 11/2017
Assembly and Installation
Feed Lines
The sample gas cooler is equipped with a flexible/modular sample gas connection system. The media
connections can be on the top panel (standard housing) or on the rear panel (19”-rack housing).

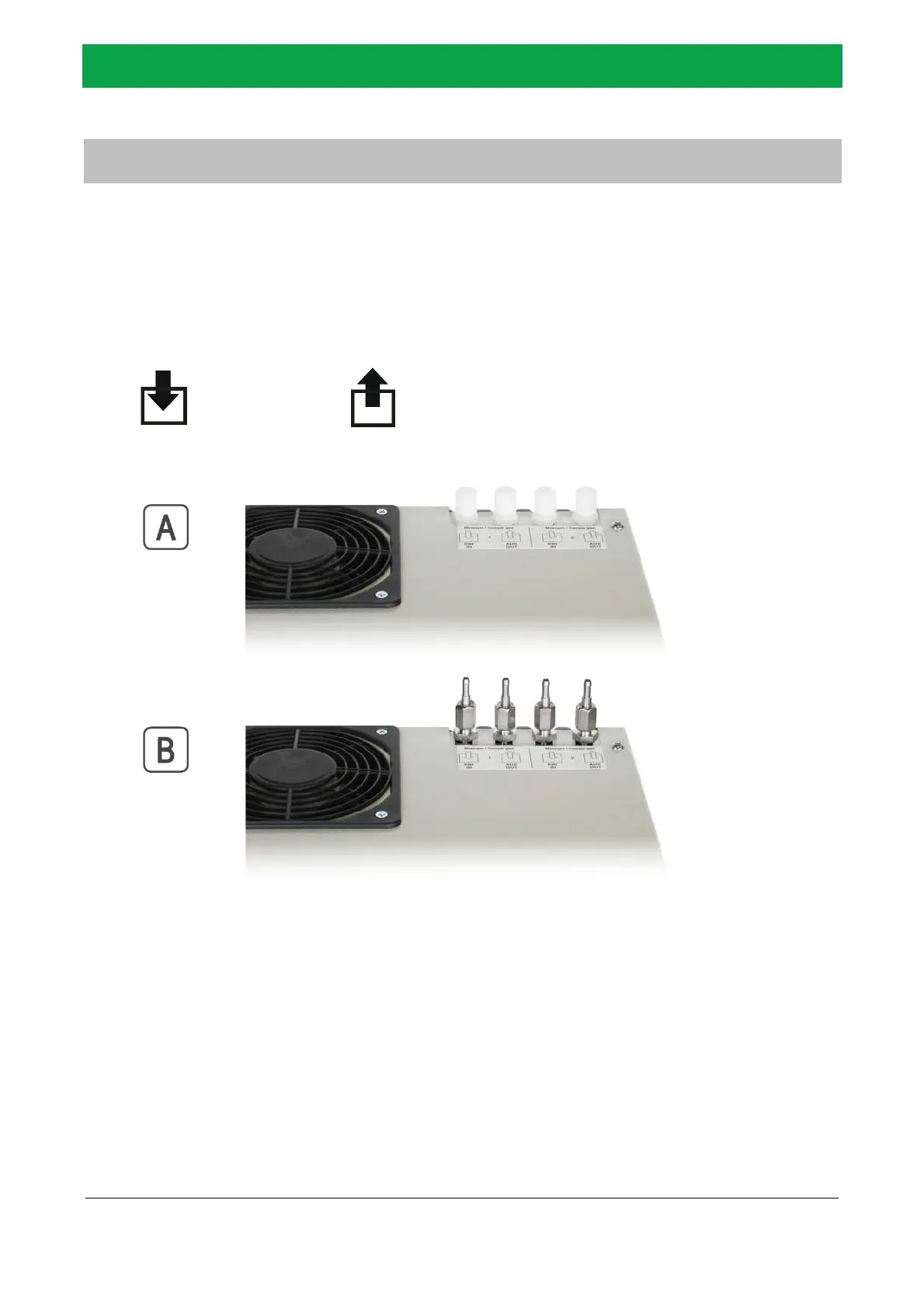

As a standard the media connections are designed as PVDF screwed joints for 6/4mm hose (drawing A).
Optionally they can be designed as stainless-steel bolt joints for 6/4mm hose (drawing B). Beyond that
several other connection variants are optionally available.
Marking
Gas inlet
Marking
Gas outlet
