3. Dimensions

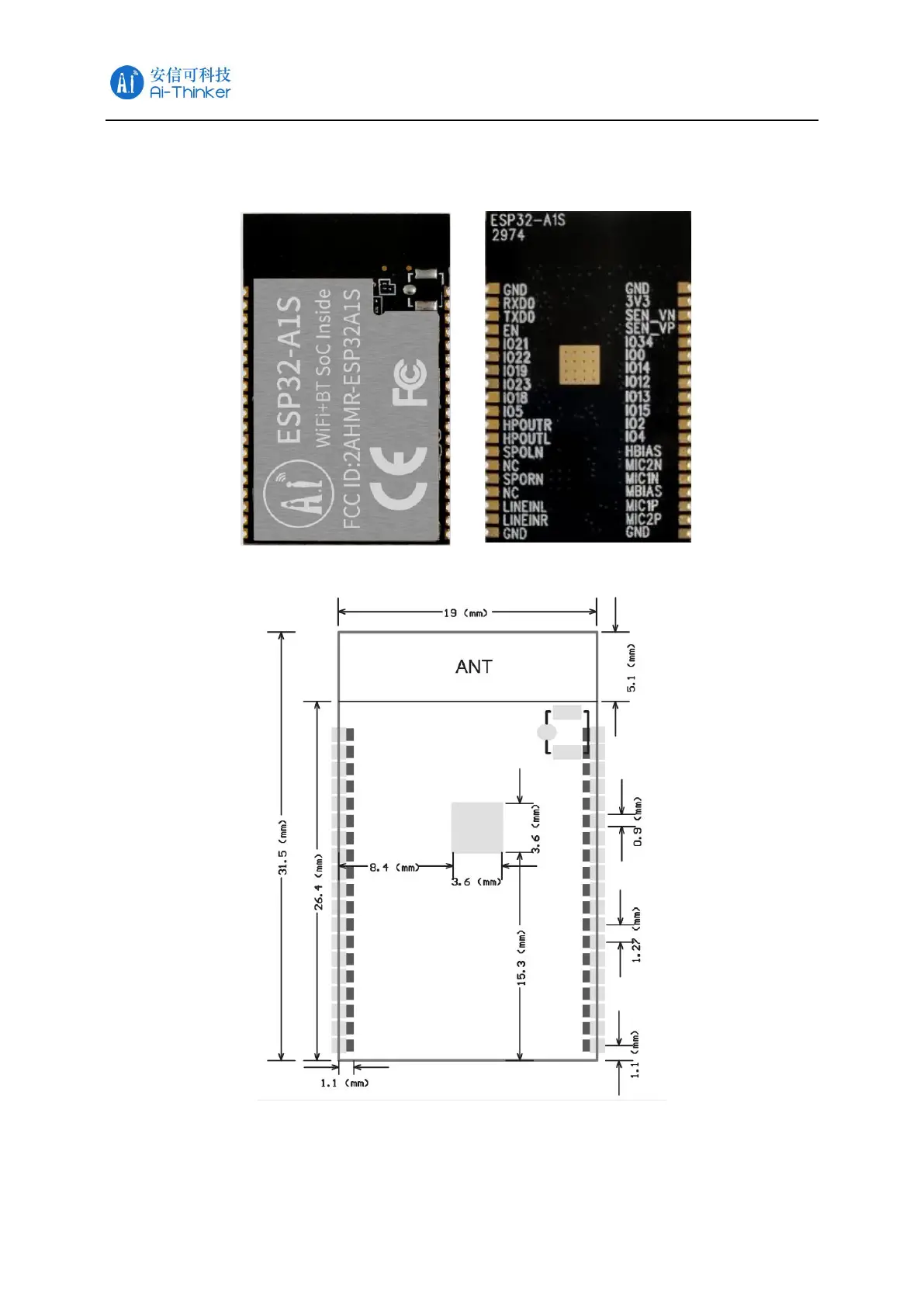

Figure 3 Module appearance diagram (rendered diagram is for reference only, the
actual product shall prevail)
Figure 4 Module size chart
