Ai-Thinker ESP32-A1S - Page 15

ESP32-A1S Specification V2.3
Copyright © 2021 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
Page 15 of 20

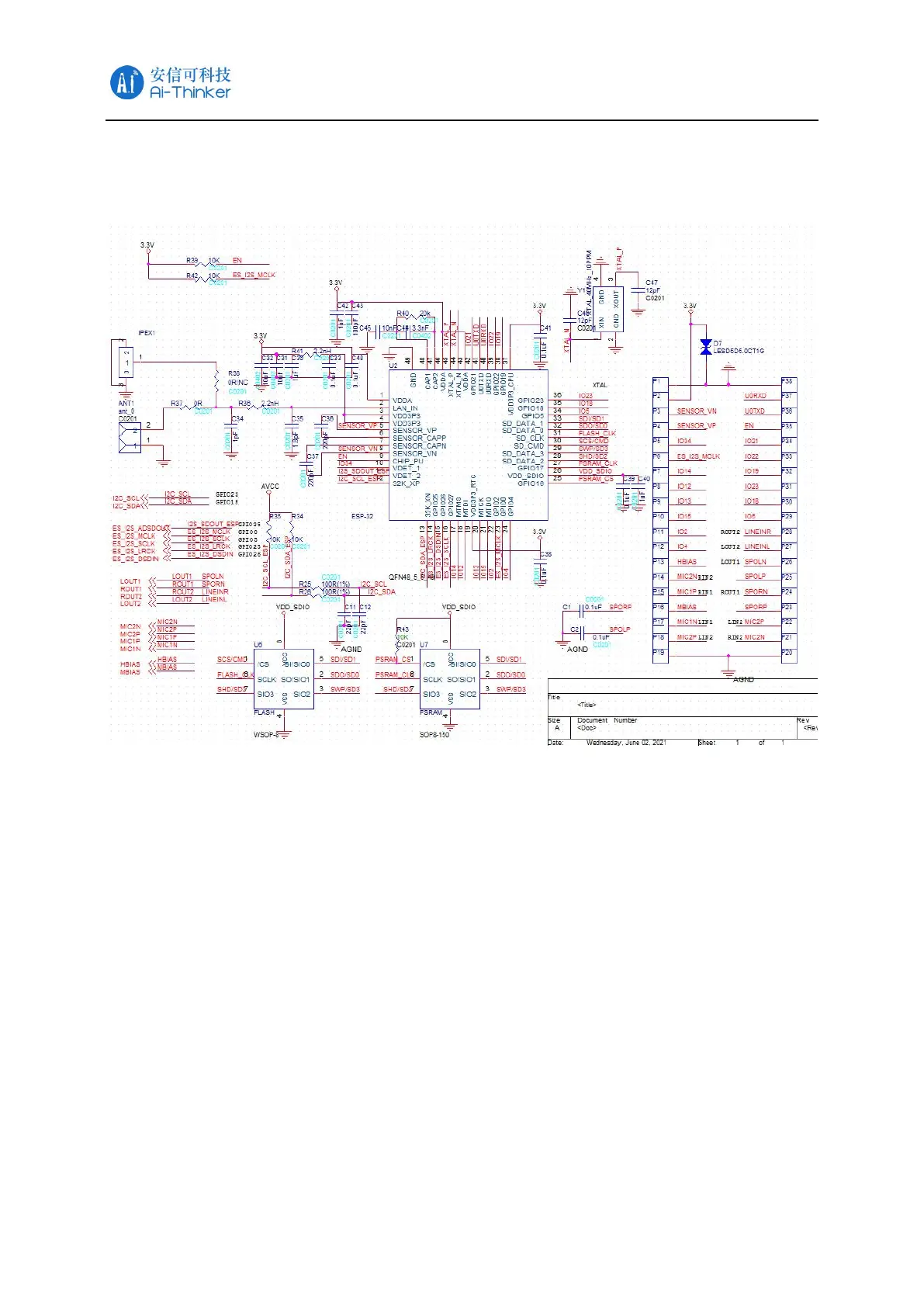

Figure 6 Audio part schematic
Figure 7 Schematic diagram of the main chip
