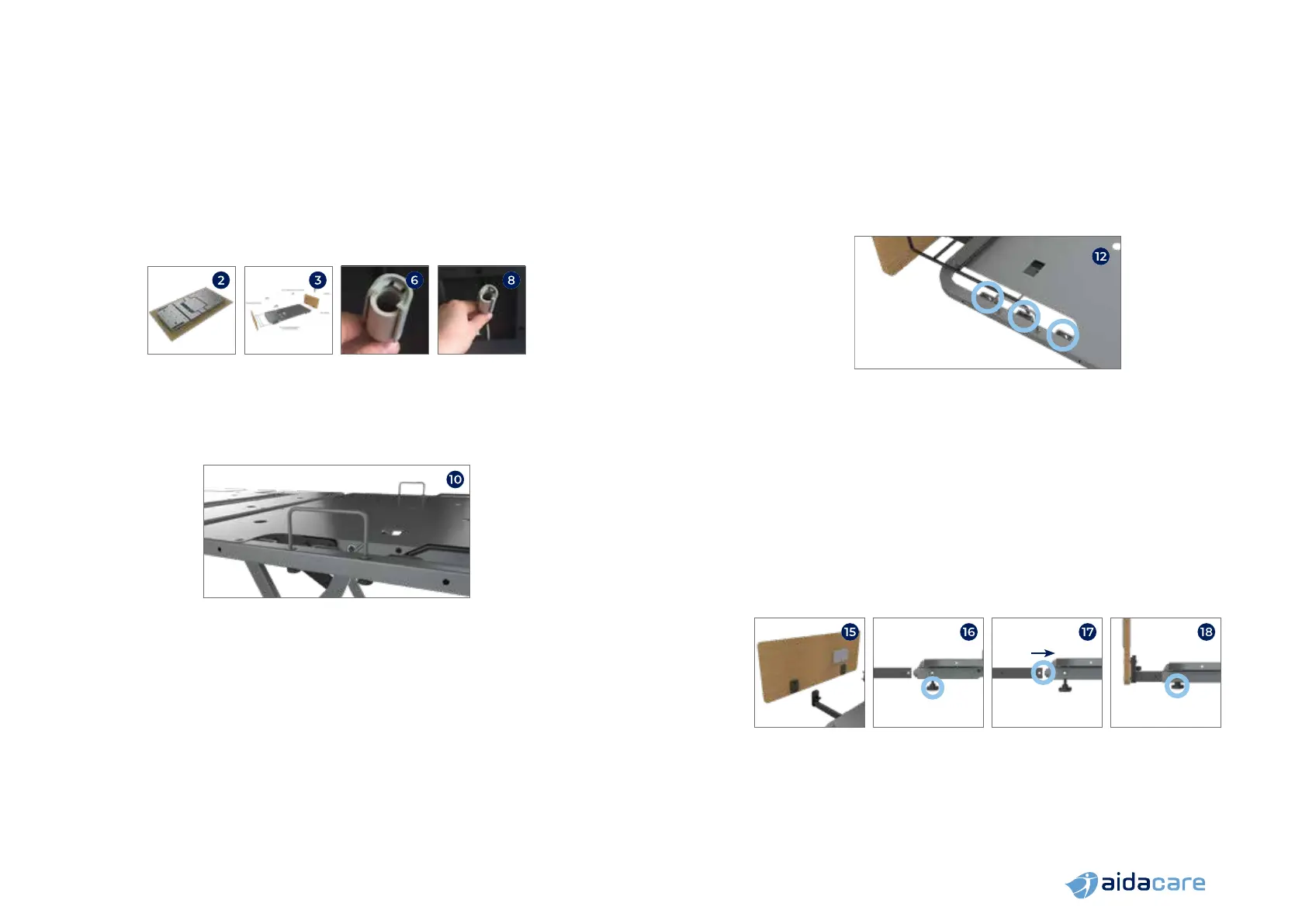

Mount Adjustable Mattress Retainer (Foot End):
11. Unpack the Adjustable Mattress Retainer
12. Hold vertically and insert flat ends into 1 of the 3 receiving keyhole mounts
which are 100mm spaced at the foot end of the mattress platform to match
the desired bed extension (nil, 100mm, 200mm). Lower the retainer to the
mattress platform. It will now be locked in place at the mount keyholes
Mount Head and Foot Board Holders:
13. The LONG pair goes at the FOOT end
14. The SHORT pair goes at the HEAD end
15. Ensure the mounting bracket end of each Holder is facing inwards.
16. Loosen the hand wheel on the inside of the bed frame which are located on
both the left and right sides of the bed, at the foot and head ends of the bed
17. Each Holder shaft has pre-stamped locator points, insert the shaft into the
bed frame until you feel or hear a click – which is the bed frame lining up
with the shaft locator point
18. Fasten each Holder at the locator points by tightening the hand wheel on the
bed frame. This ensures greater stability and rigidity of the Head & Foot Boards
6. Plug the handset into the ACP port, wait 5 seconds. To locate the ACP port,
tilt up the mattress platform foot section
7. Ensure the bed is free of encumbrance or obstacles – press the hi/lo up/down
button on the handset and raise the bed to an appropriate height (600 to
700mm recommended) so as to fit Mattress Retainers, Head & Foot Board
Holders and Wall Buffer
8. Unplug handset from ACP port, plug into 1 of 2 handset port options located
at left or right side, mid bed
Mount Mattress Retainers:
9. Unpack the set of Mattress Retainers and hardware
10. Insert vertically through holes on the Mattress Platform sides.
Fasten firmly with hand from beneath
