Aim MyChron 4 - MyChron 4 Dimensions and Specifications; MyChron 4 Connector Pinouts; General Technical Specifications; Other Device Characteristics

Technical Documentation - Datasheet MyChron 4 – Version 1.00
4

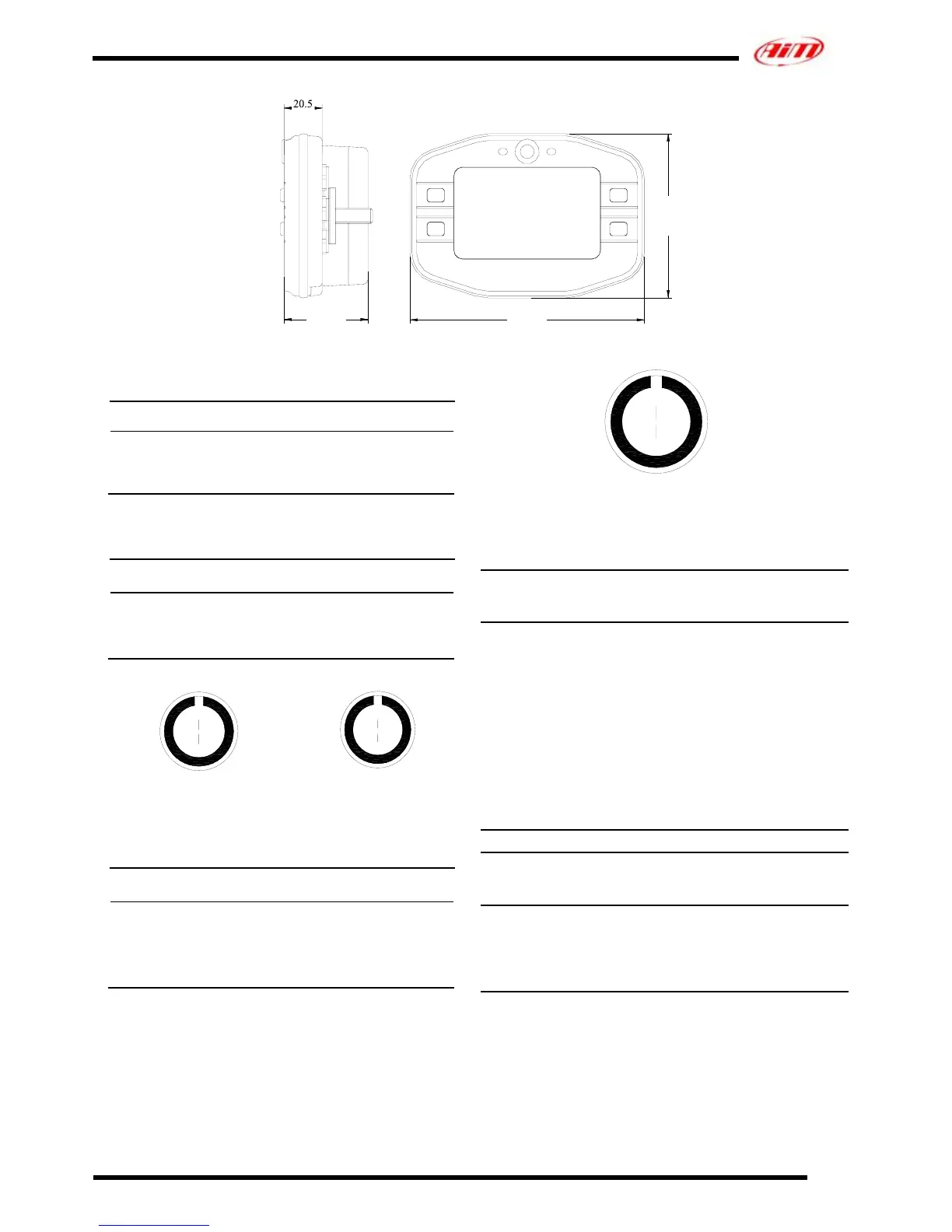

Dimensions
87.7
[3.45]
125.7
[4.95]
[0.81]
45
[1.77]
Dimensions in millimetres [inches]
Connector Detail (Lap)
Pin Function Pin Function
1 Magnetic Lap 3 V battery
2 GND 4 Optic Lap
Connector Detail (Temperature)
Pin Function Pin Function
1 Thermocouple 3 Thermoresistor
2 GND
Female Binder connector pinout (external
view): 4 pins (left) and 3 pins (right)
Connector Detail (Exp/Pc*)
Pin Function Pin Function
1 Can 0+ 4 Can 0-
2 GND 5 Ext. Battery
3 +VB
* CAN Connector for external expansion modules
Specifications
General
Characteristics
Value
Input Channels 3 (Lap, RPM, Temp.)
Int. power One 9 V battery
Ext. Power 9-14,5 V
Working Time About 200 hours int. power
Internal Memory 1 Mb
E-box Interface CAN
Data-key Interface CAN
PC Interface Porta USB
Sampling Freq. 10 Hz
Other
characteristics
Value
Weight 293 g (batteria inclusa)
Display dimensions 78 x 43 mm
Impermeability IP 65
5 pins female Binder connector pinout
(external view)
1
5
2
4
3
4
1
3
2
3 1
2
