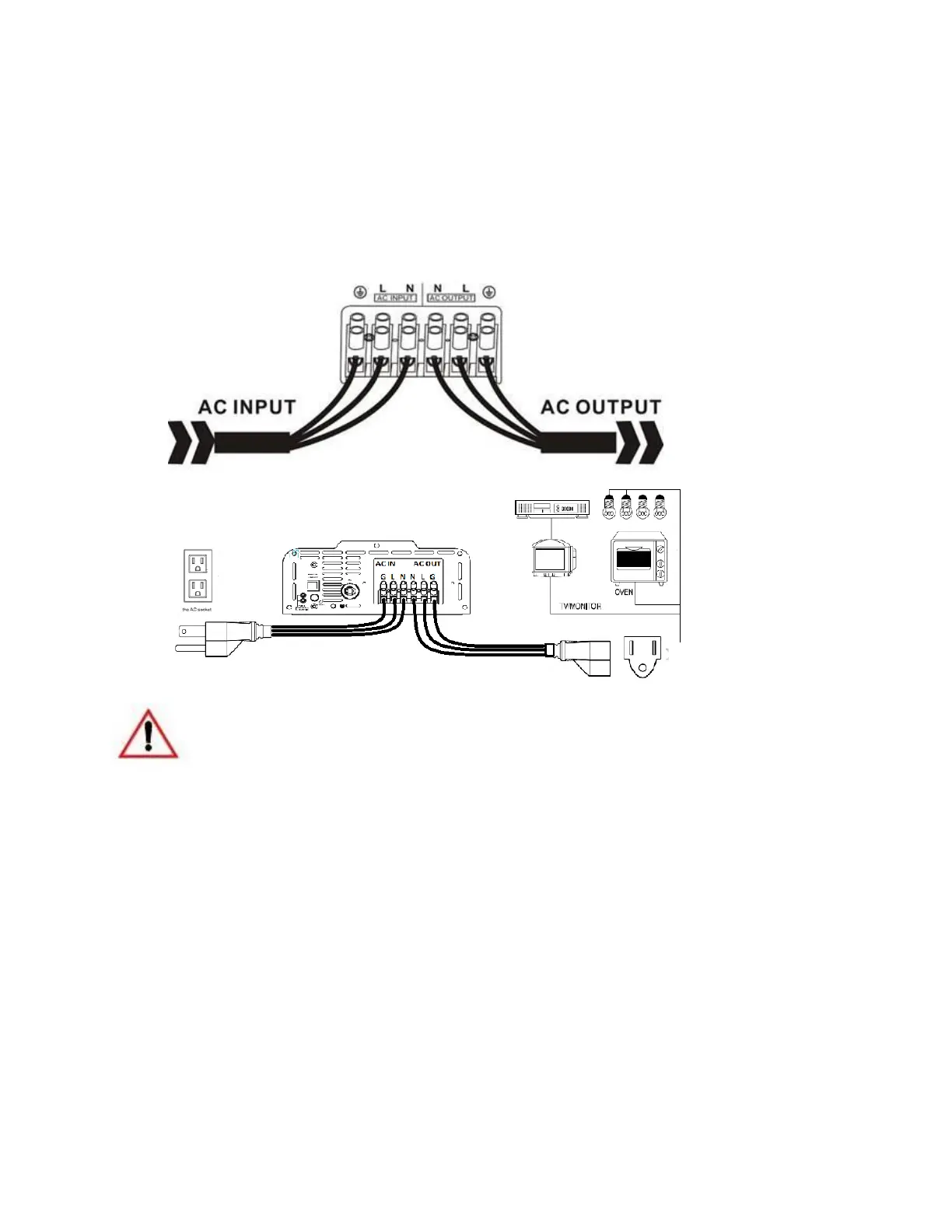

3. Hardwire Connection – AC Wiring. Use 12 AWG wire.
Input: Hot line + Neutral + Ground
Output: Hot line + Neutral + Ground
Green – ground
White – neutral
Black - hot
WARNING
The output voltage of this unit must never be connected in its input AC terminal, overload or
damage may result. Always press power button to ON position before plugging in any
appliance.
G. USING THE POWER INVERTER
1. Check the output voltage and capacity of the battery. The battery (s) should
match the voltage of the inverter and have enough capacity for the load. See
Section E for more information.
