Aiphone GT-1M3 Quick Start Installation Guide

5

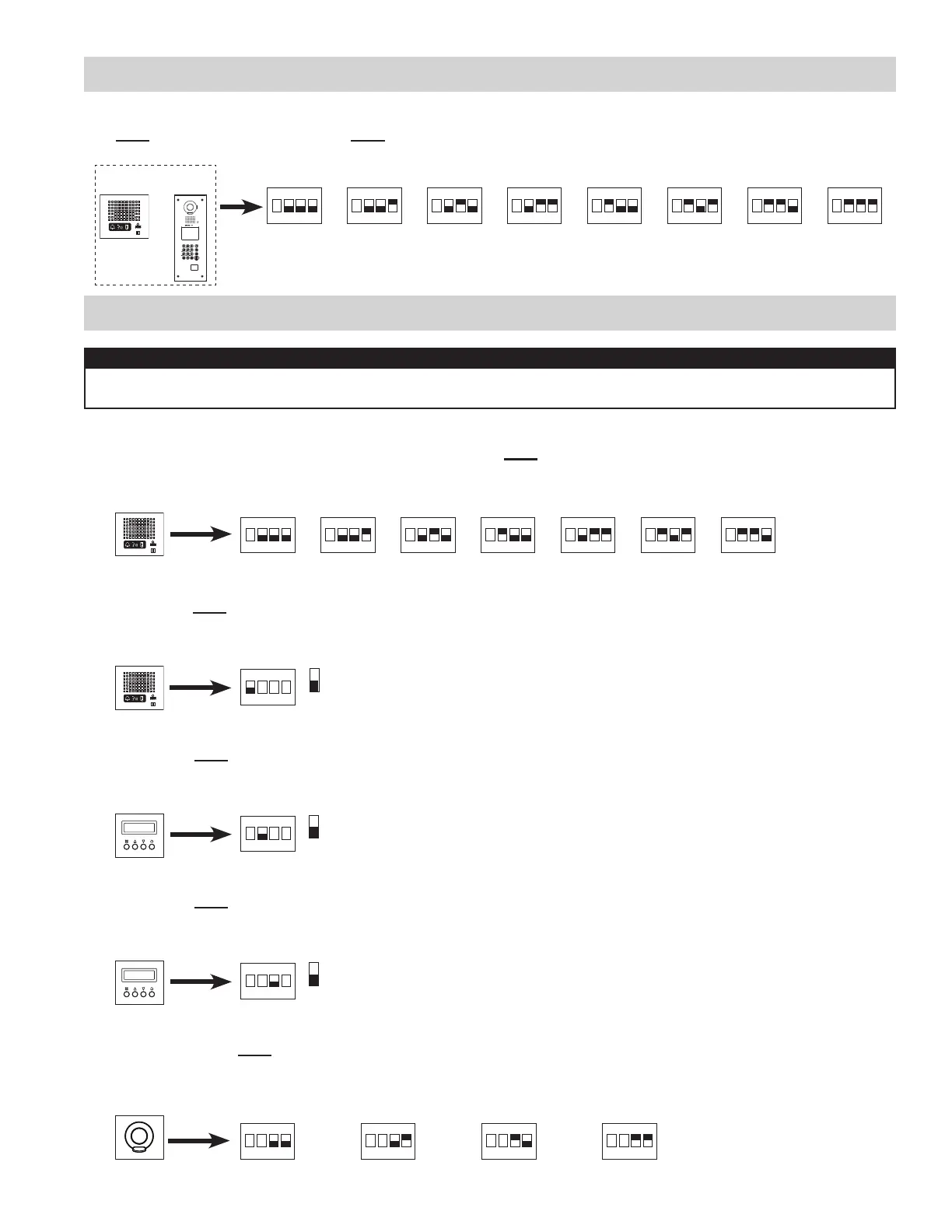

DIP SWITCH SETTINGS: ENTRANCE STATION (REQUIRED)
DIP SWITCH SETTINGS: ENTRANCE STATION (OPTIONAL)
Entrance ID Setting:
Use SW2 on the GT-DA(-L) module or SW1 on the GT-DM(V)A entrance station to set the ID settings for each entry
panel. Only switches 2, 3, & 4 are used for this setting.
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
#1 #5#3 #7#2 #6#4 #8
GT-DA-L
GT-DA
GT-DMVA
GT-DMA
Message Setting:
Use switch 3 of SW1 on the GT-NS(-V) module to select between greeting message or operation message on the
display. Initial setting is “Greeting Message.”
ON
123
4
GT-NS-V
GT-NS
3
Operation Message
Greeting Message
NOTE:
When using the GT-DM(V)A, the settings listed below will be done via the 10 key / display while in programming
mode. Refer to the GT Series Installation Manual (pages 43 - 49) for set-up instructions.
Room Number Display:
Use switch 2 of SW1 on the GT-NS(-V) module to choose between displaying only resident name or displaying room
number also. Initial setting is “Display room number also.”
ON
123
4
GT-NS-V
GT-NS
2
Display only resident name
Display room number also
Entrance Monitor Setting:
Use switch 1 of SW2 on the GT-DA(-L) module to enable / disable entrance monitoring. Initial setting is “Monitoring not
possible.” Enabling will allow residences (video residences only) to monitor the entrance area.
ON
123
4
1
Monitoring possible
Monitoring not possible
GT-DA-L
GT-DA
Call Screen Setting:
Use switches 3 & 4 of SW1 on the GT-VAA module to set the camera view. The initial setting is Zoom.
Zoom 3s>>Wide: Image starts zoomed and after 3 seconds goes wide.
Wide 3s>>Zoom: Image starts wide and after 3 seconds zooms.
GT-VAA
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ZOOM WIDE ZOOM 3s>>WIDE WIDE 3s>>ZOOM
(initial setting)
Guidance Language Selection:
The guidance is set to off (No Guidance) when shipped. Use SW3 on the GT-DA(-L) module to set the appropriate
language. Only switches 2, 3, & 4 are used for this setting.
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
No Guidance English German DutchFrench Spanish Italian
GT-DA-L
GT-DA
(initial setting)

Aiphone GT-1M3 Specifications

General

Mounting	Wall mount
Communication	Hands-free
Housing Material	ABS plastic
Audio Output	Built-in speaker
Audio Input	Built-in microphone
Call Signal	Electronic chime
Wiring	2-wire
Operating Temperature	-10°C to +50°C
Operating Voltage	24V DC
