Aiphone LEF Series Instructions

(
2
)

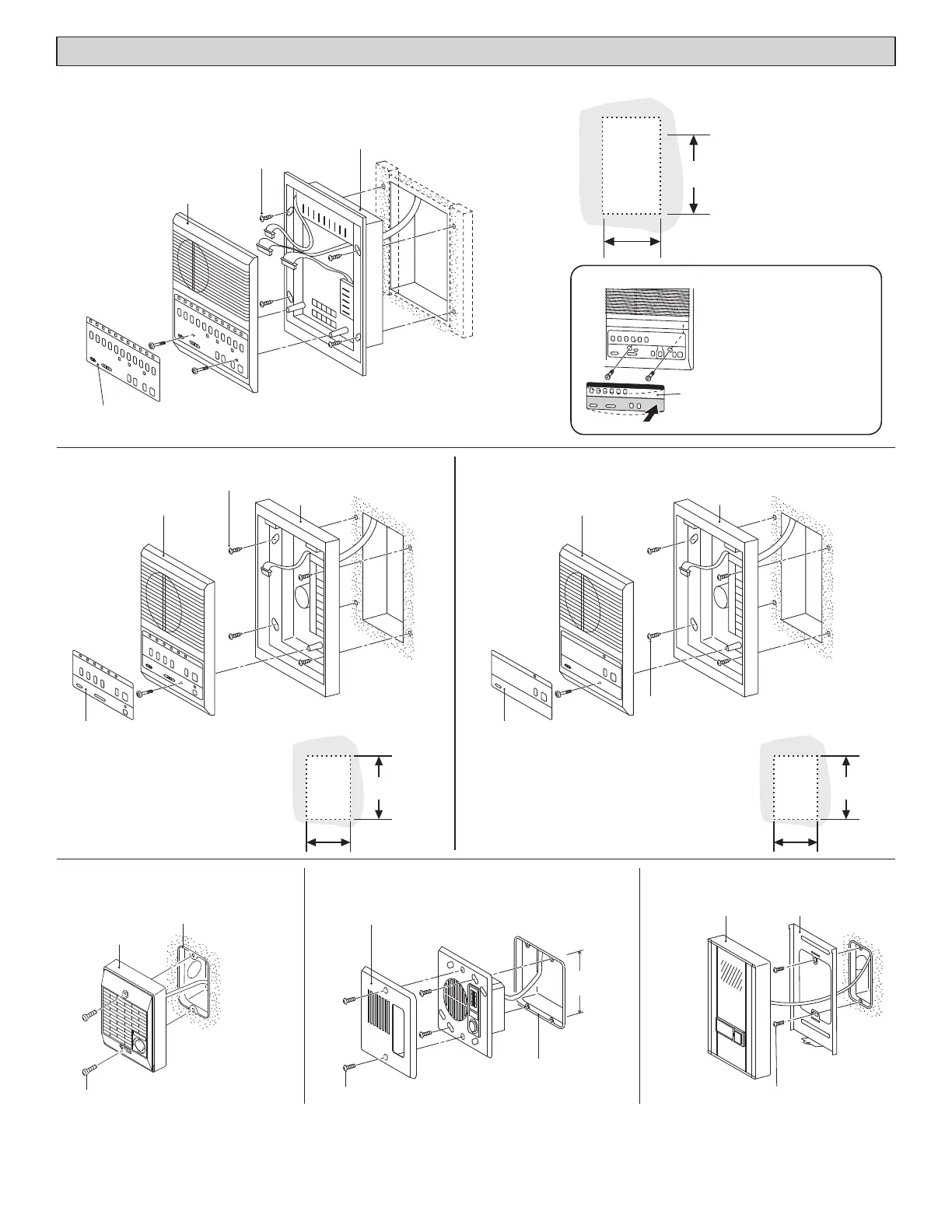

Mounting instructions
LEF-5C or LEF-10C
LEF-3C or LEF-1C
LE-D LE-DA
LE-B or LE-BN
CUT-OUT HOLE DIMENSIONS
CUT-OUT HOLE
DIMENSIONS
To remove the operation
plate, push either left or
right side of the plate.
Cut out a hole in the wall;
H: 8-1/8" x W: 5-3/4"(206 x
146mm), securing a space
of 1/8" (3mm) on the left
and right sides.
Cut out a hole in the wall;
H: 6-1/8" x W: 3-3/4"
(155 x 96mm), securing a
space of 1/8" (3mm) on each
left and right side.
8-1/8"
(206)
5-3/4"
(146)
OPERATION PLATE
Be sure to peel off clear
protection film.
FRONT CASE
WOOD SCREW(4)
CHASSIS
FRONT CASE
WOOD SCREW(4)
CHASSIS
WALL
OPERATION PLATE
Be sure to peel off clear protection film.
6-1/8"
(155)
3-3/4"
(96)
CUT-OUT HOLE
DIMENSIONS
Cut out a hole in the wall;
H: 6-1/8" x W: 3-3/4"
(155 x 96mm), securing a
space of 1/8" (3mm) on
each left and right side.
OPERATION PLATE
Be sure to peel off clear
protection film.
FRONT CASE
WOOD SCREW(4)
OPERATION PLATE
PUSH
CHASSIS
6-1/8"
(155)
3-3/4"
(96)
LE-D UNIT
STAINLESS COVER
SCREW (2)
MAIN UNIT
2-GANG BOX
SINGLE-GANG BOX
SCREW (2)
SCREW (2)
83.5mm
(3-5/16")
LE-DL
LE-DL UNIT
MOUNTING
BRACKET
- 5 -

Aiphone LEF Series Specifications

General

Material	ABS Plastic
Color	White
Audio Frequency Response	300Hz - 3.4kHz
Wiring	2-wire
Door Release	Yes
