Aiphone LEF Series Installation Manual

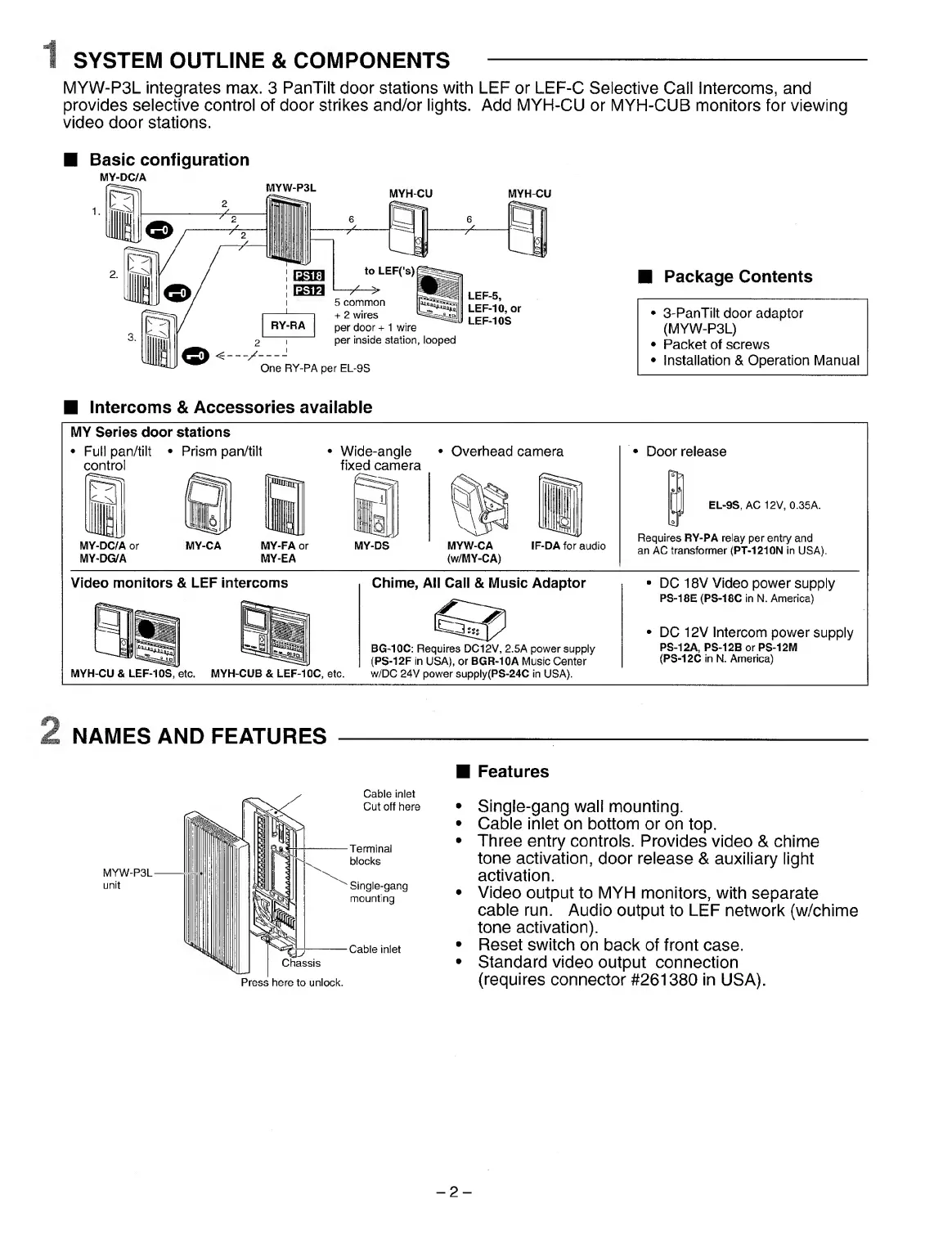

1 SYSTEM OUTLINE & COMPONENTS -
MYW-P3L integrates max. 3 PanTilt door stations with LEF or LEF-C Selective Call Intercoms, and
provides selective control of door strikes and/or lights. Add MYH-CU or MYH-CUB monitors for viewing
video door stations.
■ Basic configuration
MY-DC/A
■ Package Contents
• 3-PanTilt door adaptor
(MYW-P3L)
• Packet of screws
• Installation & Operation Manual
■ Intercoms & Accessories available
MY Series door stations
• Full pan/tilt • Prism pan/tilt
control
MY-DC/A or MY-CA
MY-DG/A
Wide-angle
fixed camera
MY-FA or MY-DS
MY-EA
Overhead camera
MYW-CA IF-DA for audio
(w/MY-CA)
Door release
Requires RY-PA relay per entry and
an AC transformer (PT-1210N in USA).
EL-9S, AC 12V, 0.35A.
Video monitors & LEF intercoms
MYH-CUB & LEF-10C, etc.
Chime, All Call & Music Adaptor
BG-10C: Requires DC12V, 2.5A power supply
(PS-12F in USA), or BGR-10A Music Center
w/DC 24V power supply{PS-24C in USA).
DC 18V Video power supply
PS-18E (PS-18C in N. America)
DC 12V Intercom power supply
PS-12A, PS-12B or PS-12M
(PS-12C in N. America)
2 NAMES AND FEATURES
■ Features
• Single-gang wall mounting.
• Cable inlet on bottom or on top.
• Three entry controls. Provides video & chime
tone activation, door release & auxiliary light
activation.
• Video output to MYH monitors, with separate
cable run. Audio output to LEF network (w/chime
tone activation).
• Reset switch on back of front case.
• Standard video output connection
(requires connector #261380 in USA).
2

Aiphone LEF Series Specifications

General

Material	ABS Plastic
Color	White
Audio Frequency Response	300Hz - 3.4kHz
Wiring	2-wire
Door Release	Yes
