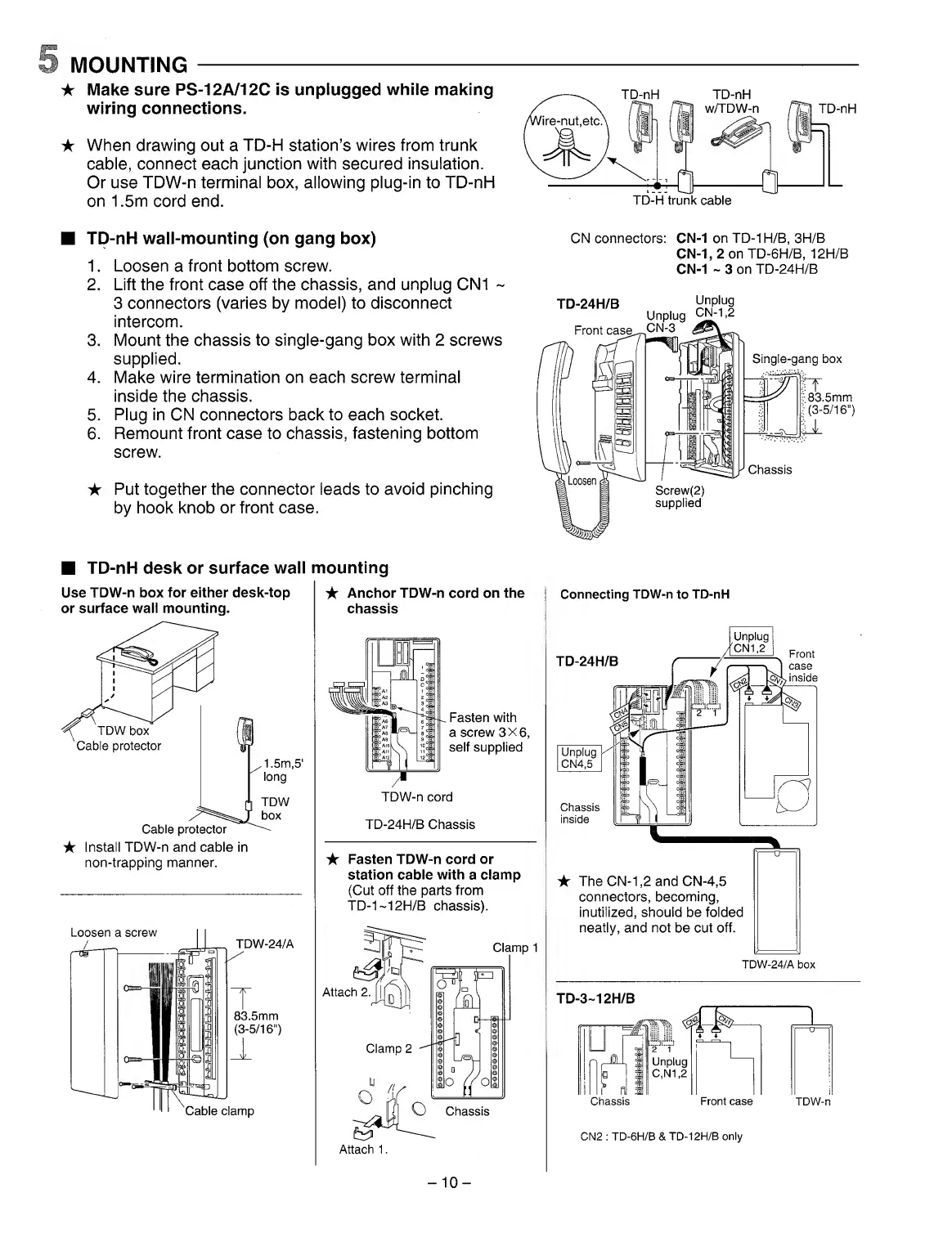

MOUNTING-
'k Make sure PS-12A/12C is unplugged while making
wiring connections.
★ When drawing out a TD-H station’s wires from trunk
cable, connect each junction with secured insulation.
Or use TDW-n terminal box, allowing plug-in to TD-nH
on 1.5m cord end.
■ TD-nH wall-mounting (on gang box)
1. Loosen a front bottom screw.
2. Lift the front case off the chassis, and unplug CN1 ~
3 connectors (varies by model) to disconnect
intercom.
3. Mount the chassis to single-gang box with 2 screws
supplied.
4. Make wire termination on each screw terminal
inside the chassis.
5. Plug in CN connectors back to each socket.
6. Remount front case to chassis, fastening bottom
screw.
★ Put together the connector leads to avoid pinching
by hook knob or front case.
■ TD-nH desk or surface wall mounting
CN connectors: CN-1 on TD-1H/B, 3H/B
CN-1,2on TD-6H/B, 12H/B
CN-1 ~ 3 on TD-24H/B
- 1 0 -
