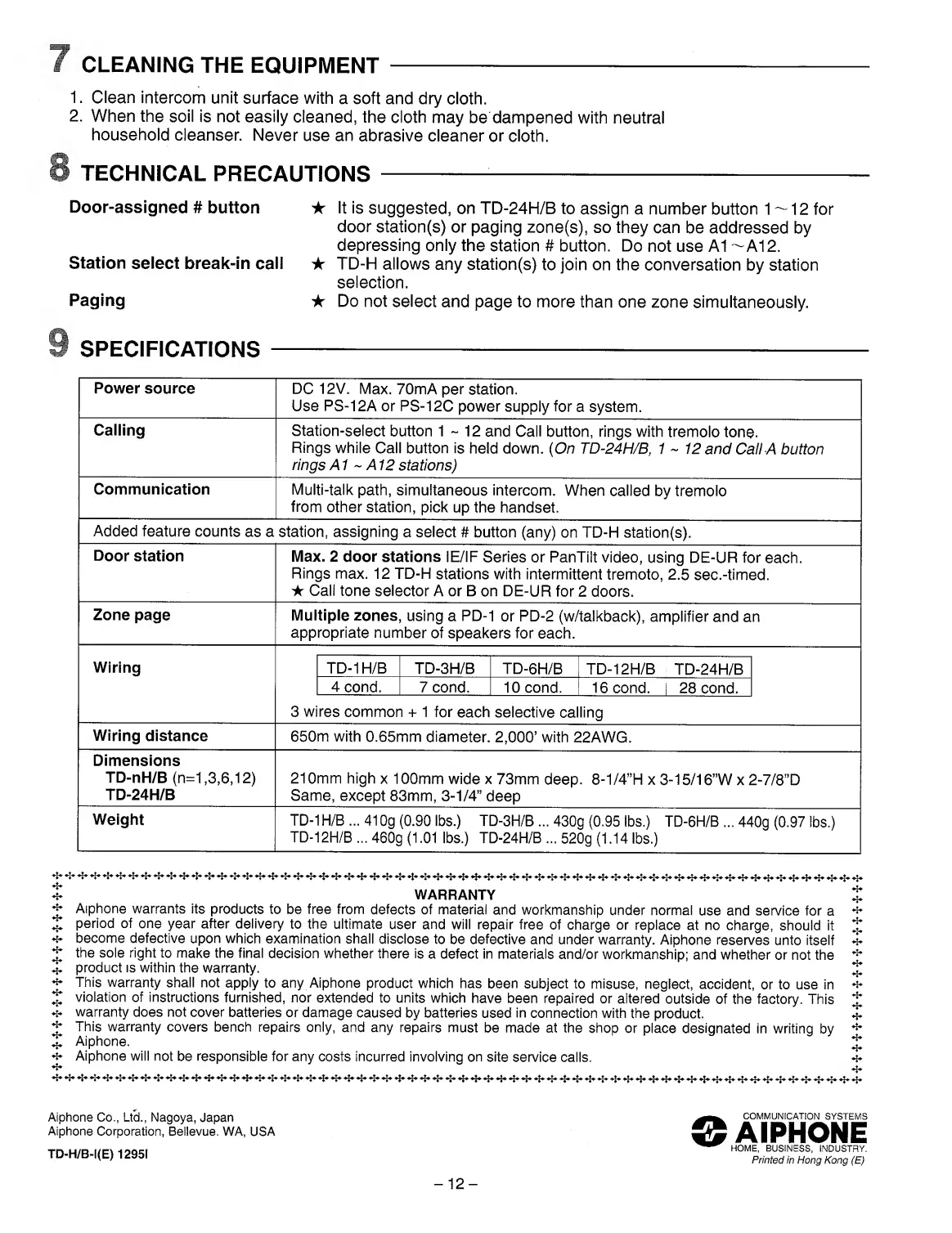

f CLEANING THE EQUIPMENT -
1. Clean intercom unit surface with a soft and dry cloth.
2. When the soil is not easily cleaned, the cloth may be dampened with neutral
household cleanser. Never use an abrasive cleaner or cloth.
8 TECHNICAL PRECAUTIONS --
Door-assigned # button ★ It is suggested, on TD-24H/B to assign a number button 1 ~ 12 for
door station(s) or paging zone(s), so they can be addressed by
depressing only the station # button. Do not use A1 ~A12.
Station seiect break-in call ★ TD-H allows any station(s) to join on the conversation by station
selection.
Paging ★ Do not select and page to more than one zone simultaneously.
9 SPECIFICATIONS -
Power source
DC 12V. Max. 70mA per station.
Use PS-12A or PS-12C power supply for a system.
Calling
Station-select button 1 ~ 12 and Call button, rings with tremolo tone.
Rings while Call button is held down. (On TD-24H/B, 1 ~ 12 and Call A button
rings A1 ~ A12 stations)
Communication
Multi-talk path, simultaneous intercom. When called by tremolo
from other station, pick up the handset.
Added feature counts as a station, assigning a select # button (any) on TD-H station(s).
Door station
Max. 2 door stations lE/IF Series or PanTilt video, using DE-UR for each.
Rings max. 12 TD-H stations with intermittent tremoto, 2.5 sec.-timed.
★ Cali tone selector A or B on DE-UR for 2 doors.
Zone page
Multiple zones, using a PD-1 or PD-2 (w/talkback), amplifier and an
appropriate number of speakers for each.
Wiring
TD-1H/B TD-3H/B TD-6H/B TD-12H/B TD-24H/B
4cond. 7 cond. lOcond. 16cond. i 28 cond.
3 wires common + 1 for each selective calling
Wiring distance
650m with 0.65mm diameter. 2,000’ with 22AWG.
Dimensions
TD-nH/B (n=1,3,6,12)
TD-24H/B
210mm high x 100mm wide x 73mm deep. 8-1/4”H x 3-15/16”W x 2-7/8”D
Same, except 83mm, 3-1/4” deep
Weight
TD-1H/B... 410g(0.90lbs.) TD-3H/B ... 430g (0.95 lbs.) TD-6H/B ... 440g (0.97 lbs.)
TD-12H/B ... 460g (1.01 lbs.) TD-24H/B ... 520g (1.14 lbs.)
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a
period of one year after delivery to the ultimate user and will repair free of charge or replace at no charge, should it
become defective upon which examination shall disclose to be defective and under warranty. Aiphone reserves unto itself
the sole right to make the final decision whether there is a defect in materials and/or workmanship; and whether or not the
product IS within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in
violation of instructions furnished, nor extended to units which have been repaired or altered outside of the factory. This
warranty does not cover batteries or damage caused by batteries used in connection with the product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by
Aiphone.
Aiphone will not be responsible for any costs incurred involving on site service calls.
Aiphone Co., Ltd., Nagoya, Japan
Aiphone Corporation, Bellevue. WA, USA
TD-H/B-I(E) 12951
COMMUNICATION SYSTEMS
AIPHONE
HOME, BUSINESS, INDUSTRY.
Printed in Hong Kong (E)
- 1 2 -
^
^
^
^
^
«!».
«|
