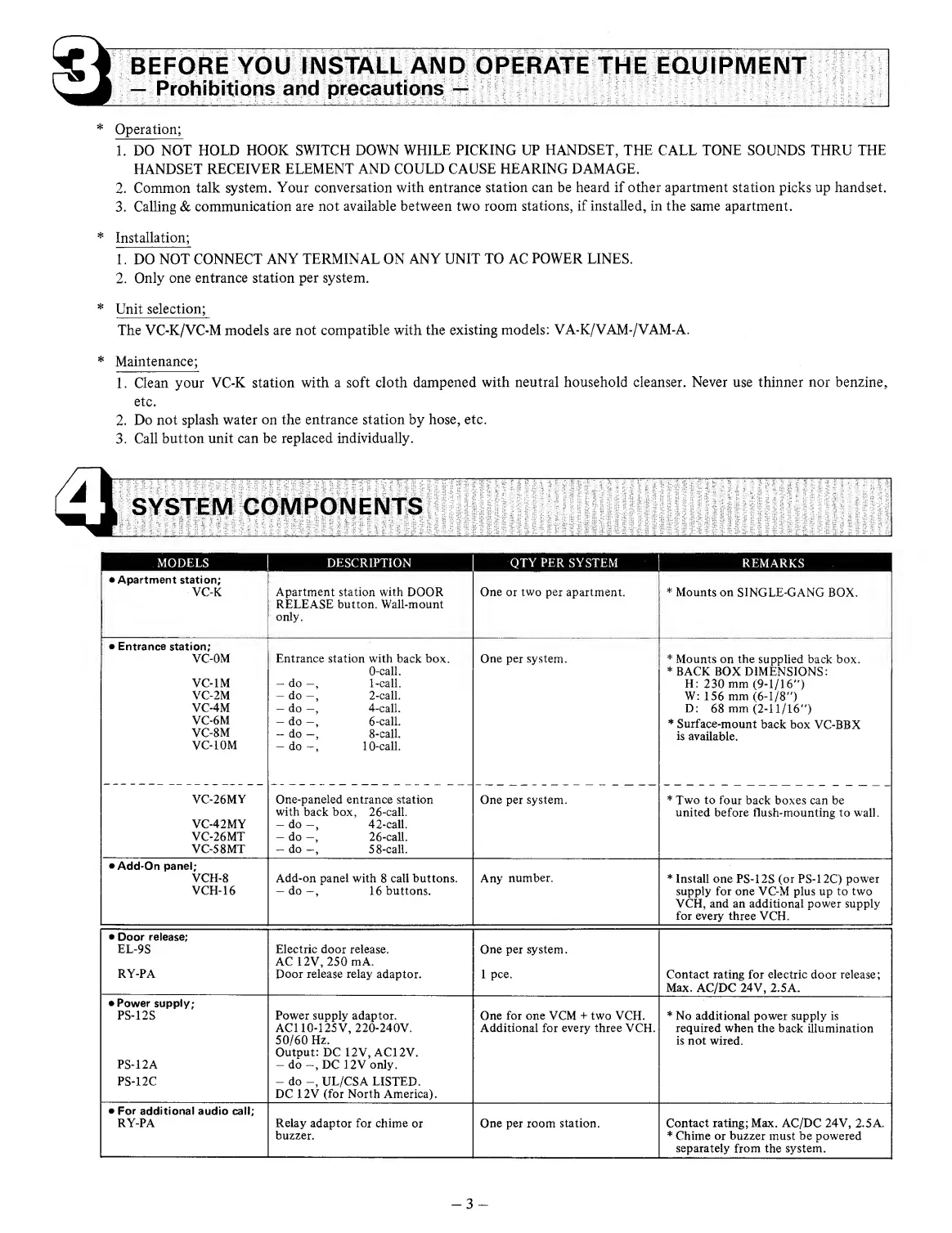

BEFORE YOU INSTALL AND OPERATE THE EQUIPMENT
— Prohibitions and precautions —
* Operation;
1. DO NOT HOLD HOOK SWITCH DOWN WHILE PICKING UP HANDSET, THE CALL TONE SOUNDS THRU THE
HANDSET RECEIVER ELEMENT AND COULD CAUSE HEARING DAMAGE.
2. Common talk system. Your conversation with entrance station can be heard if other apartment station picks up handset.
3. Calling Sc communication are not available between two room stations, if installed, in the same apartment.
* Installation;
1. DO NOT CONNECT ANY TERMINAL ON ANY UNIT TO AC POWER LINES.
2. Only one entrance station per system.
* Unit selection;
The VC-K/VC-M models are not compatible with the existing models: VA-K/VAM-/VAM-A.
* Maintenance;
1. Clean your VC-K station with a soft cloth dampened with neutral household cleanser. Never use thinner nor benzine,
etc.
2. Do not splash water on the entrance station by hose, etc.
3. Call button unit can be replaced individually.
SYSTEM COMPONENTS
MODELS !
DESCRIPTION QTY PER SYSTEM
REMARKS
• Apartment station;
VC-K
Apartment station with DOOR
RELEASE button. Wall-mount
only.
One or two per apartment.
* Mounts on SINGLE-GANG BOX.
• Entrance station;
VC-OM
VC-1M
VC-2M
VC-4M
VC-6M
VC-8M
VC-IOM
Entrance station with back box.
0-call.
- do 1-call.
- do —, 2-call.
- do 4-call.
- do 6-call.
- do -, 8-call.
- do -, 10-call.
One per system.
* Mounts on the supplied back box.
* BACK BOX DIMENSIONS:
H: 230 mm (9-1/16")
W: 156 mm (6-1/8")
D: 68 mm (2-11/16")
* Surface-mount back box VC-BBX
is available.
VC-26MY
VC-42MY
VC-26MT
VC-58MT
One-paneled entrance station
with back box, 26-call.
- do 42-call.
- do 26-call.
- do 58-call.
One per system.
* Two to four back boxes can be
united before flush-mounting to wall.
• Add-On panel;
VCH-8
VCH-16
Add-on panel with 8 call buttons,
-do-, 16 buttons.
Any number.
* Install one PS-12S (or PS-12C) power
supply for one VC-M plus up to two
VCH, and an additional power supply
for every three VCH.
• Door release;
EL-9S
RY-PA
Electric door release.
AC 12V, 250 mA.
Door release relay adaptor.
One per system.
1 pee.
Contact rating for electric door release;
Max. AC/DC 24V, 2.5A.
• Power supply;
PS-12S
PS-12 A
Power supply adaptor.
AC110-125V, 220-240V.
50/60 Hz.
Output: DC 12V, AC12V.
-do-, DC 12V only.
One for one VCM + two VCH.
Additional for every three VCH.
* No additional power supply is
required when the back illumination
is not wired.
PS-12C do -, UL/CSA LISTED.
DC 12V (for North America).
• For additional audio call;
RY-PA
Relay adaptor for chime or
buzzer.
One per room station.
Contact rating; Max. AC/DC 24V, 2.5 A.
* Chime or buzzer must be powered
separately from the system.
— 3 —
