Aiphone VC-K User Manual

bdbdbdbdbdbdbwJbdbdbsl’

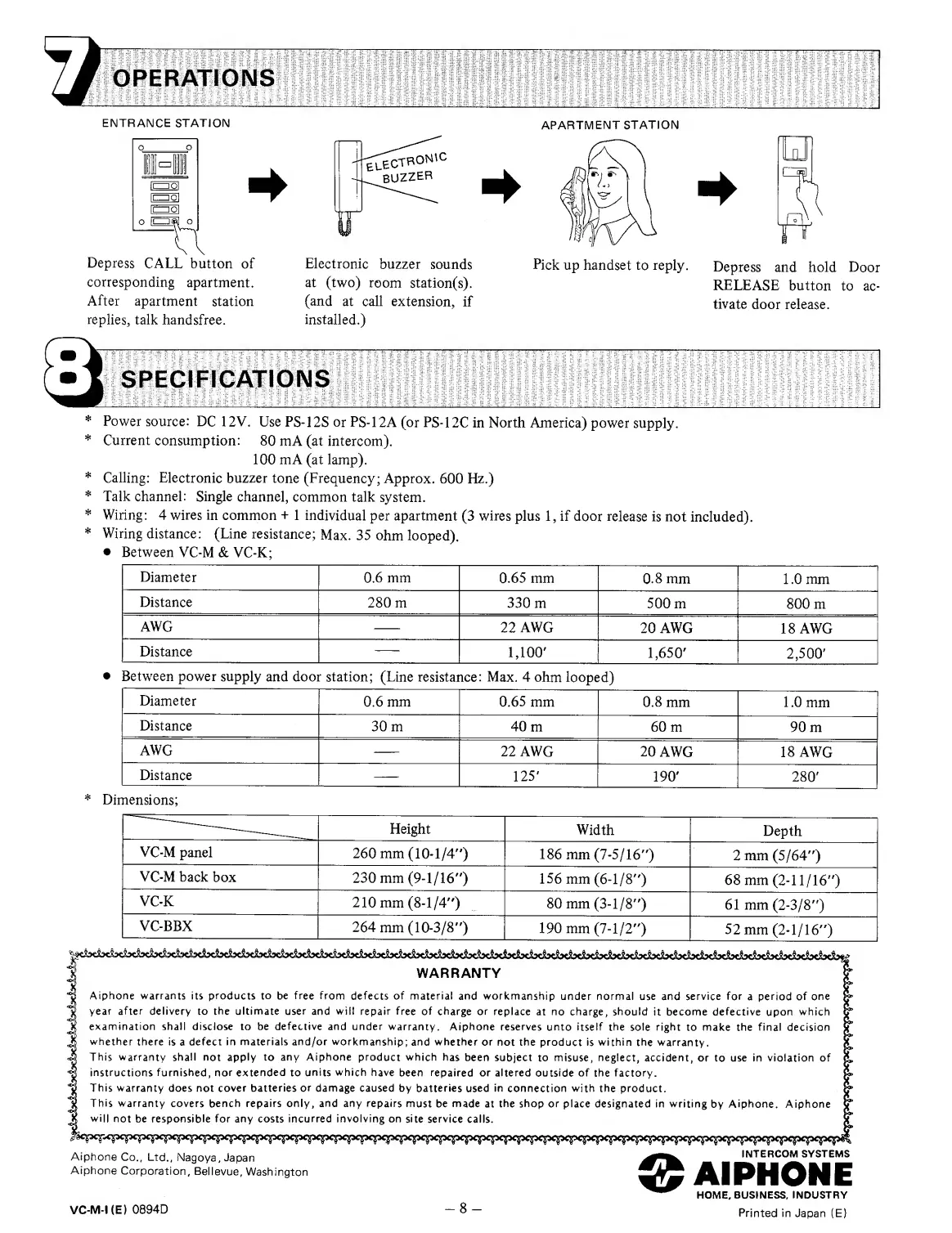

Depress CALL button of Electronic buzzer sounds Pick up handset to reply. Depress and hold Door
corresponding apartment. at (two) room station(s). RELEASE button to ac-
After apartment station (and at call extension, if tivate door release,
replies, talk handsfree. installed.)
* Power source: DC 12V. Use PS-12S or PS-12A (or PS-12C in North America) power supply.
* Current consumption: 80 mA (at intercom).
100 mA (at lamp).
* Calling: Electronic buzzer tone (Frequency; Approx. 600 Hz.)
* Talk channel: Single channel, common talk system.
* Wiring: 4 wires in common + 1 individual per apartment (3 wires plus 1, if door release is not included).
* Wiring distance: (Line resistance; Max. 35 ohm looped).
• Between VC-M & VC-K;
Diameter
0.6 mm
0.65 mm
0.8 mm
1.0 mm
Distance
280 m
—
330 m
500 m
800 m
AWG
22 AWG
20 AWG
18 AWG
Distance
—
1,100'
1,650'
2,500'
• Between power supply and door station; (Line resistance: Max. 4 ohm looped)
Diameter
0.6 mm
0.65 mm
0.8 mm
1.0 mm
Distance
30 m
40 m
60 m
90 m
AWG
—
22 AWG
20 AWG
18 AWG
Distance
—
125'
190'
280'
* Dimensions;
VC-M panel
Height
260 mm (10-1/4")
Width
186 mm (7-5/16")
Depth
2 mm (5/64")
VC-M back box
230 mm (9-1/16")
156 mm (6-1/8")
68 mm (2-11/16")
VC-K
210 mm (8-1/4")
80 mm (3-1/8")
61 mm (2-3/8")
VC-BBX
264 mm (10-3/8")
190 mm (7-1/2")
52 mm (2-1/16")
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one
year after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which
examination shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision
whether there is a defect in materials and/or workmanship; and whether or not the product is within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in violation of
instructions furnished, nor extended to units which have been repaired or altered outside of the factory.
This warranty does not cover batteries or damage caused by batteries used in connection with the product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone. Aiphone
will not be responsible for any costs incurred involving on site service calls.
Aiphone Co., Ltd., Nagoya, Japan
Aiphone Corporation, Bellevue, Washington
VC-M-ME) 0894D
INI cnCUM oYbI tMb
@ AIPHONE
HOME, BUSINESS, INDUSTRY
Printed in Japan (E)
