Arrival Checklist

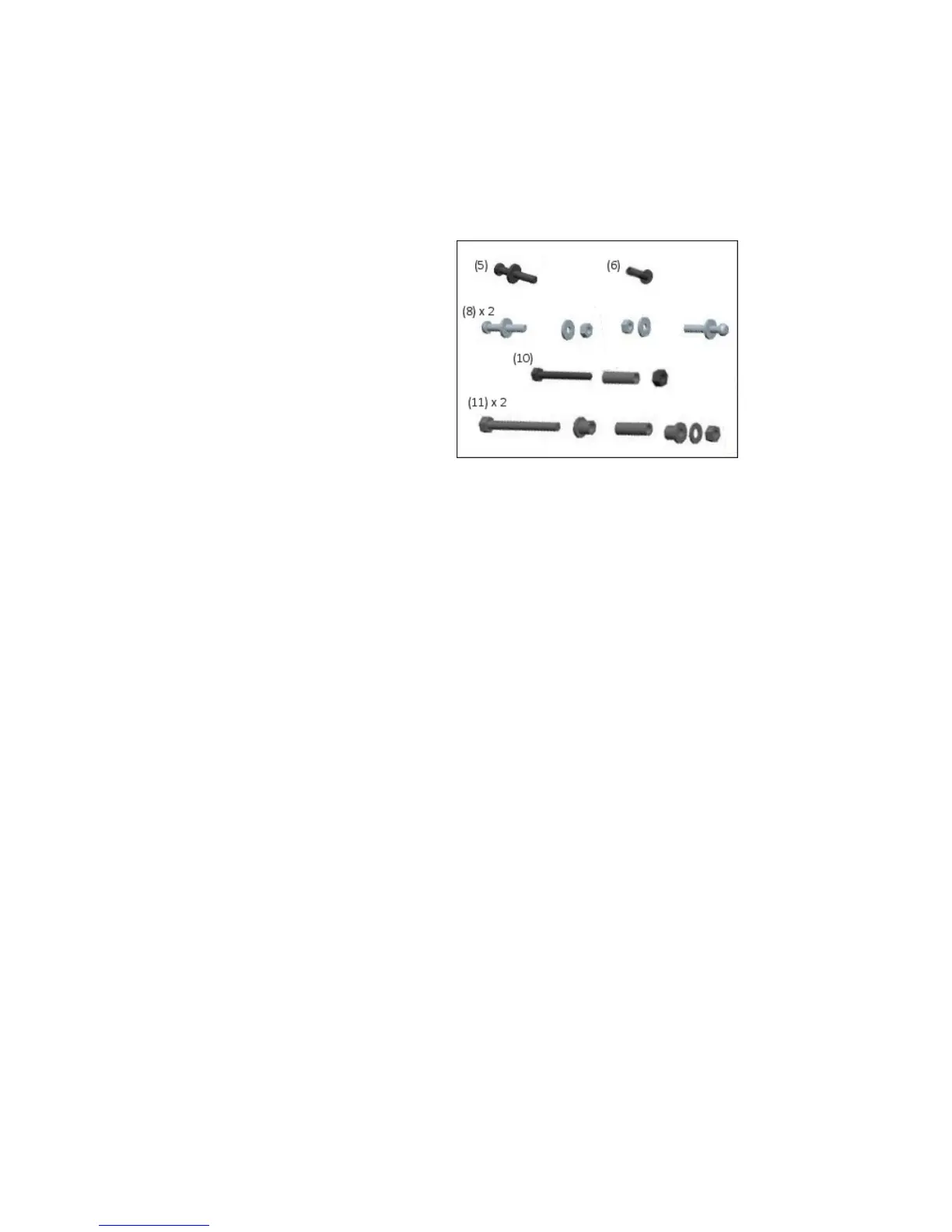

Remove the machine from its packaging and make sure you’ve received all
of the following parts to ensure your mower is correctly assembled:
(5) Throttle Securing Bolt
(6) Brake Securing Bolt
(8) Handle Securing Kit
(10) Footstop Securing Kit
(11) Deck/Handle Kit
(**) Cable Ties (not shown)
[If any pieces are missing, contact your dealer.]
Assembling the Machine
Step One: Lower Handlebar Assembly
To fit the lower handle to both sides, align the holes (footstop assembly on
the right side) and insert the sleeves, bushes, bolts, washers and nuts as
shown. (Uses Kit # 11 – Deck Handle Kit)
Step Two: Upper Handle Assembly
To fit the upper handle on both sides, align the holes and fit the bolts,
washers, and nuts. (Uses Kit #8 – Handle Securing Kit)
Step Three: Throttle & OPC Cable Assembly
Attach the throttle assembly to the outside right handle bar using the #5
Throttle Securing Bolt & washer. (Secure the cable to the upper and lower
handle using the provided ties.) Attach the OPC Cable in the front of the
right handle using the #6 Brake Securing Bolt through the back of the
handle.
Step Four: Footstop Assembly
To fit the footstop to the lower handle, align holes to the outside right lower
handle and fit the sleeve, bolt and nut. (Uses Kit #10 – Footstop Securing
Kit).
Machine Assembly
Page| 12
