Air King ES130D2 - Replacement Parts Diagram

# Qty. Description Replacement Part #
1 4 Mounting Rails 5S1299002
2 1 6” Metal Collar Assembly 5S5299100
3 2 Grill Springs 5S1202046
4 1 Ceiling Flange 5S1202050
5 2 Mounting Channel 5S1239021
6 1 Blower Assembly 5S2239008
www.airkinglimited.com
6728039 Rev. B 3-13 6 of 12

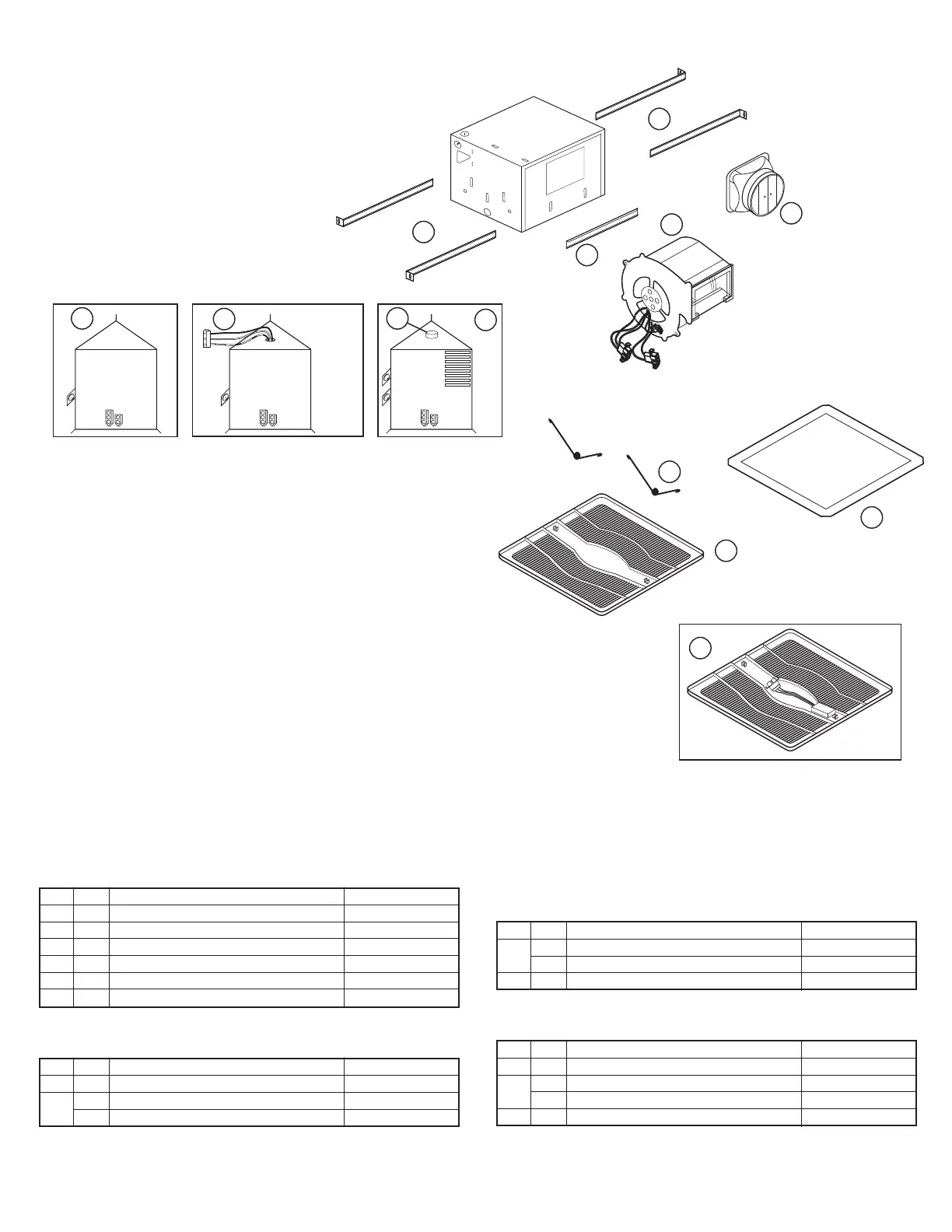

REPLACEMENT PARTS DIAGRAM
2
1
3
7
1
6
4
5
All Models
# Qty. Description Replacement Part #
7 1 Grill 5S1202048
8 1 Wire Compartment Assembly - ES80D 5S1239004
1 Wire Compartment Assembly - ES130D 5S1239005
Specific to Models ES80D, ES130D, ES130D2
# Qty. Description Replacement Part #
7 1 Grill 5S1202048
10 1 Wire Compartment Assembly - ES80DH 5S1239809
1 Wire Compartment Assembly - ES130DH 5S1299803
11 1 Knob 5S1299802
Specific to Models ES80DH, ES130DH
# Qty. Description Replacement Part #
9 1 Wire Compartment Assembly - ES80DG 5S1239018
1 Wire Compartment Assembly - ES130DG 5S1239019
12 1 Grill Assembly 5S1239115
Specific to Models ES80DG, ES130DG
10
11
9
12
8
