AIREDALE CUS Series - Refrigeration System; Refrigeration Pipework Schematics

CUS 15 - 60 / HCU 20 ² 30D
Condensing Units
Chiller & Condensing Units
Installation & Maintenance:Part No: 6259592 IM 07\14
14
Refrigeration System

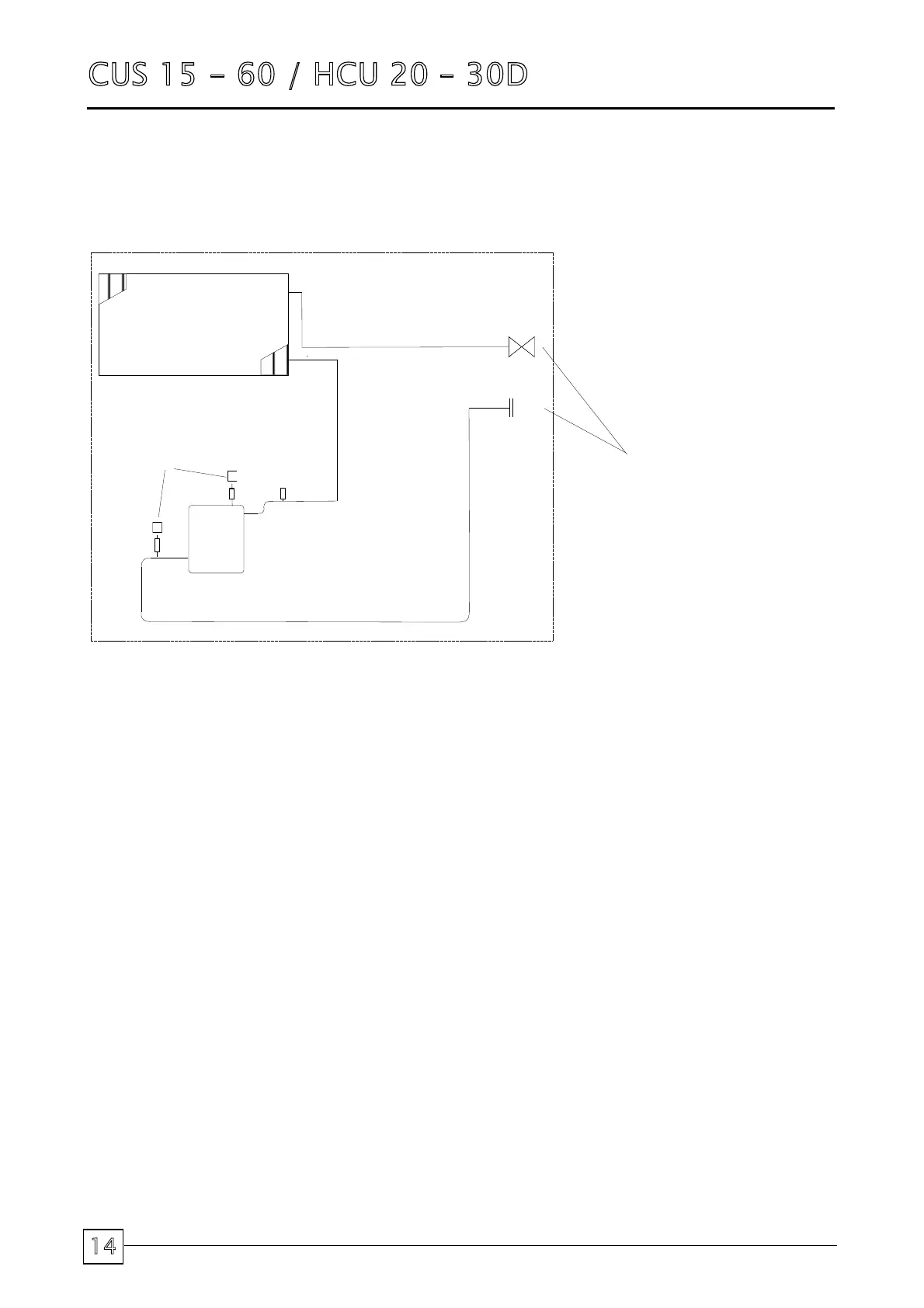

REFRIGERATION PIPEWORK SCHEMATICS
COIL
SHUT OFF
VALVE
CONDENSING UNIT
COMPRESSOR
SOLDER
CONNECTIONS
LIQUID
STUB
PIPE
SUCTION
IN-LINE PRESSURE
SWITCHES
P
P
Notes:
1 Compressor connections are diagrammatic only - not actual.
2 For clarity only one circuit is shown although all units are twin circuit.
