Airstream 2015 Flying Cloud - Page 100

Maintenance
8-30 Flying Cloud
28 Flying Cloud

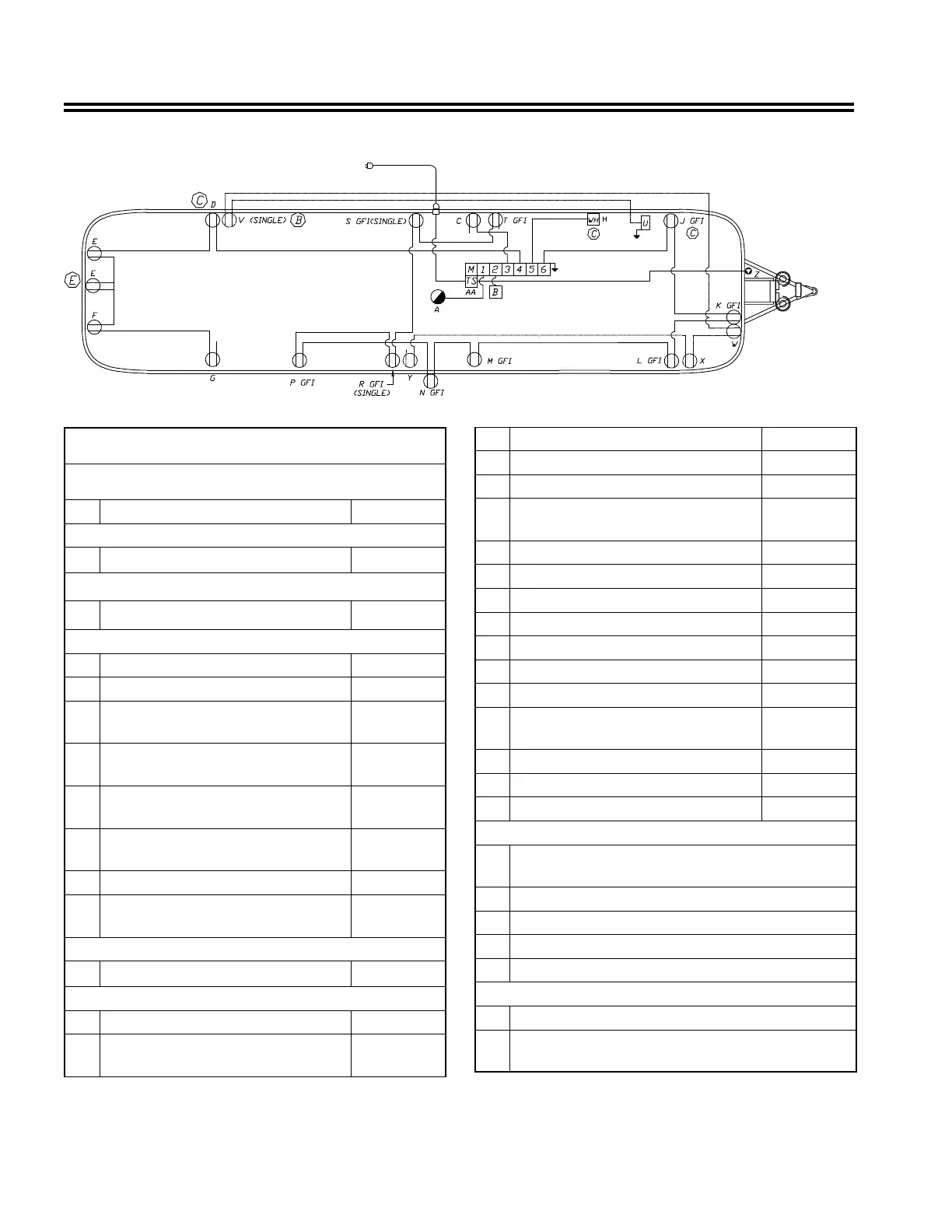

Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 20 Amp (15 Amp - CSA)
B Converter (Wired Direct) 8.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
C Microwave Receptacle (Single) 12.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
D Bedroom TV Receptacle 1.5 Amps
D Bedroom TV Receptacle - CSA 1.0 Amps
E Roadside Rear Bedroom
Receptacle
1.5 Amps
E Roadside Rear Bedroom
Receptacle* - CSA
1.0 Amps
F Curbside Rear Bedroom
Receptacle
1.5 Amps
F Curbside Rear Bedroom
Receptacle - CSA
1.0 Amps
G Curbside Bedroom Receptacle 1.5 Amps
G Curbside Bedroom Receptacle -
CSA
1.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
H Water Heater (Wired Direct) 12.0 Amps
Circuit 6, 20 Amp (15 Amp - CSA)
J Roadside Living Area Receptacle 1.5 Amps
J Roadside Living Area Receptacle
- CSA
1.0 Amps
K Blu-Ray Player Receptacle 1.5 Amps
K Blu-Ray Player Receptacle - CSA 1.0 Amps
L Curbside Living Area Receptacle 1.5 Amps
L Curbside Living Area Receptacle
- CSA
1.0 Amps
M Dinette Receptacle 1.5 Amps
M Dinette Receptacle - CSA 1.0 Amps
N Outside Receptacle 1.5 Amps
N Outside Receptacle - CSA 1.0 Amps
P Bathroom Receptacle 1.5 Amps
P Bathroom Receptacle - CSA 1.0 Amps
R Dinette TV Receptacle (Single) 1.5 Amps
R Dinette TV Receptacle (Single) -
CSA
1.0 Amps
S Refer. Receptacle (Single) 2.7 Amps
T Galley Receptacle 1.5 Amps
T Galley Receptacle - CSA 1.0 Amps
5 Amp DC to AC Inverter Circuit
U 1000 Watt Inverter, 7 Amp Breaker, 10 Amp
Transfer Switch
V Inverted Bedroom TV Receptacle (Single)
W Inverted Blu-Ray Player Receptacle
X Inverted Curbside Living Area Receptacle
Y Inverted TV Receptacle (Single)
Generator Circuit
Z 30 Amp Power Inlet
AA 30 Amp Transfer Switch UL - CSA Rated
(Attached to back of Power Center)
