Airstream 2015 Flying Cloud - Page 101

8
Maintenance
Flying Cloud 8-31
28 Flying Cloud (50 Amp)

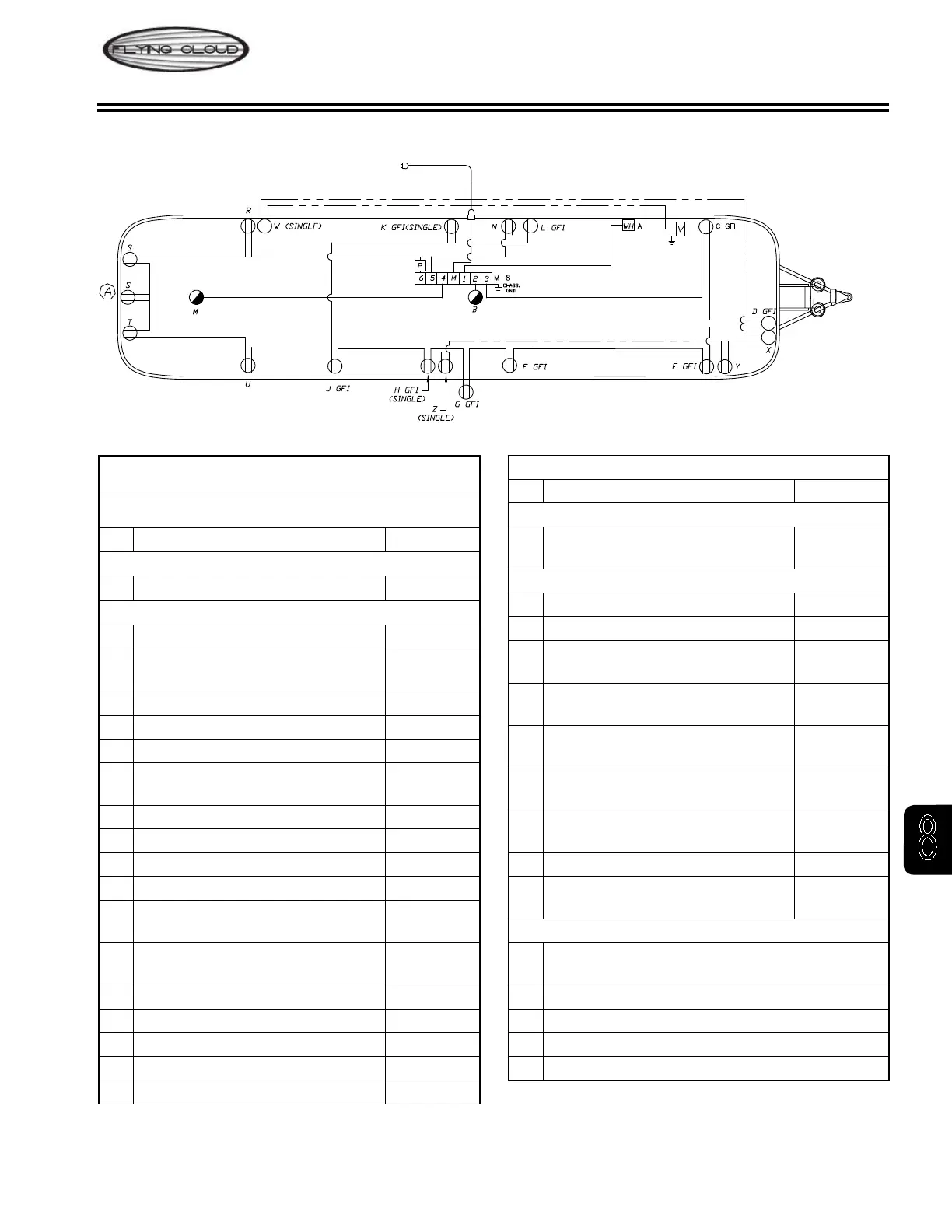

Main Circuit, 50 Amp
Circuit 1, 20 Amp
A Water Heater 12.0 Amps
Circuit 2, 20 Amp
B Main Living Area Air Conditioner 16.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
C Roadside Living Area Receptacle 1.5 Amps
C Roadside Living Area Receptacle
- CSA
1.0 Amps
D Blu-Ray Player Receptacle 1.5 Amps
D Blu-Ray Player Receptacle - CSA 1.0 Amps
E Curbside Living Area Receptacle 1.5 Amps
E Curbside Living Area Receptacle
- CSA
1.0 Amps
F Dinette Receptacle 1.5 Amps
F Dinette Receptacle - CSA 1.0 Amps
G Outside Receptacle 1.5 Amps
G Outside Receptacle - CSA 1.0 Amps
H Main Living Area TV Receptacle
(Single 15 Amp)
1.5 Amps
H Main Living Area TV Receptacle
(Single 15 Amp) - CSA
1.0 Amps
J Bathroom Receptacle 1.5 Amps
J Bathroom Receptacle - CSA 1.0 Amps
K Refer. Receptacle 2.7 Amps
L Galley Receptacle 1.5 Amps
L Galley Receptacle - CSA 1.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
M Bedroom Air Conditioner 16.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
N Microwave Receptacle (Single 20
Amp)
12.0 Amps
Circuit 6, 20 Amp (15 Amp - CSA)
P Converter (Wired Direct) 8.0 Amps
R Roadside Bedroom TV Receptacle 1.5 Amps
R Roadside Bedroom TV Receptacle
- CSA
1.0 Amps
S Roadside Rear Bedroom
Receptacle*
1.5 Amps
S Roadside Rear Bedroom
Receptacle* - CSA
1.0 Amps
T Curbside Rear Bedroom
Receptacle*
1.5 Amps
T Curbside Rear Bedroom
Receptacle* - CSA
1.0 Amps
U Curbside Bedroom Receptacle 1.5 Amps
U Curbside Bedroom Receptacle -
CSA
1.0 Amps
5 Amp DC to AC Inverter Circuit
V 1000 Watt Inverter, 15 Amp Fuse, 10 Amp
Transfer Switch
W Inverted Bedroom TV Receptacle
X Inverted Blu-Ray Player Receptacle
Y Inverted Forward Curbside Receptacle
Z Inverted Main Area TV Receptacle (Single)
