5
Interior
Flying Cloud 5-11
The 120-volt circuits may be turned on by setting their
breaker handle up, to the ON position, or off by setting
the handle down, to the OFF position. To reset the
tripped breaker, move handle to OFF then ON.
Converter Cooling System
The 7300 electronic fan cooling system is the key to
long life and trouble-free operation. The fan is never on
more than required to cool electronic components in
the converter. You may never hear the fan operate.
Converter
The converter transforms 120-volt alternating current
(AC) into 12-volt direct current (DC). This provides
power to charge the trailer battery and to operate the
12-volt interior lighting, fans, and appliances.
The converter is energized only when the trailer is
hooked up to 120-volt city power.
To test the converter, observe the following:
• Conrm 120-volt power is going into converter.
• Disconnect the 12+ wire from the master switch.
• Using a voltmeter, check voltage output between
heavy gauge positive and negative wires coming out
of converter.
• The voltage must be within 13.8 and 14.0 volts. (The
meter of the tester should be calibrated periodically.)
• If converter is not within these voltages, have it
serviced by a qualied technician or replace it.
One of these wires is not spliced onto a wire of the
same color. It is the backup wire that is yellow in the
cable and black in the harness.
A label on the inside of the converter door lists the
cicuits and what each fuse powers.
Inverter (Optional)
The inverter converts 12-volt electricity from your
batteries into 110-volt power. The switch for the inverter
is located under the monitor panel. The inverter powers
the TV and one additional labeled 110-volt receptacle.
On units 25 ft. and over in length, it also supplies power
to the bedroom TV and/or Blu-Ray Disc player when
ordered as an option. On units under 25 ft. in length, it
also supplies power to the Blu-Ray Disc player when
ordered as an option.
Overloading the inverter will cause an automatic shutoff
to activate. Removing the load will allow the inverter to
reset.
12-Volt and 110-Volt/30 Amp Circuit Diagrams
Refer to Section 8 - Maintenance for 12-volt and 110-
volt/30 amp circuit diagrams.

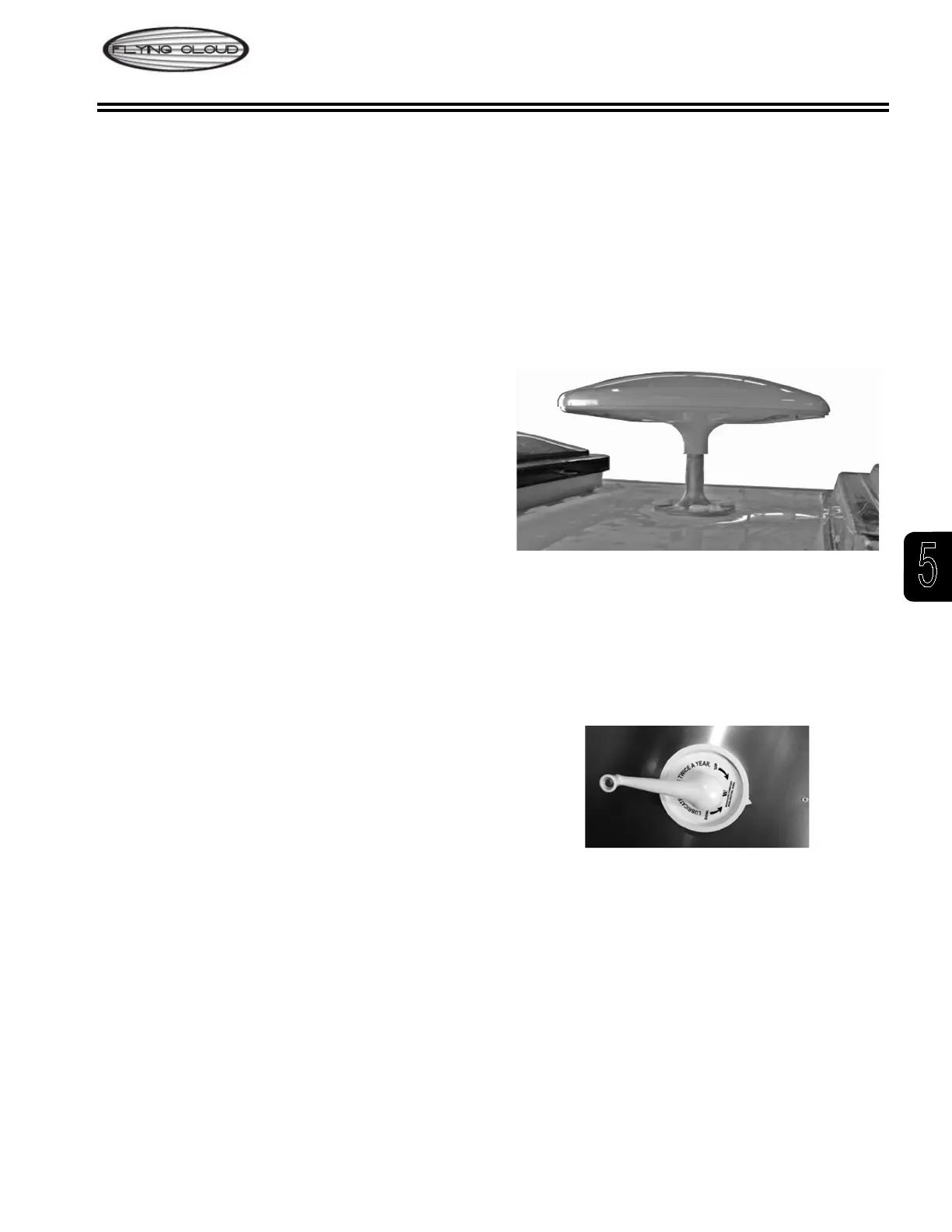

TV Antenna - Roadstar Omni-Directional (25-ft.
Models and Longer)
Manufacturer: Winegard Company
3000 Kirkwood Street
Burlington, IA 52601
Phone: (800) 288-8094
TV Antenna (23-ft. Models and Shorter)
Manufacturer: Winegard Company
3000 Kirkwood Street
Burlington, IA 52601
Phone: (800) 843-4741
Raised/Operating Position
Turn elevating crank in the UP direction until some
resistance to turning is noted. Antenna is now in
operating position. Check to make sure switch on front
TV jack is ON.
