If the generator is manually stopped while running
and in an Auto Gen mode, it will disable future auto
gen starts until re-enabled at the multiplex screen� If
you manually start the generator when Auto Gen is
enabled, it will disable the future auto gen starts until
re-enabled at the multiplex screen�
Carbon Monoxide (CO) is a highly poisonous gas�
Moving Parts and electricity can cause severe personal
injury or death� To reduce exposure to these hazards,
always disable AGS before
1� Sleeping in vehicle, unless equipped with a
working Carbon Monoxide detector
2� Parking vehicle in a garage or conned space
3� Parking vehicle for storage
4� Servicing generator, batteries or other electrical
appliances
5� Fueling vehicle
WARNING
Exposure to carbon monoxide, moving parts, and
electricity hazards are possible due to unexpected
starting of generator while in Auto Start mode.

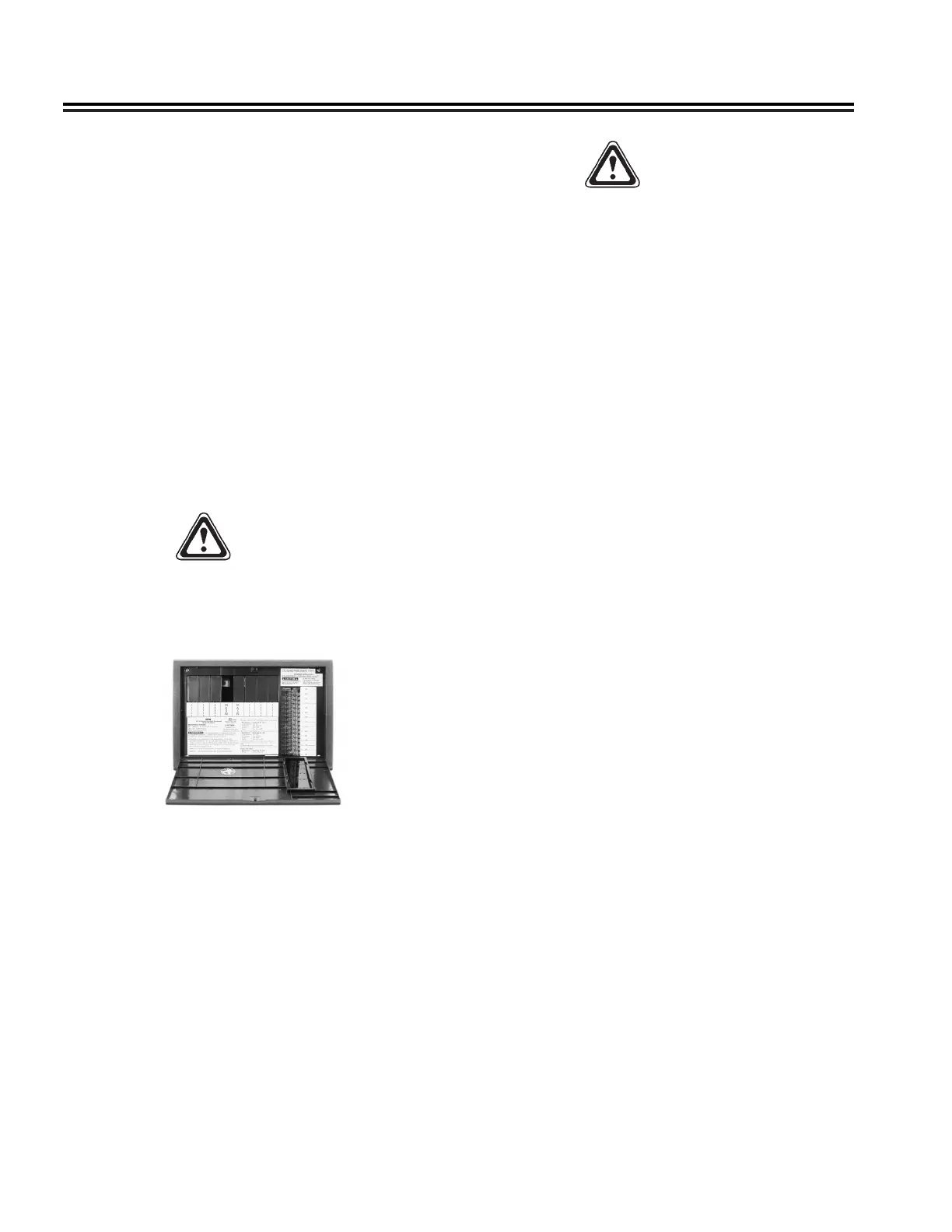

Power Center
All Interstate models have the power center installed at
the base of the drivers side rear jumper seat� Open the
decorative door for access to 12- volt fuses and 120-
volt breakers�
The power center is a completely self-contained
120-volt power distribution and energy management
system intended to be used in recreational vehicles� It
is housed in a sheet metal enclosure with a removable
front panel� It provides circuit protection for all the
120-VAC loads in the touring coach and works with the
Energy Management System to minimize the over-
loading and tripping of circuit breakers�
Refer to Section 9 - Maintenance for important battery
maintenance information�
WARNING
The power center is a centralized power switching,
fusing, and distribution center. The potential
of lethal electrical shock is present in this box.
Inadvertent shorts at this box could result in
damage and/or injury. All servicing of this box
should be done by a qualied Service Technician.
Auxiliary Fuse Locations
In addition to the 12-volt fuses and breakers described
in this section, some components have additional
fuse protection as supplied or required by their
manufacturer� These locations include:
1� LP detector: 2-amp fuse behind detector
2� Battery Separator power line to engine battery:
150-amp in-line fuse inside Sprinter battery
compartment under the driver’s oorboard
3� Monitor panel battery voltage display: under the
roadside jumper seat� (1 amp)
4� Inverter: 150-amp in-line fuse under the roadside
jumper seat�
5� Dash radio: Thermal fuse in box under the
roadside jumper seat�
6� Rear view camera: 1�5-watt in-line fuse under
drivers seat� (#11 fuse)
7� Thermostat display: Fused to 5-amp breaker on
side of furnace
NOTE
Most fuses will require a qualied technician
to access and replace. Contact your dealer or
Airstream Service Center.
Energy Management System (EMS)
The Energy Management System is located in the front
locker behind the drivers seat� A complete, detailed
EMS manual is included with your owner’s packet�
The ENERGY MANAGEMENT SYSTEM controls 120-
volt operated circuits to help keep the total 120-volt
current draw to less than 30 amps� When operating
on generator power the 120-volt draw will be less than
20 amps� These circuits may be any type load, but
are typically heavier loads, those whose use can be
“postponed” until a time when current is available for
their use�
