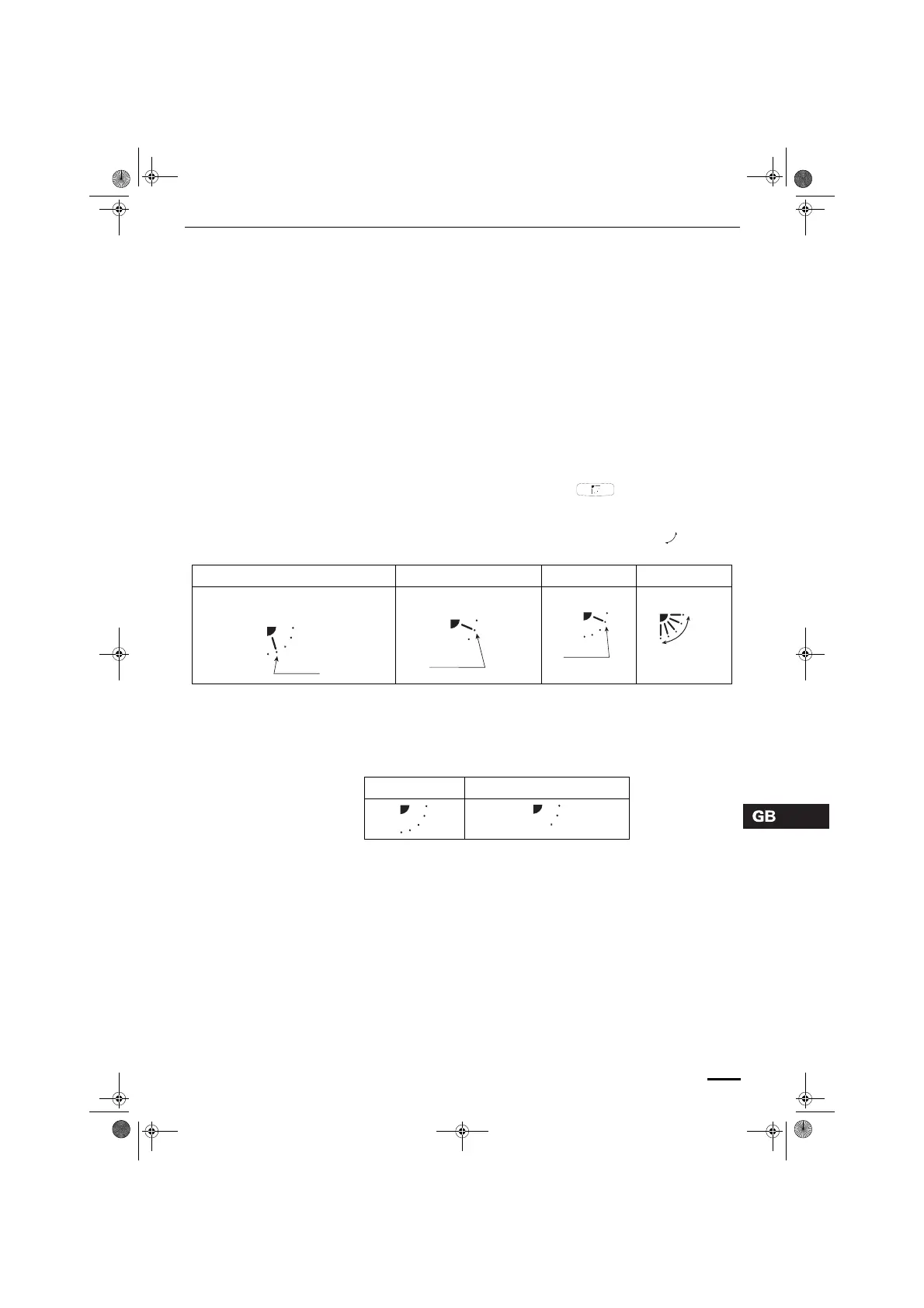

Adjusting the Airflow Direction
The functions differ depending on the indoor unit used. The airflow direction
cannot be set using the remote control unit for any unit which is not listed
below.
4-way type (NKFL), (CAV), 2-way type (NK2FL), 1-way type (NK1FL), ceiling
mounted type (NPFL) and wall mounted type (NWFL), (XAV).
• Never use your hands to move the flap (vertical airflow flap) that is
controlled using the remote control unit.
• When the air conditioner is turned off, the flap (vertical airflow flap)
automatically moves to the downward position.
• The flap (vertical airflow flap) moves to the upward position when
performing the standby operation for heating. The swing operation is
made after the standby operation for heating is released, but swing is
indicated on the remote control unit even during the standby operation for
heating.
Setting the airflow direction The airflow direction changes each time the FLAP button is pressed
during operation.
To activate the swing
operation
Press the FLAP button to set the flap (vertical airflow flap) to the downward
position, and then press the FLAP button again. This displays , and the
airflow automatically swings up and down.
To stop the swing operation Press the FLAP button again during the flap swing operation to stop the flap
at the desired position. Then, the airflow can be set from the top position by
pressing the FLAP button again.
Indicator when swing operation is stopped
During cooling or drying operation, the flap will not stop at the downward
position. Even if the flap is stopped at the downward position during the swing
operation, it will not stop until it moves to the third position from the top.
Heating Cooling and drying Fan operation All operations
Set the flap (vertical airflow flap) to the downward
position. If the flap is set to the upward position,
the warm air may not reach the floor.
The flap (vertical airflow flap) can
be set to one of three positions.
Initial setting
Initial setting
Initial setting
Continuous
operation
Fan and heating Cooling and drying
