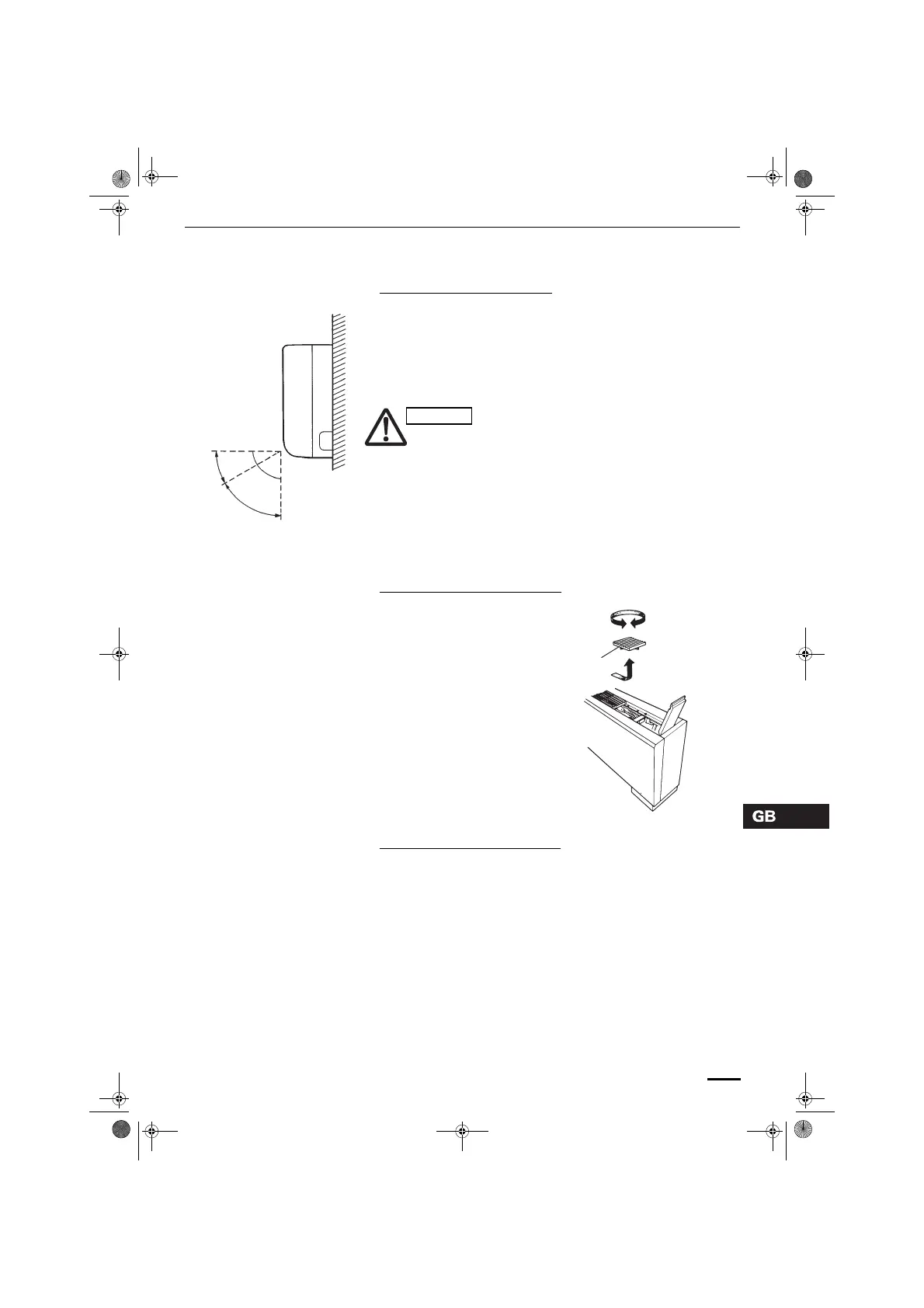

Adjusting the Airflow Direction (continued)
Wall mounted type (NWFL), (XAV)
A. Vertical directions (automatic)
Confirm that the remote control unit has been turned on. Press the FLAP
button to start the flap moving up and down. If you want to stop the flap
movement and to direct the air in the desired direction, press the FLAP button
again. In the cool mode, don’t direct the flap down more than 30°, otherwise,
condensation may drip on to the floor. Zone ‘‘A’’ is the recommended flap
position for cooling.
Do not move the flap with your hands.
B. Horizontal directions (manual)
The horizontal airflow direction can be adjusted manually by moving the
vertical vanes to the left or right.
Floor standing type (NFFL, NFMFL)
It is possible to change the airflow
direction. Remove the air
discharge grille by sliding it to the
right and then lifting it out. Turn the
grille as desired (90, 180, or 270
degrees) and then replace it.
Concealed duct type (NDLP, NDHP)
This air conditioner is not equipped with air outlet parts. These must be
obtained locally. Please refer to the manual of the locally adopted air outlet
parts.
Zone
‘‘A’’ for
cooling
30°
Indoor unit
Zone ‘‘B’’ for
heating
60°
Air discharge
grille
Valve
side
