15. OPTIONAL ACCESSORIES
15.1 RCW Wall Mounted Remote Cntrol
15.1.1 The RCW wall mounted remote control can be fitted to a large
range and models, It can be used as IR (wirless mode) or wired
controler.the RCW can control up to15 indoor units using the
same settings (on its wired aplication),
The max wiring length between the controller to the last indoor unit is 300m. for
application on WNG LED indoor units an additional interface PCB is needed.
Ordering code no’:
RCW – 436195
WNG add’ PCB - SP000000290.
ENGLISH

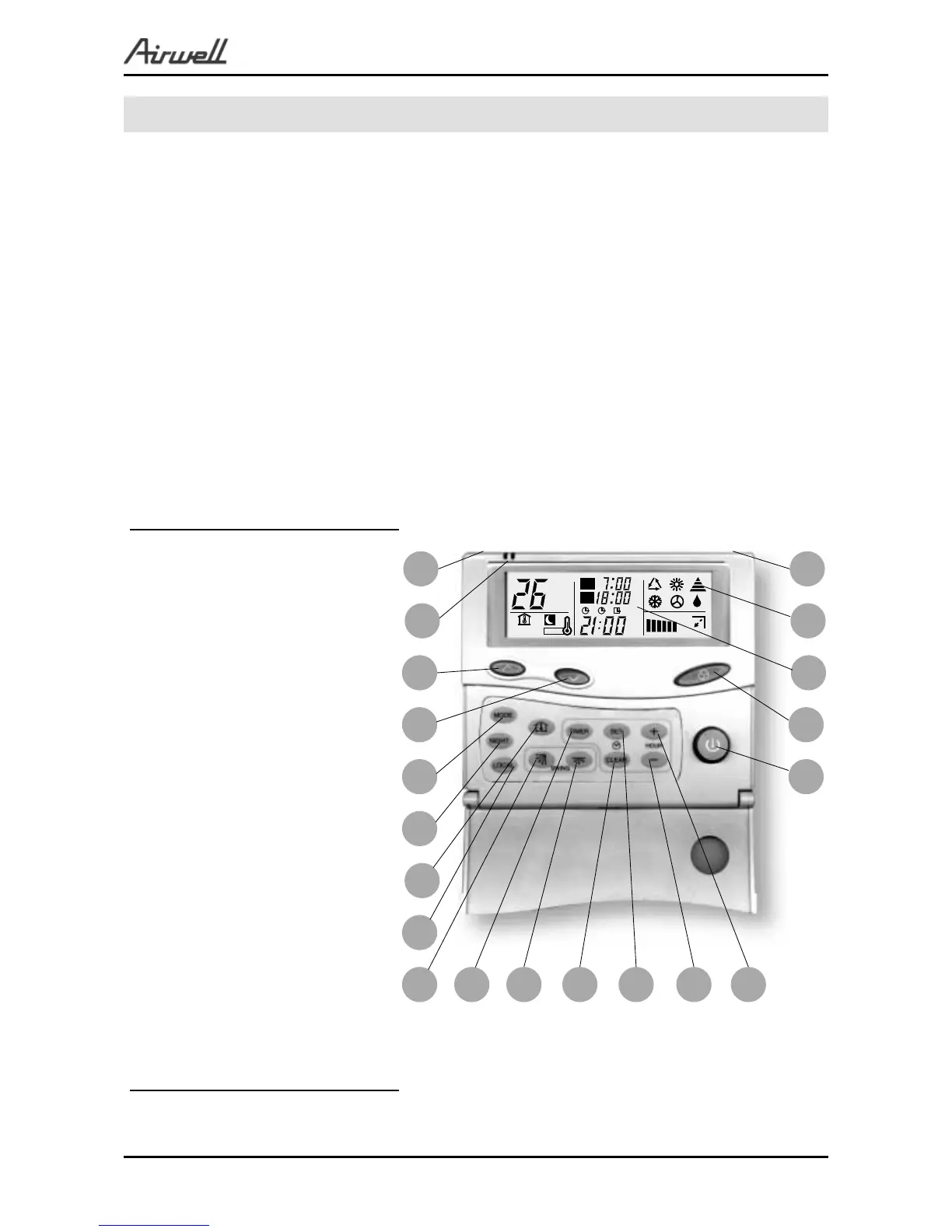

REMOTE CONTROL
1. STA RT / STO P bu t t on
2. Operation mode selection
button COOLING, HEATING,
AUTO COOL / HEAT, DRY, FAN.
3. LOCAL temperature sensing button
4. FA N SPEED and
AUTO FAN button
5. Room t emper at ur e U P but t on
6. Room t emper at u r e D O W N Bu t t on
7. NIGHT button
8. Airflow direction MANUAL positioning co
n
9. Airflow direction AUTO-CONTROL butto
n
10. TIM ER but t on
11. TIM ER UP button
12. TIM ER DOWN button
13. LCD operation display
14. LOCAL sensor
15. Infrared signal transmitter
16. ROOM temperature button
17. TIM ER SET button
18. TIM ER CLEAR but t on
19. Tr ansmi ssi on si gn
