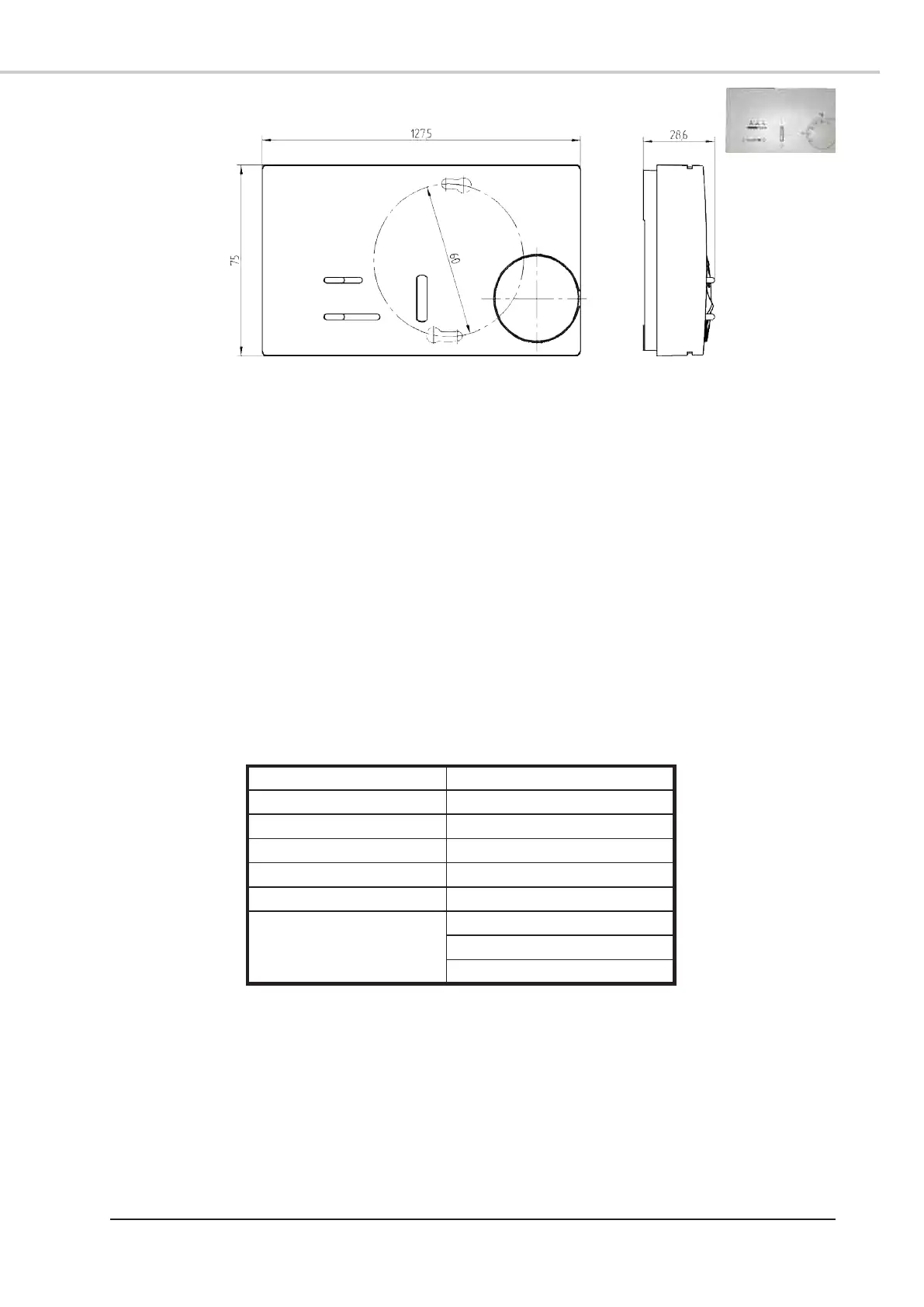

DIMENSIONS
WALL MOUNTING
Remove the thermostat control knob, the screw and the cover.
On a flat surface, mount the control panel using plugs and screws.
Install the cover, the screw and the thermostat control knob.
ELECTRICAL CONNECTIONS
Connection of the thermostat TRM-VP and TRM-FA.
Connections should be made according to the diagram (SEE APPENDIX).
Max. cross-sectional area of wires : 2,5 mm
2
TECHNICAL CHARACTERISTICS
Operating voltage 230 V 50
Contact configuration SPDT
Temperature range 5 to 30°C
Switching current at 230V AC 6A (cos ϕ=1) / 3A (cos ϕ =0.6)
Switching differential approx. 0,5 K
Sensor system bimetal
Switches
ON / OFF
mode of operation
fan speed
