ADJUSTMENT OF THE TEMPERATURE RANGE
The room thermostat is set in the factory for a minimum temperature of +5°C and a max.
temperature of +30°C.
Two rings are provided inside the knob for reducing the temperature range.
Example: 12°C to 25°C
ADJUSTMENT PROCEDURE
Setting the temperature range
e.g. max. 25°C, min. 12°C.
Remove the control knob.

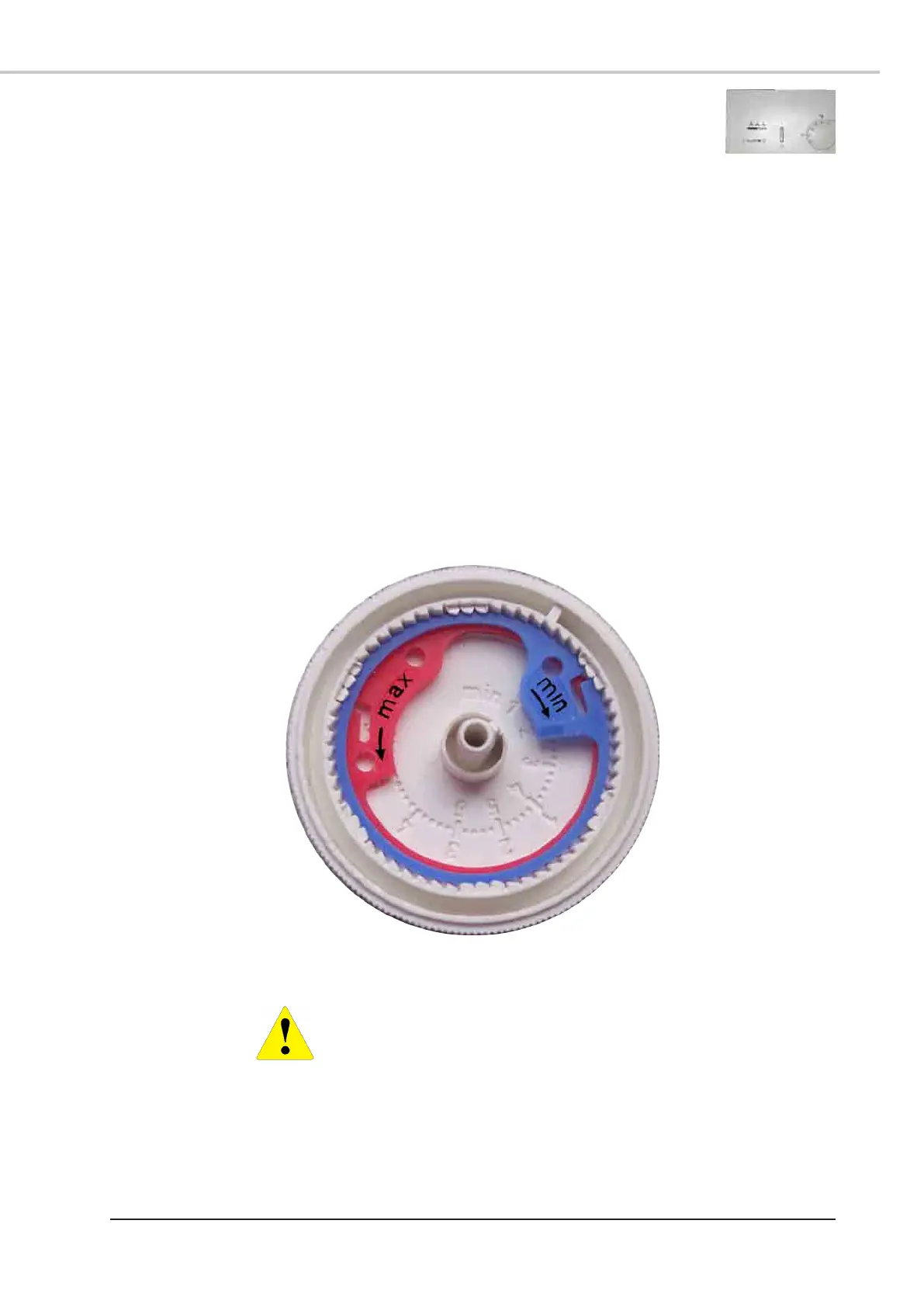

Use a pointed object to align the mark on the red ring (max. value) with the desired maximum
temperature (25°C), turning the red index opposite the outside numbers counterclockwise.
Use a pointed object to align the mark on the blue ring (min. value) with the desired minimum
temperature (12°C), turning the blue index opposite the inside numbers clockwise.
Install the control knob.
1.
2.
3.
4.
5.
The temperature ranges can be graduated in:
degrees Celsius °C
from 5°C to 30°C
number 1 to 6
1=5°C
2=10°C
3=15°C
4=20°C
5=25°c
6=30°C
