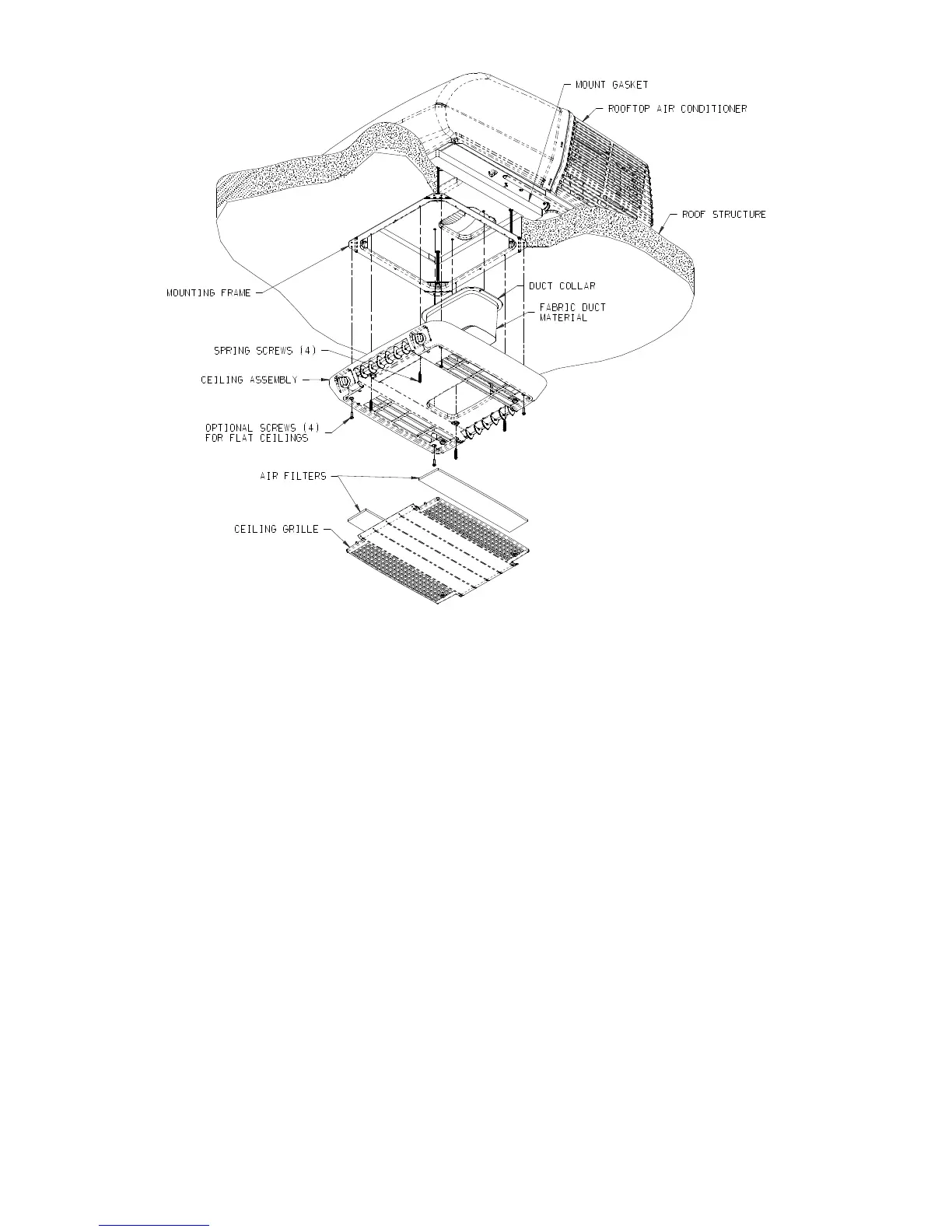

FI
GURE 9
IX. INSTALLING THE CEILING ASSEMBLY (9400 SERIES)
Make sure that you have properly matched the roof top
a
ir conditioner and interior ceiling assembly. The
following step-by-step instructions must be performed
in the following sequence to insure proper installation.
A. Remove ceiling assembly from carton, separate
individual items and remove the two grilles and
filters from the ceiling shroud.
B. Fasten the duct collar to the air conditioner
basepan with 3 provided screws (See Figure 12).
C. Raise the ceiling assembly chute and insert the
the supply wiring through the cable clamp and
into the wiring box so that 4-6” of supply
conductor is inside the box. Secure the cable
clamp over the supply wire sheath so that no
movement is possible (See Figure 10).
D. Connect the supply power black conductor to the
black pigtail wire, the white conductor to the white
pigtail wire and the supply ground conductor to the
green pigtail wire found in the wiring box using the
3 provided wire nuts. Using a U.L. approved
electrical tape, secure the wire nuts to wires in a
workmanlike manner (See Figure 11).
E. Press supply conductors and wire nuts into wiring
box and making sure no wires are pinched, secure
the wire box cover with 2 provided screws (See
Figure 11).
F. Plug the air conditioner electrical conduit into the
9 position receptacle as shown in Figure 10.
