Aiwa AX-7400 Service Manual

MODEL AX-7400EE,UK ~*~ | AIWA

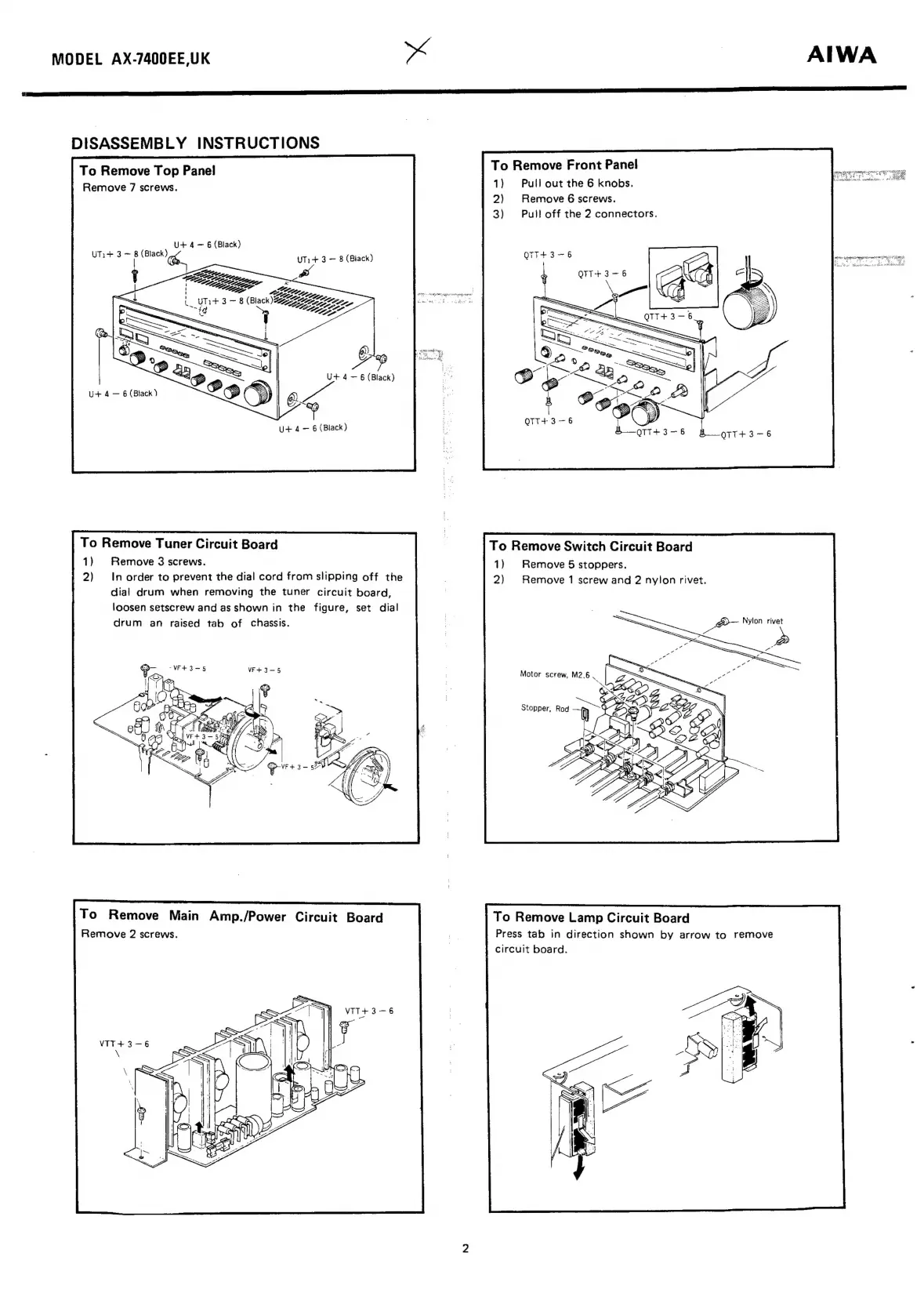

DISASSEMBLY INSTRUCTIONS
To Remove Top Panel
Remove 7 screws.
To Remove Front Panel
1) Pull out the 6 knobs,
2) Remove 6 screws.
3) Pull off the 2 connectors.
U+ 4 — 6 (Black)
UTi+
3
—
8
(Black)
&
Ti+
3
—
8
(Biack)
U+ 4 — 6 (Black)
To Remove Tuner Circuit Board
1) Remove 3 screws.
2) In order to prevent the dial cord from slipping off the
dial drum when removing the tuner circuit board,
loosen setscrew and as shown in the figure, set dial
drum an raised tab of chassis.
To Remove Switch Circuit Board
1) Remove 5 stoppers.
2) Remove 1 screw and 2 nylon rivet.
go Nylon rivet
- we
To
Remove
Main
Amp./Power
Circuit
Board
Remove
2
screws.
To Remove Lamp Circuit Board
Press tab in direction shown by arrow to remove
circuit board.

Aiwa AX-7400 Specifications

General

Brand	Aiwa
Model	AX-7400
Category	Stereo Receiver
Language	English
