CDC-R30MP/X30MP

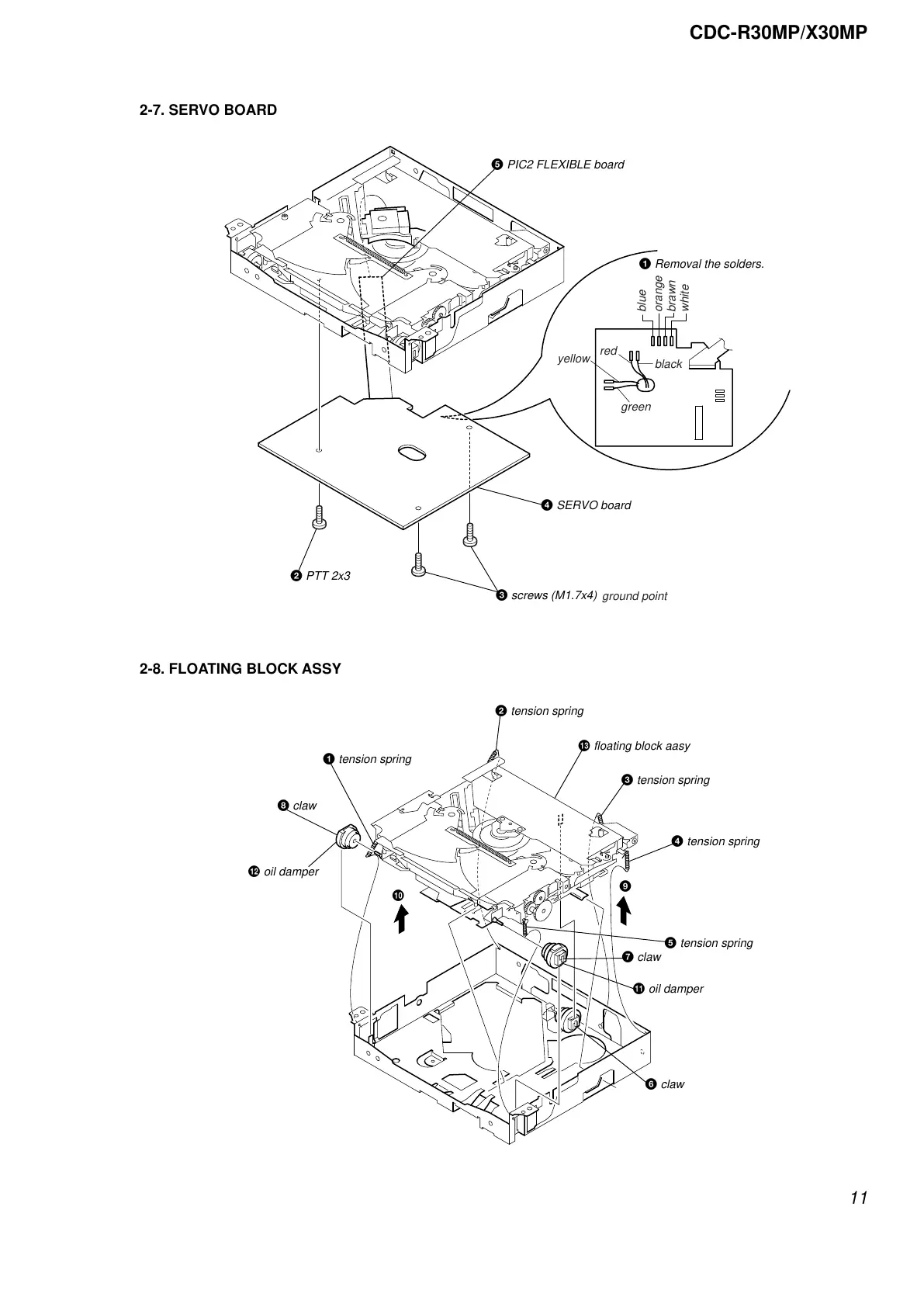

2-8. FLOATING BLOCK ASSY
2-7. SERVO BOARD
2 PTT 2x3
3 screws (M1.7x4)
4 SERVO board
5 PIC2 FLEXIBLE board
1 Removal the solders.
white
brawn
orange
blue
black
red
yellow
green
ground point
1 tension spring
2 tension spring
3 tension spring
qd floating block aasy
4 tension spring
5 tension spring
6 claw
7 claw
8 claw
qa oil damper
qs oil damper
9
0
