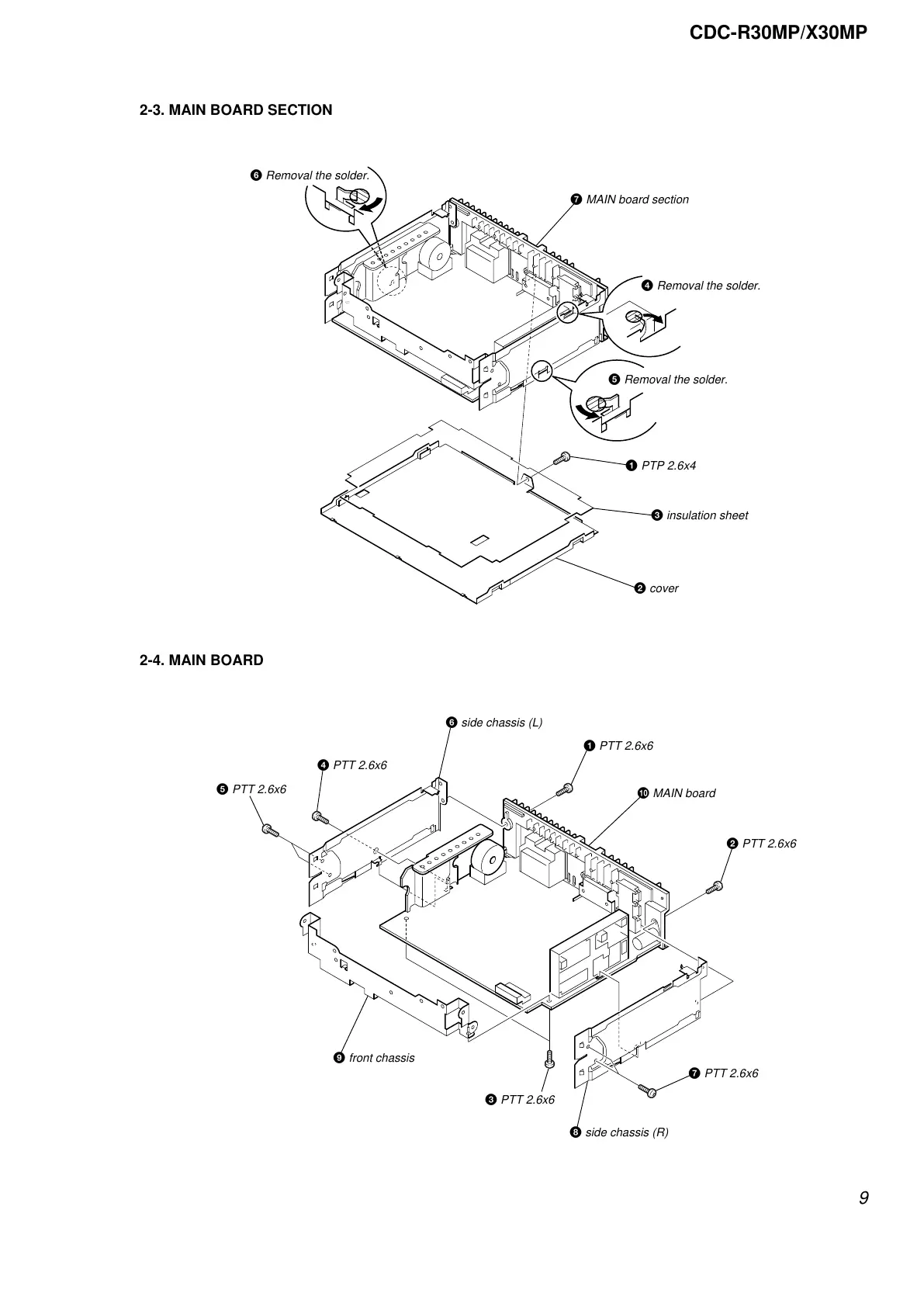

CDC-R30MP/X30MP
2-4. MAIN BOARD
2-3. MAIN BOARD SECTION
2 cover
3 insulation sheet
4 Removal the solder.
7 MAIN board section
5 Removal the solder.
6 Removal the solder.
1 PTP 2.6x4
0 MAIN board
1 PTT 2.6x6
4 PTT 2.6x6
6 side chassis (L)
8 side chassis (R)
9 front chassis
5 PTT 2.6x6
3 PTT 2.6x6
7 PTT 2.6x6
2 PTT 2.6x
6
