CDC-R30MP/X30MP
SECTION 2
DISASSEMBLY

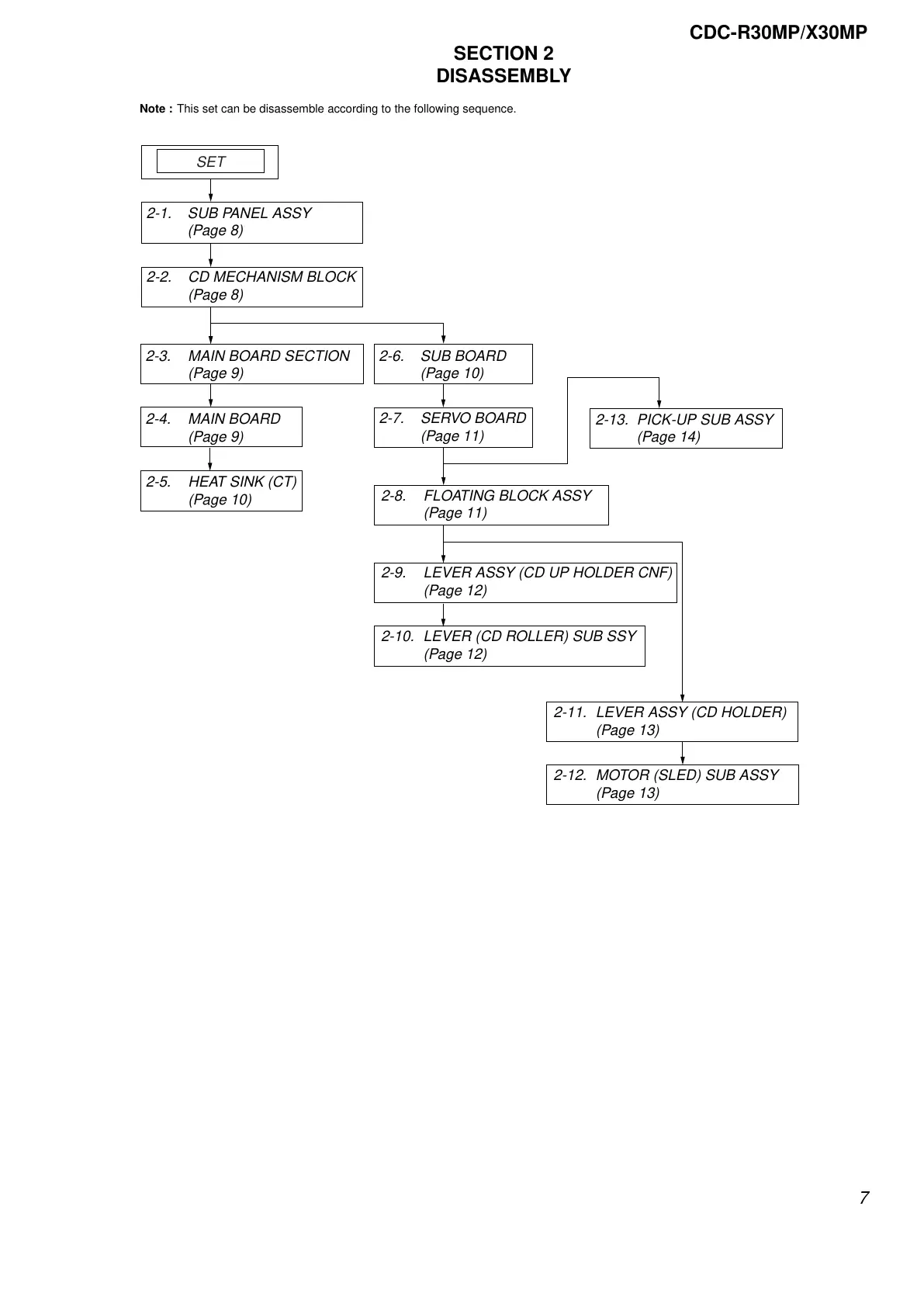

Note : This set can be disassemble according to the following sequence.
2-1. SUB PANEL ASSY
(Page 8)
2-2. CD MECHANISM BLOCK
(Page 8)
2-6. SUB BOARD
(Page 10)
2-7. SERVO BOARD
(Page 11)
SET
2-13. PICK-UP SUB ASSY
(Page 14)
2-4. MAIN BOARD
(Page 9)
2-5. HEAT SINK (CT)
(Page 10)
2-3. MAIN BOARD SECTION
(Page 9)
2-8. FLOATING BLOCK ASSY
(Page 11)
2-9. LEVER ASSY (CD UP HOLDER CNF)
(Page 12)
2-10. LEVER (CD ROLLER) SUB SSY
(Page 12)
2-11. LEVER ASSY (CD HOLDER)
(Page 13)
2-12. MOTOR (SLED) SUB ASSY
(Page 13)
