8
CDC-R30MP/X30MP

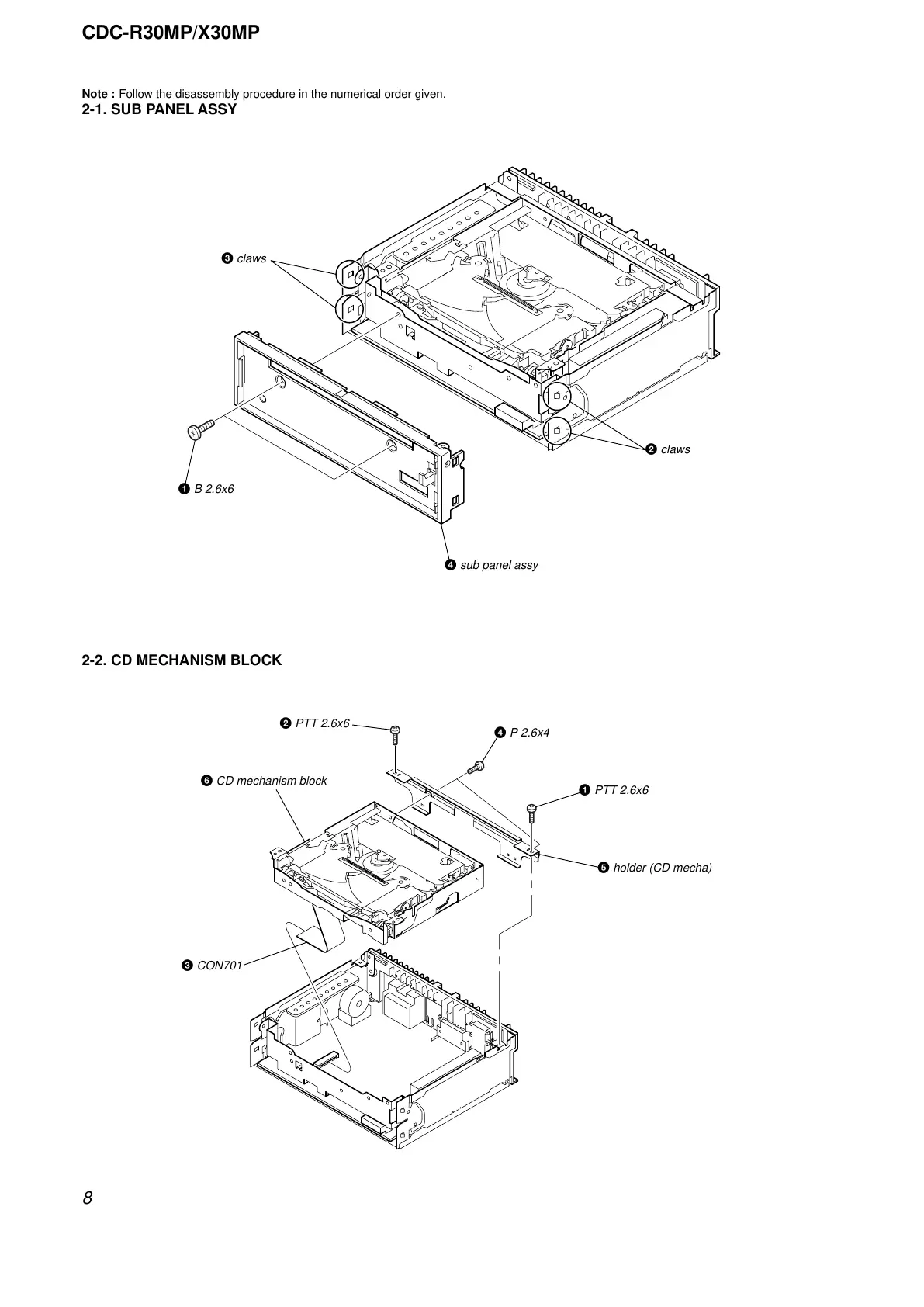

2-2. CD MECHANISM BLOCK
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY
4
sub panel assy
3
claws
2
claws
1
B 2.6x6
3
CON701
6
CD mechanism block
5
holder (CD mecha
)
1
PTT 2.6x6
2
PTT 2.6x6
4
P 2.6x4
