Aiwa CSD-EL33 Service Manual

3837
CD MECHANISM PARTS LIST 1 / 2
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST ”.
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 83-ZG3-224-119 1B HLDR,M2
2 83-ZG3-228-21K 1C CHAS,L6
3 83-ZG3-208-01K 0E PULLEY,MOTOR
4 83-ZG3-213-01K 0E LVR,SW
5 83-ZG3-209-01K 1A CAM,SLIDE
6 83-ZG3-207-01K 0E GEAR,TRAY
7 83-ZG3-204-01K 0E GEAR,C
8 83-ZG3-205-01K 0E GEAR,D
9 83-ZG3-217-019 0E S-SCREW,GEAR D
10 83-ZG3-220-11K 0E GEAR,PULLEY 2
11 83-ZG3-214-019 0E BELT,L
12 83-ZG3-229-01K 1C TRAY,CD 2
13 83-ZG3-210-01K 1B HLDR,CHUCK
14 83-ZG3-602-010 1A RING,MAG
15 83-ZG3-212-01K 0E CAP,DISC
16 83-ZG3-211-01K 0E PLATE,DISC
17 81-ZG1-254-019 0E S-SCEW,MECH HLDR
18 83-ZG3-216-019 0E SPR-C,L
19 80-CD3-214-019 0E CUSH CD A
A 87-067-945-119 0E VFT2+3-12(F10)
B 87-251-071-119 0E U+2.6-4
C 87-512-074-219 0E VFT2+2.6-8
D 87-352-075-219 0E VT2+2.6-10
1 83-ZG2-202-71K 1C O-SERT S ASSY,S
2 83-ZG2-204-419 0E GEAR,A
3 83-ZG2-205-219 0E GEAR,B
4 83-ZG2-220-01K 0E GEAR MOTOR 2
5 83-ZG2-240-019 1A SHAFT,SLIDE 3
6 87-070-445-010 2C PICK-UP,KSS-213B
8 83-ZG2-233-019 1B TURN TABLE,A5
A 87-261-032-219 0E SCREW V+2-3

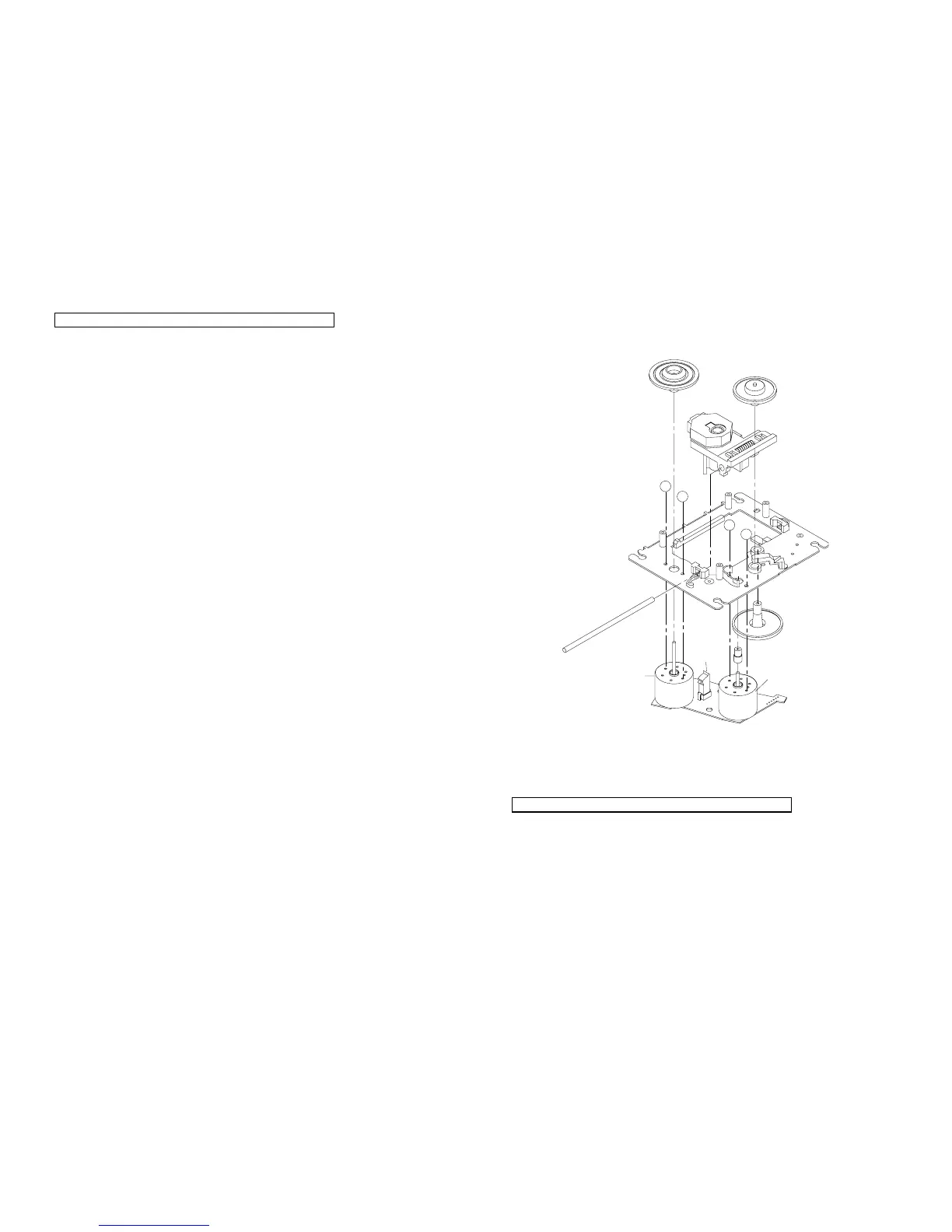

CD MECHANISM EXPLODED VIEW 2 / 2
CD MECHANISM PARTS LIST 2 / 2
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST ”.
REF. NO. PART NO. KANRI
NO.
DESCRIPTION
CD MOTOR C.B
1
8
4
2
3
5
6
M2
M3
S1
A
A
A
A
