36

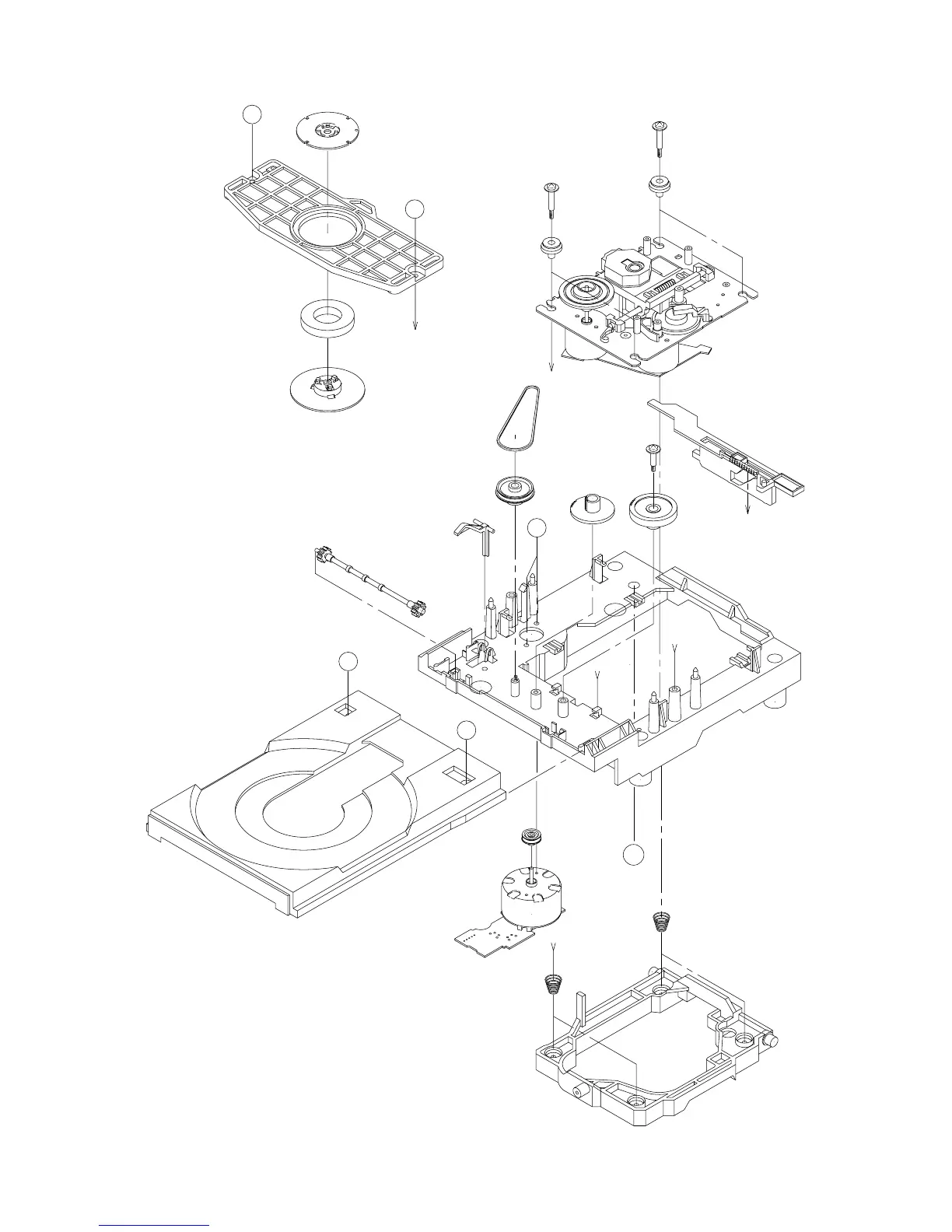

CD MECHANISM EXPLODED VIEW 1 / 2
A
B
C
A
B
C
3
LOADING
MOTOR C.B
2
4
5
6
7
8
9
10
11
12
16
14
15
13
1
18
19
17
3ZG3
17
19
18
B
C
C
D
D
A
