19. “Wormwheel ASSY” Removal (See Figure — 18)
1, Disassembly
1) Remove “Front Loading ASSY”.
2) Remove “Cassette Load Bracket ASSY”.
3) Remove E — Ring @).
4) Remove “Wormwheel ASSY.” (“Wormwheel”, “Friction Spring”, “Friction Gear”)
2. Assembly
1) Turn the “Lift Gear R” fully counterclockwise.
2) Restore “Wormwheel ASSY” to the stud.
= Remark =
Match “Lift Gear R” to the “Wormwheel Hole” as illustrated.
Front Loading ASSY
Friction Gear
Lift Gear R
Wormwheel ASSY
Lift Gear R
Wormwheei
Wormwheel Hole
20
Stud
Friction Spring
Wormwheel

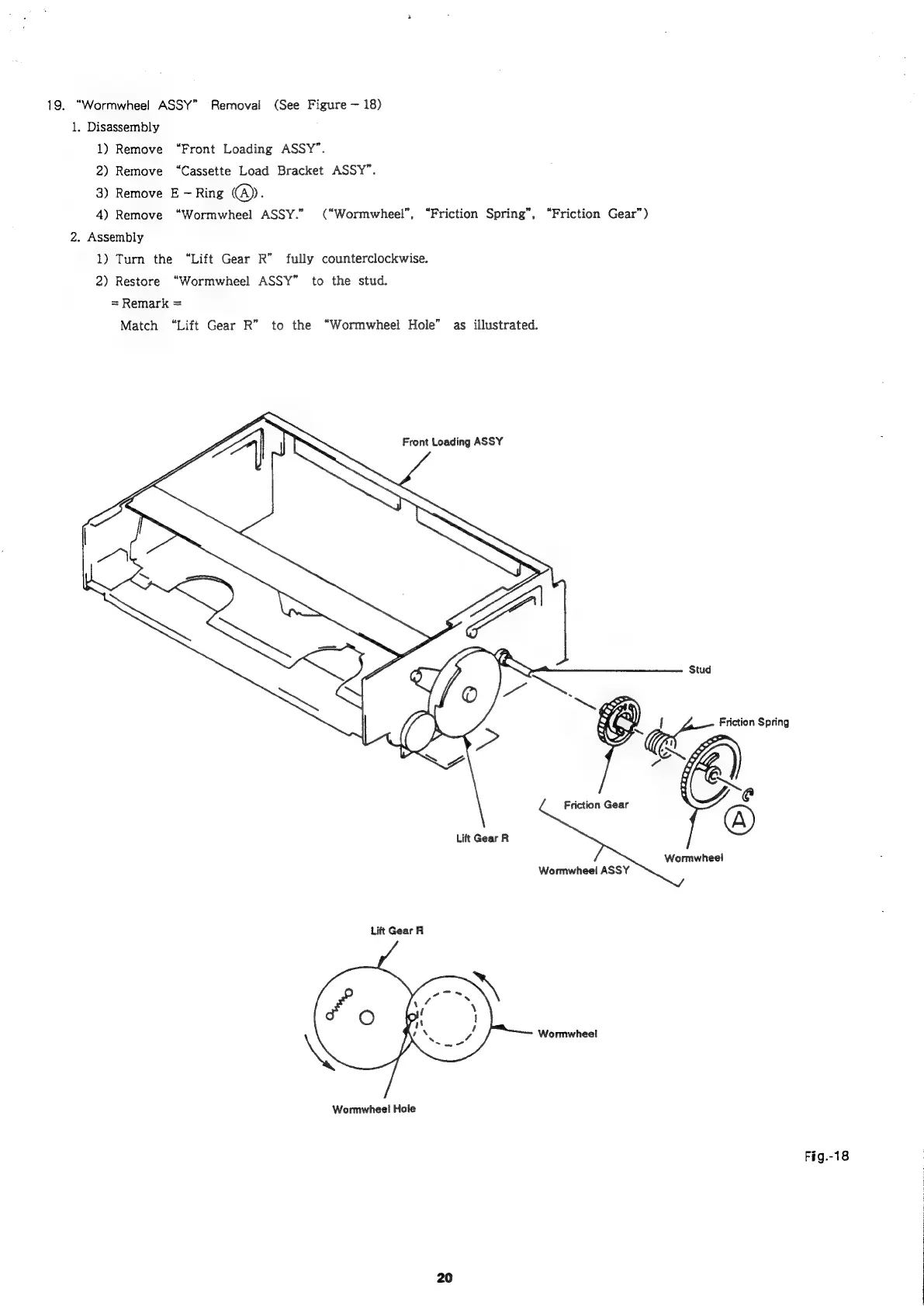

Fig.-18
