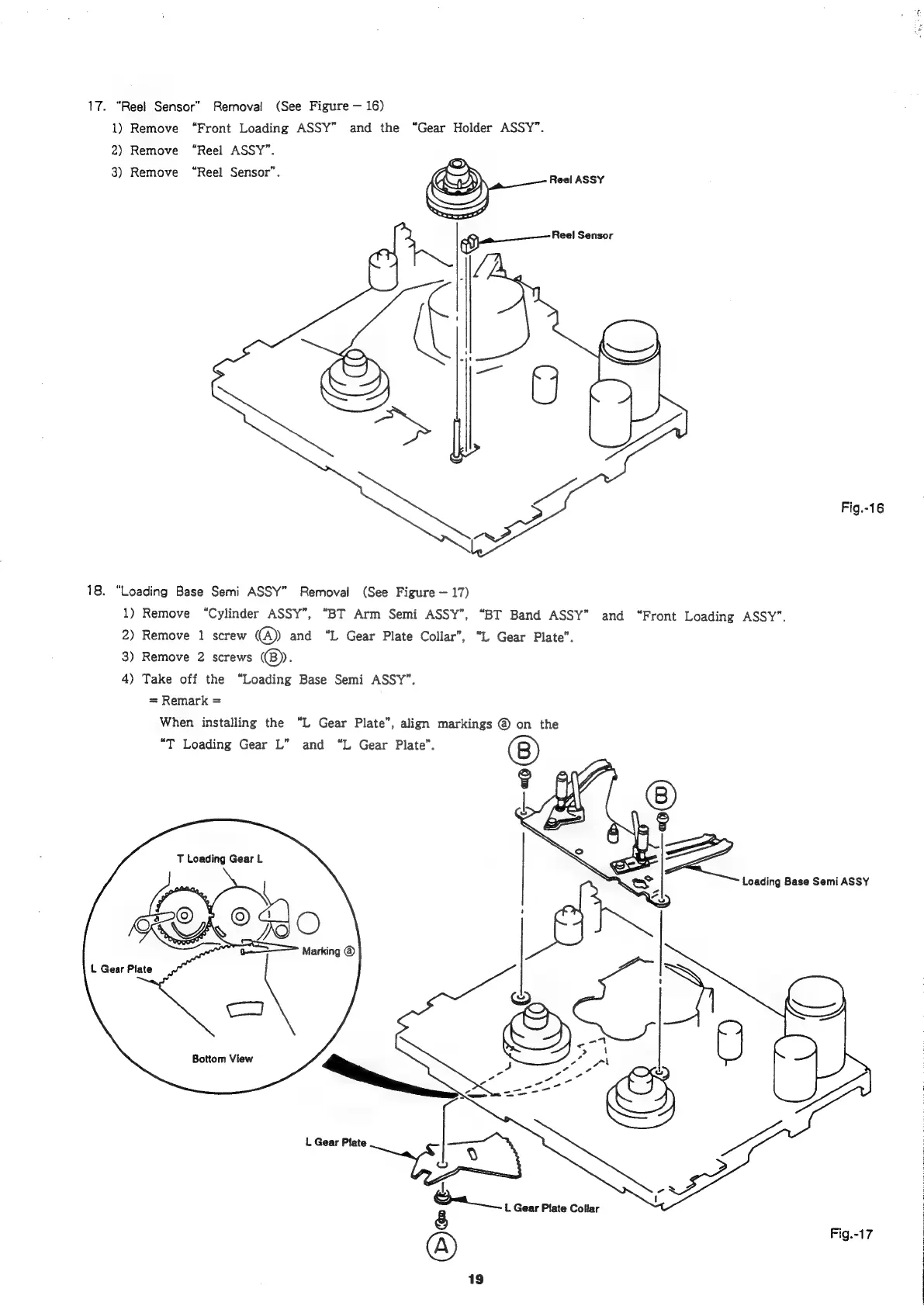

17. “Reel Sensor” Removal (See Figure — 16)
1) Remove “Front Loading ASSY” and the “Gear Holder ASSY”.
2) Remove “Reel ASSY”.
3) Remove “Reel Sensor”. Rosi Agsy.
Fig.-16
18. “Loading Base Semi ASSY” Removal (See Figure — 17)
1)
Remove
“Cylinder
ASSY”,
“BT
Arm
Semi
ASSY”,
“BT
Band
ASSY”
and
“Front
Loading
ASSY”.
2) Remove 1 screw (A)) and “L Gear Plate Collar”, “L Gear Plate”.
3) Remove 2 screws ©).
4) Take off the “Loading Base Semi ASSY”.
= Remark =
When installing the “L Gear Plate”, align markings @ on the
“T Loading Gear L” and “L Gear Plate”.
T Loading Gear L
£eXodo
- Marking @
L Gear Plate
co
Bottom View
L Gear Plate
¢
J
ae L Gear Plate Collar
é Fig.-17
@® '
