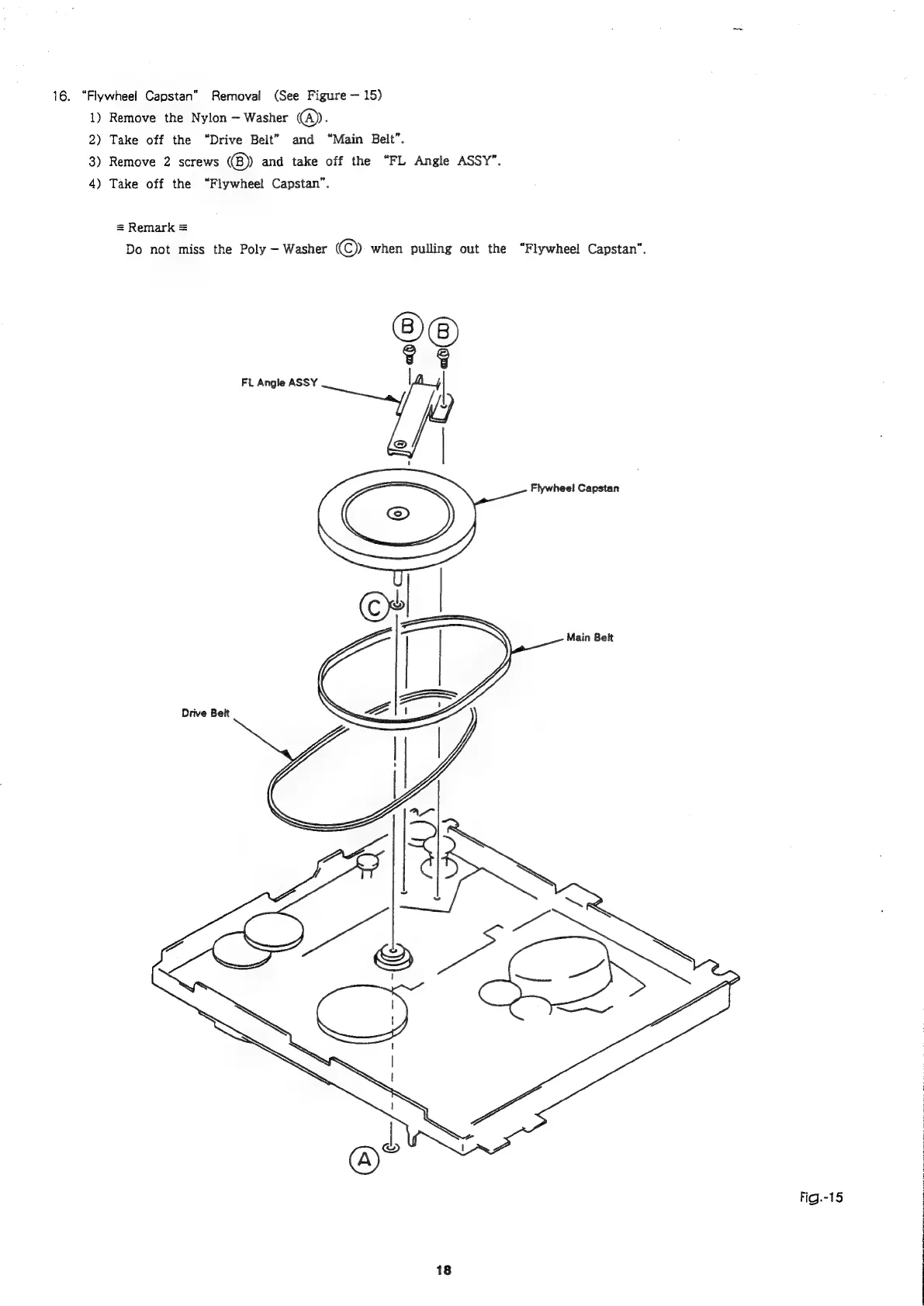

16. “Flywheel Capstan” Removal (See Figure — 15)
1) Remove the Nylon — Washer @).
2) Take off the “Drive Belt” and “Main Belt”.
3) Remove 2 screws @®) and take off the “FL Angle ASSY”.
4) Take off the “Flywheel Capstan”.
= Remark =
Do not miss the Poly — Washer © when pulling out the “Flywheel Capstan”.
5
‘ |
<0(@)
®
Flywheel Capstan
©u
Main Bek
a
Drive Belt A
||
|
Ay
18
Fig.-15
