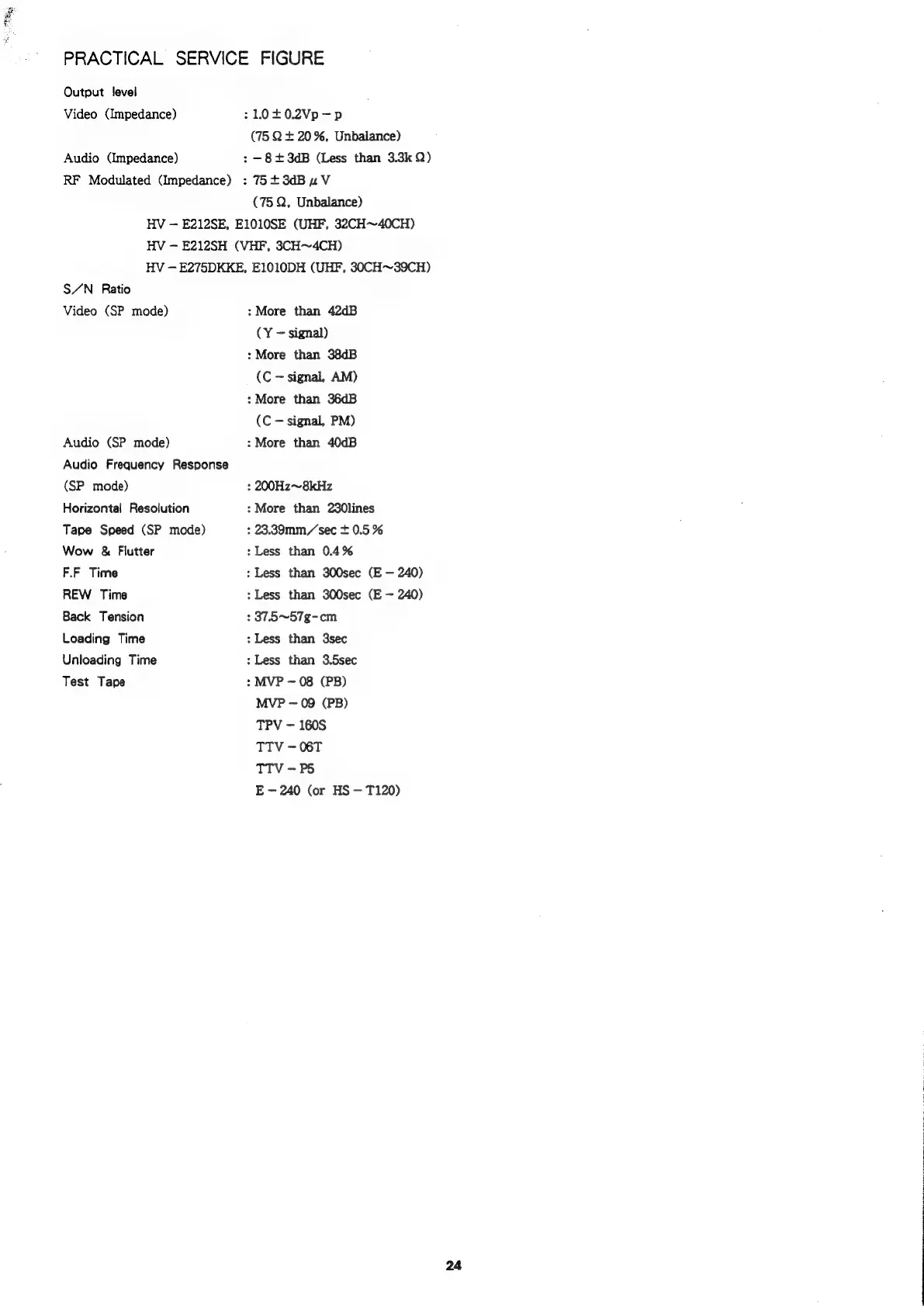

Aiwa HV-E212 - Practical Service Figures

PRACTICAL SERVICE FIGURE
Output level
Video (Impedance) :10+0.2Vp—-p
(75 Q+ 20%, Unbalance)
Audio (Impedance) : —-8+3¢dB (Less than 3.3k Q)
RF Modulated (Impedance) : 75+3dBuV
(75 Q, Unbalance)
HV — E212SE, E1010SE (UHF, 32CH~40CH)
HV — E212SH (VHF, 3CH~4CH)
HV — E275DKKE, E1010DH (UHF, 30CH~39CH)
S/N Ratio
Video (SP mode) : More than 42dB
(Y — signal)
: More than 38dB
(C ~ signal, AM)
: More than 36dB
(C — signal, PM)
Audio (SP mode) : More than 40dB
Audio Frequency Response
(SP mode) : 200Hz~8kHz
Horizontal Resolution : More than 230lines
Tape Speed (SP mode) : 23.39mm/sec + 0.5 %
Wow & Flutter : Less than 0.4%
F.F Time : Less than 300sec (E — 240)
REW Time : Less than 300sec (E — 240)
Back Tension : 87.5~57g-cm
Loading Time : Less than 3sec
Unloading Time : Less than 3.5sec
Test Tape : MVP ~ 08 (PB)
MVP — 09 (PB)
TPV — 160S
TTV ~ OT
TTV — P5
E — 240 (or HS — T120)
