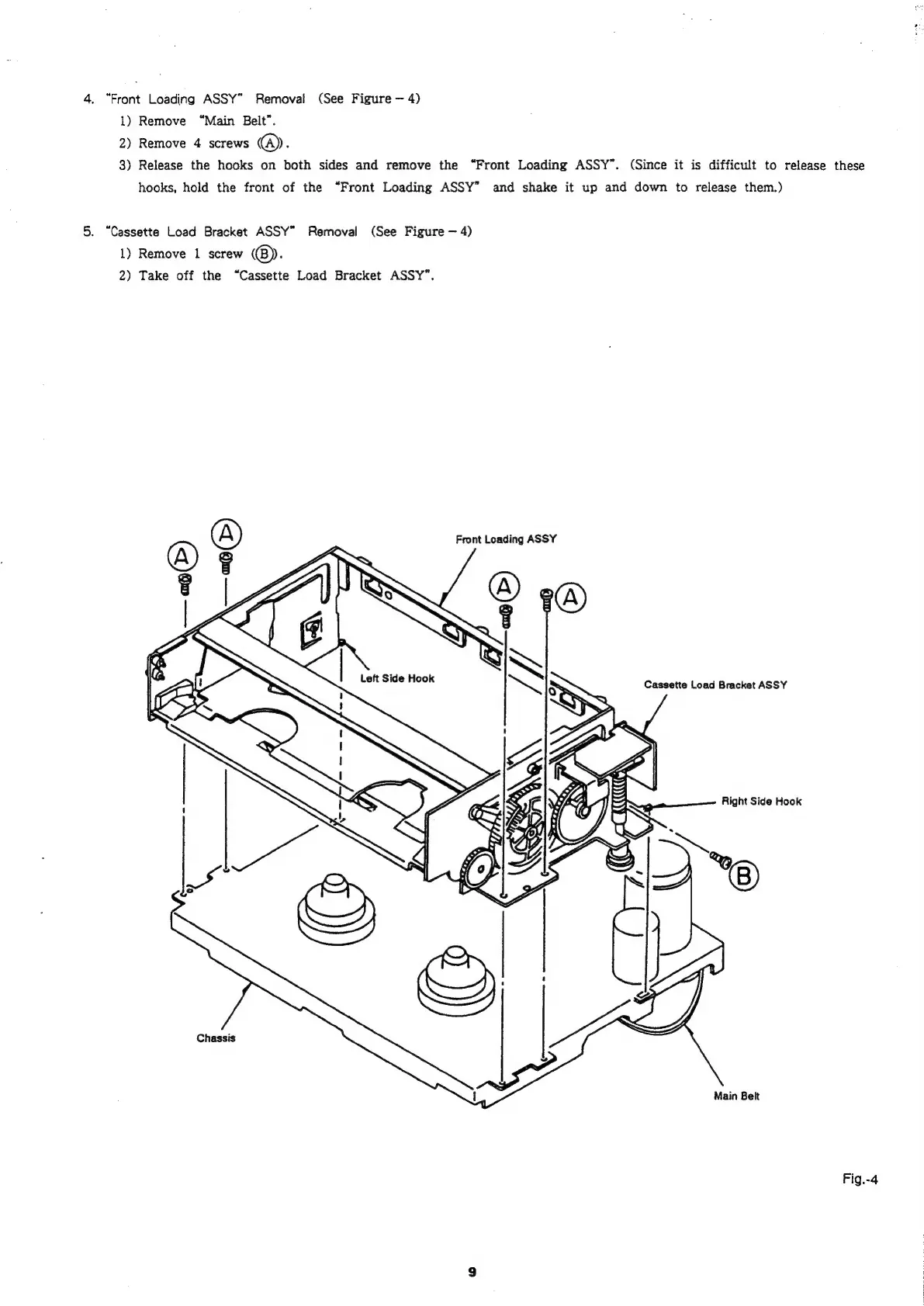

4, “Front Loading ASSY” Removal (See Figure — 4)
5.
1) Remove “Main Belt”.
2) Remove 4 screws @).
3) Release the hooks on both sides and remove the “Front Loading ASSY”. (Since it is difficult to release these
hooks, hold the front of the “Front Loading ASSY” and shake it up and down to release them.)
“Cassette Load Bracket ASSY” Removal (See Figure — 4)
1) Remove 1 screw @).
2) Take off the “Cassette Load Bracket ASSY”.
(A)
Front
Loading
ASSY
Cassette Load Bracket ASSY
Right Side Hook
(
(
Chassis
Main Belt
Fig.-4
