- Put the locking wire back in place and press on it while making
it slide to the left.
- Reposition the sealing cap on the bulb’s socket.
- Insert the cap on the rear part of the headlight.
- ATTENTION: take great care in performing the above two
procedures to prevent water from entering the headlight and
damaging it.
- Insert the protection cover on the cap, taking care that the notch
allowing for passage of the electric bundle is vertical, otherwise
the clip cannot engage and you risk losing the cover.
3. Turn signal bulbs
- Pivot the bulb fitting a quarter turn to the left and remove it.
- Press on the bulb while pivoting it to the left and remove it.
- Place the new bulb on the fitting by aligning its pins opposite the
notches of the fitting and press down while making it pivot to the
right.
- Put the bulb fitting back on the headlight by positioning its
polarizers (one large, one average, one small) opposite the
headlight’s notches.
- Press on the bulb fitting and pivot a quarter turn to the right.
4. Adjusting the height of the beam
- Depending on the load of the vehicle, it may be necessary to
change the height of the illuminating beam. The adjustment

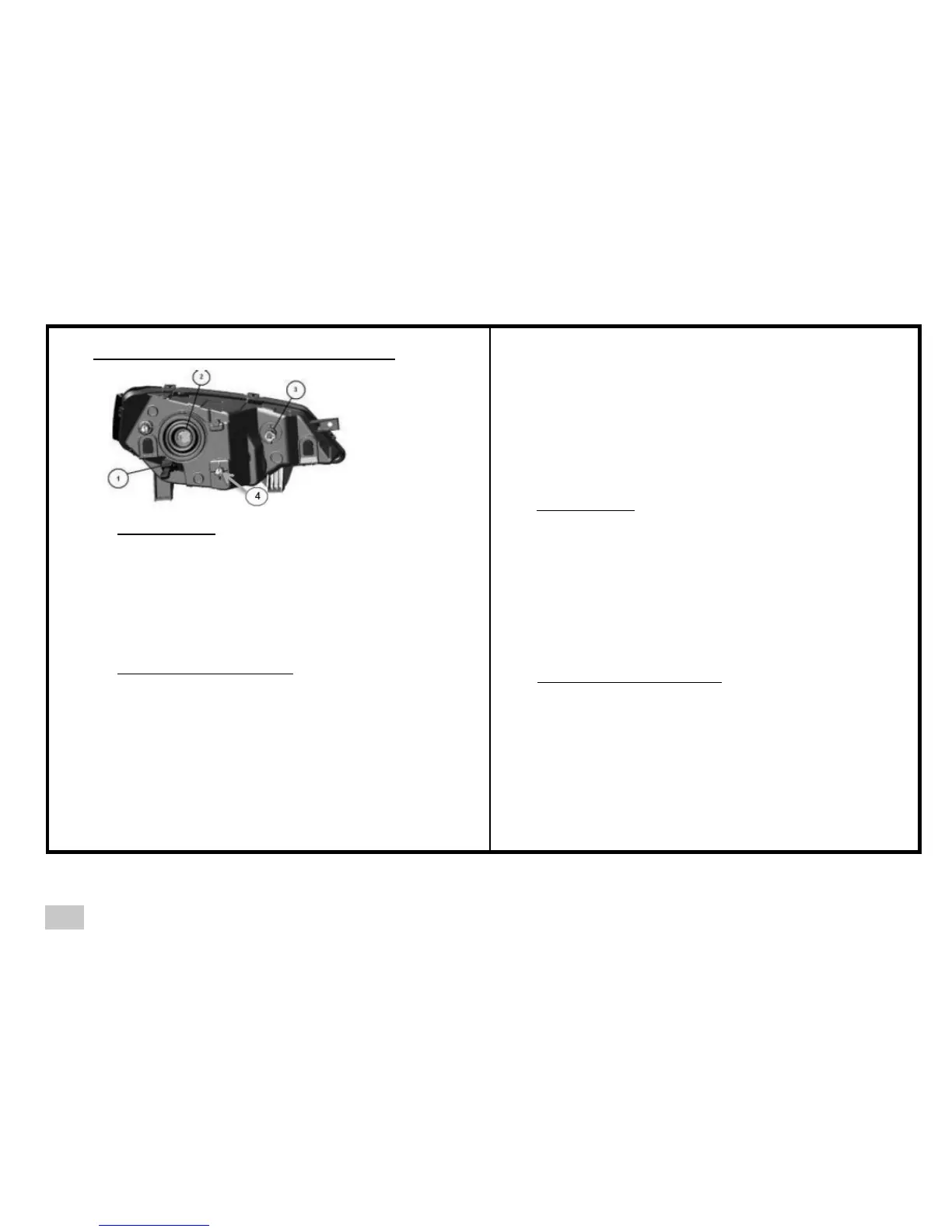

screw is indicated by mark 4 on the rear view of the headlamp.
Empty: -1% (factory setting)
At ½ load: Turn the screw one revolution (anti clockwise)
At full load: Turn the control knob round twice (anti-clockwise).
Return to initial position when the vehicle is empty by turning the
knob clockwise.
1. Parking light bulb
- Pivot the bulb fitting a quarter turn to the left and remove it.
- Remove the bulb by pulling on it and replace.
- Reposition the bulb fitting, taking care that the polarizers (one
large, one small) are located opposite the corresponding
notches on the back of the headlight.
- Pivot a quarter turn to the right while applying pressure to
compress the seal.
2. Dipped and full beam light bulb
- Pivot the headlight cover. To unlock, press the upper clip and
remove.
- Remove the sealing cap from the rear of the headlight and
pull to remove the bulb’s socket.
- Press the bulb’s locking wire by sliding it to the right and
lowering it.
- Remove the bulb.
- Put the new bulb in place, making sure that its pins enter
correctly into their housings (do not touch the glass part of
the bulb with your fingers).
