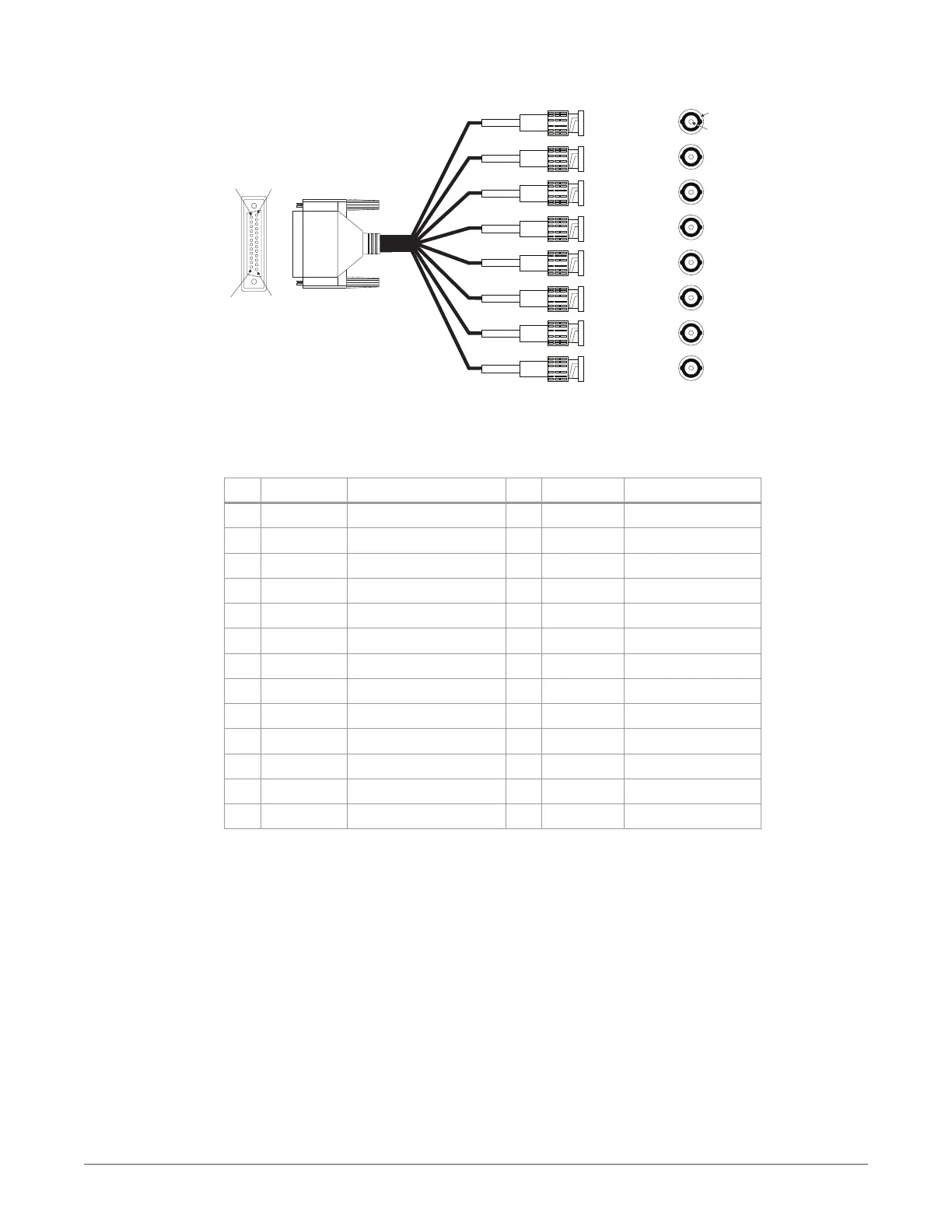

Figure 3. AES Breakout Cable Illustration, BNC Connectors
pin 13
End View Side View
pin 1
pin
14
pin
25
shield
center
conductor
Input A
AES In Ch 1/2
Input B
AES In Ch 3/4
Input C
AES In Ch 5/6
Input D
AES In Ch 7/8
Output A
AES Out Ch 1/2
Output B
AES Out Ch 3/4
Output C
AES Out Ch 5/6
Output D
AES Out Ch 7/8
Table 2. BNC DB25 Breakout Cable Pinouts
Pin Function Pin, <connector> Pin Function Pin, <connector>
1 In 4 + center, AES In 7/8 14 In 4 - NC
2 In 4 GND shield, AES In 7/8 15 In 3 + center, AES In 5/6
3 In 3 - NC 16 In 3 GND shield, AES In 5/6
4 In 2+ center, AES In 3/4 17 In 2 - NC
5 In 2 GND shield, AES In 3/4 18 In 1 + enter, AES In 1/2
6 In 1 - NC 19 In 1 GND shield, AES In 1/2
7 Out 4 + center, AES Out 7/8 20 Out 4 - NC
8 Out 4 GND shield, AES Out 7/8 21 Out 3 + center, AES Out 5/6
9 Out 3 - NC 22 Out 3 GND shield, AES Out 5/6
10 Out 2 + center, AES Out 3/4 23 Out 2 - NC
11 Out 2 GND shield, AES Out 3/4 24 Out 1 + center, AES Out 1/2
12 Out 1 - NC 25 Out 1 GND shield, AES Out 1/2
13 NC Jumper to DB-25 pin 11
