AJA 3G-AM - Breakout Cable Pinouts

3G-AM Mini-Converter v1.2r3 7 www.aja.com
Breakout Cable Pinouts

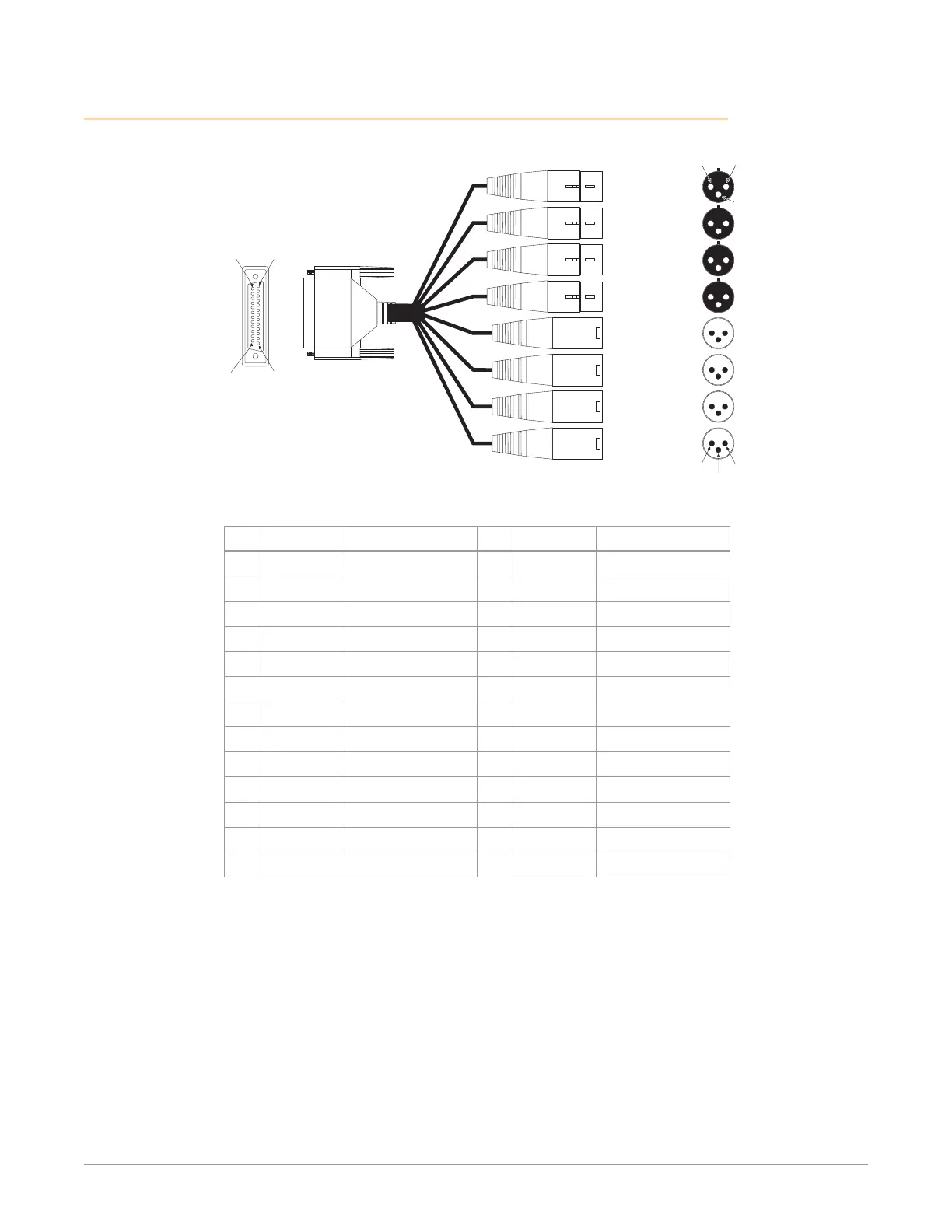

Figure 2. AES Breakout Cable Illustration, XLR Connectors
Side View
pin 13
End View
pin 1
pin
14
pin
25
Input A
AES In Ch 1/2
Input B
AES In Ch 3/4
Input C
AES In Ch 5/6
Input D
AES In Ch 7/8
Output A
AES Out Ch 1/2
Output B
AES Out Ch 3/4
Output C
AES Out Ch 5/6
Output D
AES Out Ch 7/8
pin 1 pin
2
pin 3
Input A
Input B
Input C
Input D
Output A
Output B
Output C
Output D
pin 2pin 1
pin
3
Table 1. XLR DB25 Breakout Cable Pinouts
Pin Function Pin, <connector> Pin Function Pin, <connector>
1 In 4 + 2, XLR Input D 14 In 4 - 3, XLR Input D
2 In 4 GND 1, XLR Input D 15 In 3 + 2, XLR Input C
3 In 3 - 3, XLR Input C 16 In 3 GND 1, XLR Input C
4 In 2+ 2, XLR Input B 17 In 2 - 3, XLR Input B
5 In 2 GND 1, XLR Input B 18 In 1 + 2, XLR Input A
6 In 1 - 3, XLR Input A 19 In 1 GND 1, XLR Input A
7 Out 4 + 2, XLR Output D 20 Out 4 - 3, XLR Output D
8 Out 4 GND 1, XLR Output D 21 Out 3 + 2, XLR Output C
9 Out 3 - 3, XLR Output C 22 Out 3 GND 1, XLR Output C
10 Out 2 + 2, XLR Output B 23 Out 2 - 3, XLR Output B
11 Out 2 GND 1, XLR Output B 24 Out 1 + 2, XLR Output A
12 Out 1 - 3, XLR Output A 25 Out 1 GND 1, XLR Output A
13 NC NC
