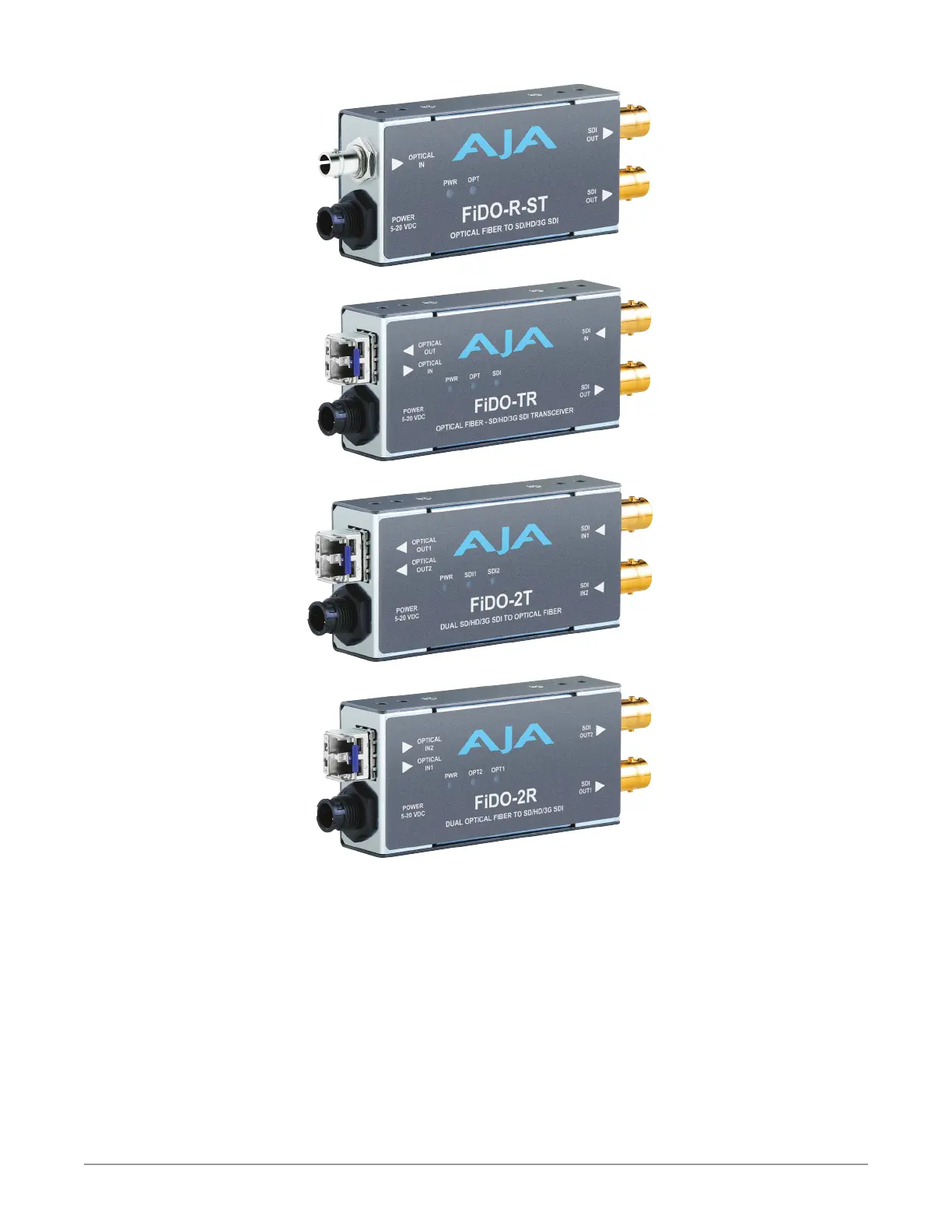

FiDO 3G Series SDI/Optical Fiber Mini-Converters v1.2 8 www.aja.com
3G-SDI
Output
Second SDI
Output
(DA: same signal)
simplex
connection
(ST connector)
2 simplex
or
1 duplex
connection
(LC connector)
2 Independent
Channels of
3G-SDI
2 simplex
or
1 duplex
connection
(LC connector)
2 Independent
Channels of
3G-SDI
2 simplex
or
1 duplex
connection
(LC connector)
2 Independent
Channels of
3G-SDI
