AJA GEN10 HD/SD Sync Generator User Manual — Introduction
Introduction
The GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10
features 7 outputs including 2 groups of independently controlled SD/HD sync
outputs and 1 AES-11 output. The SD outputs can be switched between Color Black
or Color Bars. HD tri-level sync can be switched between 19 different HD formats
including all that are in use today. The AES-11 output can be switched between
SILENCE and TONE. All outputs are in sync with each-other and are sourced from
an accurate master time base.
Features
•
HD Tri-level sync generation
•
SD Color Black or Color Bars
•
Two groups of independently switchable outputs allows simultaneous HD and
SD sync generation
•
AES-11 output switchable between silence and tone
•
Multiple outputs can synchronize entire systems without requiring a Sync DA
•
5-18VDC Power
•
External Dip Switch Configuration

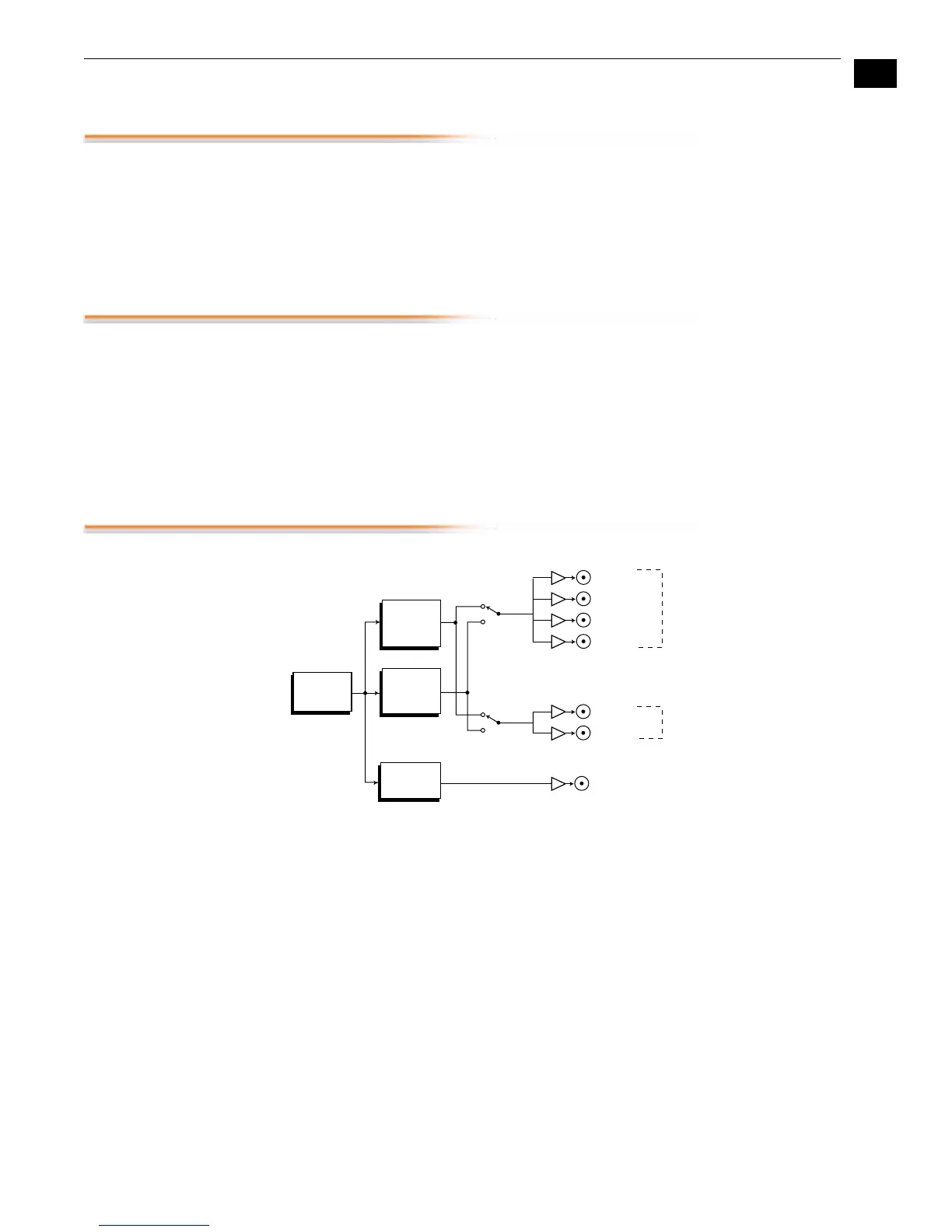

Block Diagram
GEN10, Block Diagram
Master
Timebase
Selectable as a group for
HD: Trilevel
720 or 1080
(multiple formats: see specifications)
or
SD: 75% Color Bars or Blackburst
PAL or NTSC
AES
Generator
SD
Sync
Generator
HD
Sync
Generator
SD
HD
SD
HD
SW1
SW2
AES 11 Output
Group 1
Group 2
Output 1
Output 2
Output 3
Output 4
Output 5
Output 6
Selectable as a group for
HD: Trilevel
720 or 1080
(multiple formats: see specifications)
or
SD: 75% Color Bars or Blackburst
PAL or NTSC
