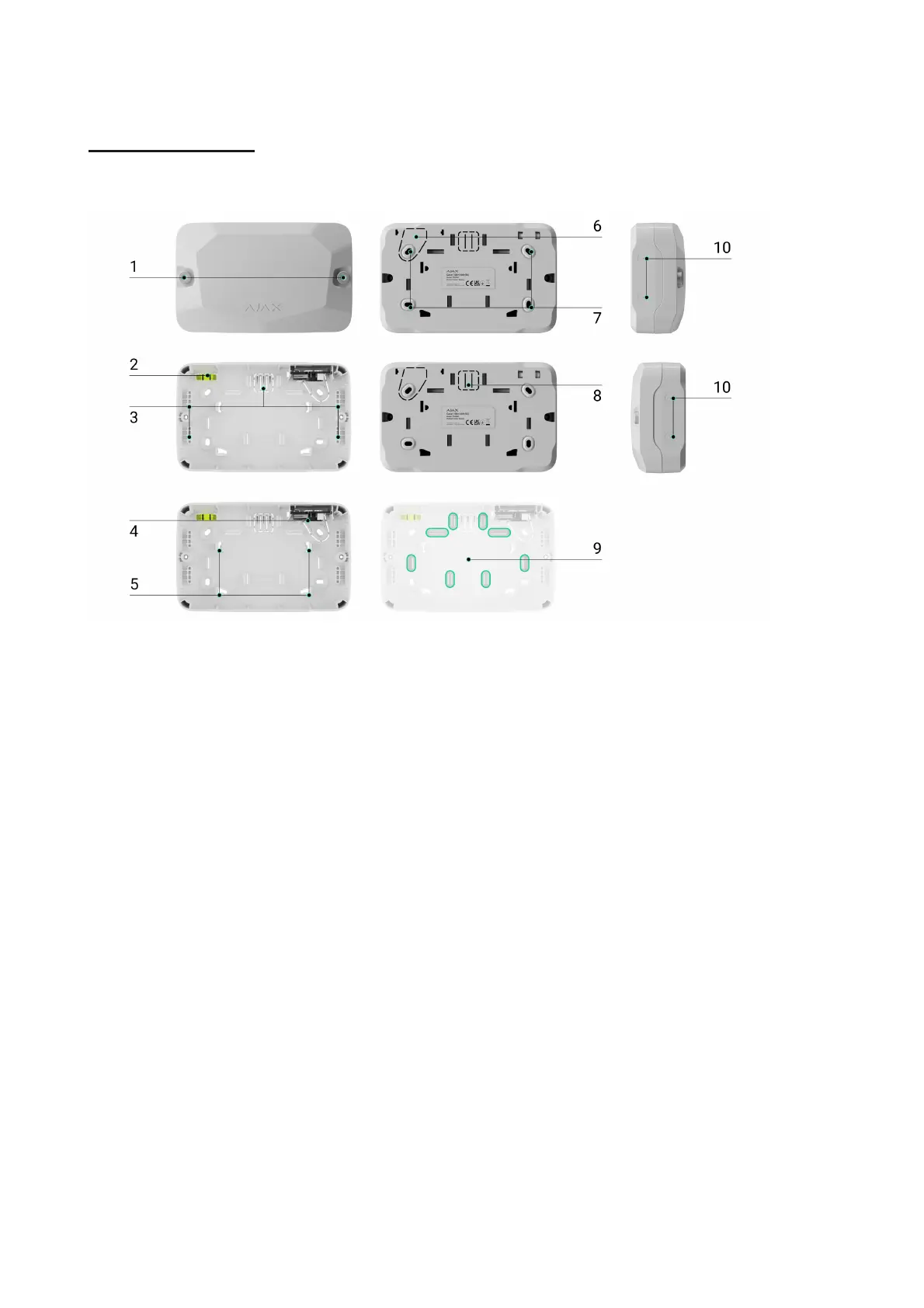

Functional elements
Case A (106) Case B (175) Case C (260) Case D (430)
1. Holding screws to secure the casing lid. Can be unscrewed with a bundled
hex key (Ø 4 mm).
2. Bubble level to check the inclination angle of the mount during installation.
3. Stoppers to protect a device during drilling.
4. The tamper board with a wire to connect an Ajax device.
5. Latches to attach a device.
. Perforated part of the casing. Do not break it off. This part is necessary for
tamper triggering in case of any attempt to detach the casing from the
surface.
7. Holes to attach the casing to the surface.
. Perforated part to run the wires.
9. Fasteners to fix the cables with ties.
10. Recesses to drill the holes conveniently.
