Remove the insulating layer and strip the cable with a special insulation stripper.
The ends of the wires inserted into the device terminals must be tinned or
crimped with a sleeve. This ensures a reliable connection and protects the
conductor from oxidation.
Installation
Before installation, ensure that you have selected the optimal location for the
casing and that it complies with the requirements of this manual.
To install Case:
How to prepare the cable
Case A (106) Case B (175) Case C (260) Case D ( 430)

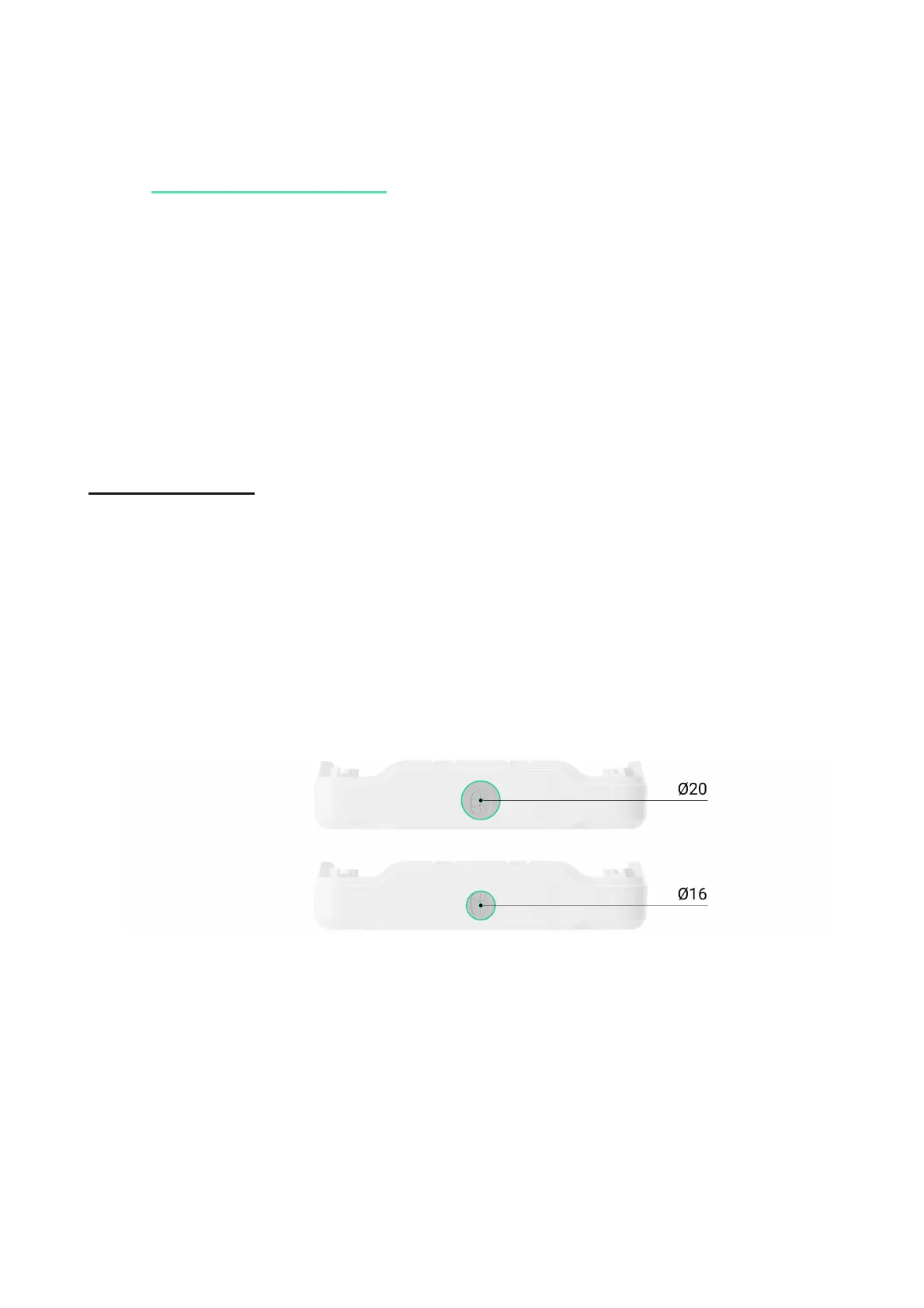

1. Prepare cable holes in advance: drill the holes in the bottom or side of the
casing or break out the perforated part on the back of Case. We recommend
using a hole saw for plastic Ø16 mm or Ø20 mm.
Insert the pipe, corrugated pipe or conduit into the holes in the casing.
