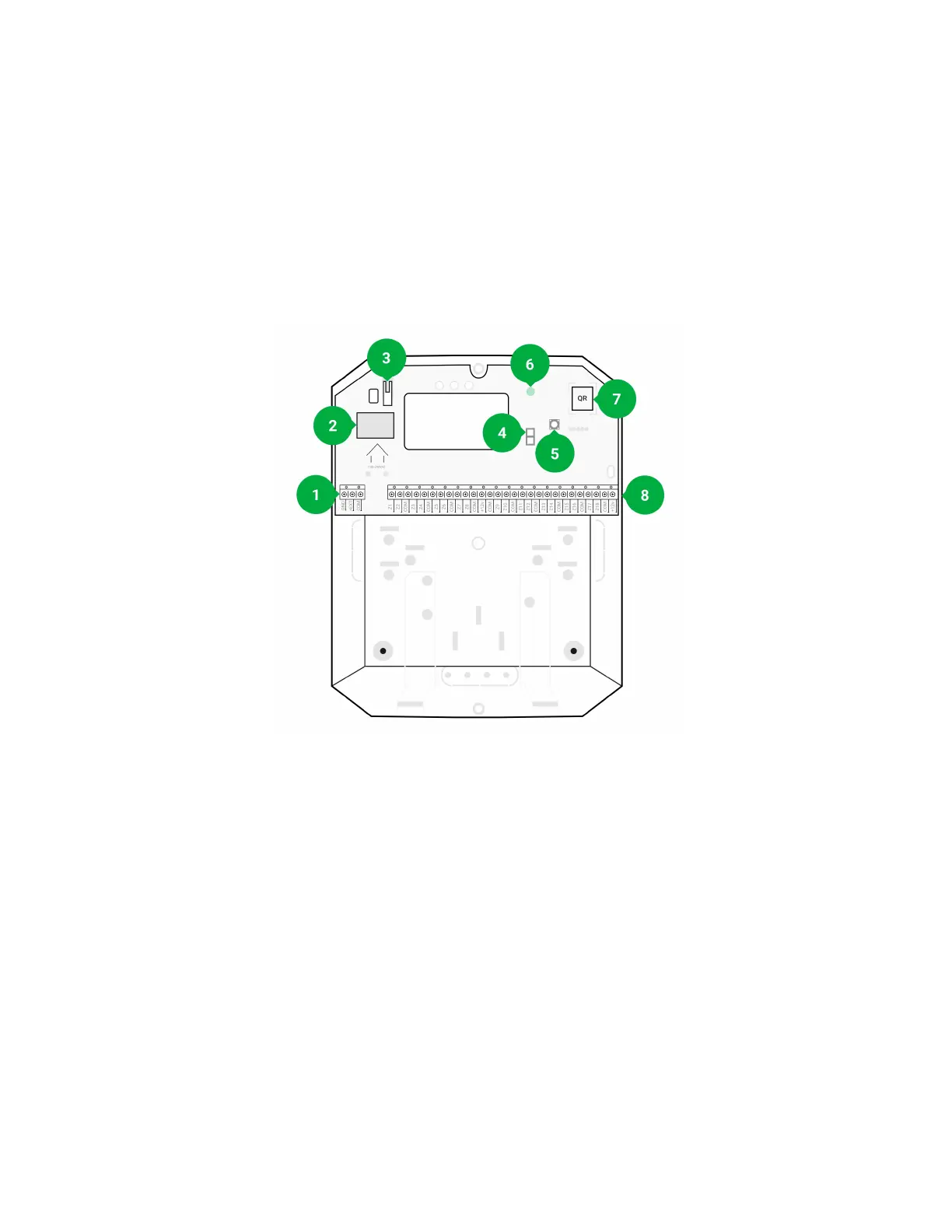

MultiTransmitter card elements
3. QR code and ID/serial number of the device
4. Perforated part of the body. It is necessary for tamper triggering in case of
dismounting attempts
5. Perforated part of the body for the output of wires of connected detectors and
devices
1. Power supply terminals for fire detectors
2. Power supply input 110/230 V
3. Tamper button. Signals if MultiTransmitter body lid is removed
4. Terminals for connecting a 12 V backup battery
5. Power button
. LED indicator
7. QR code and ID/serial number of the device
. Terminals for connecting wired detectors (zones)
