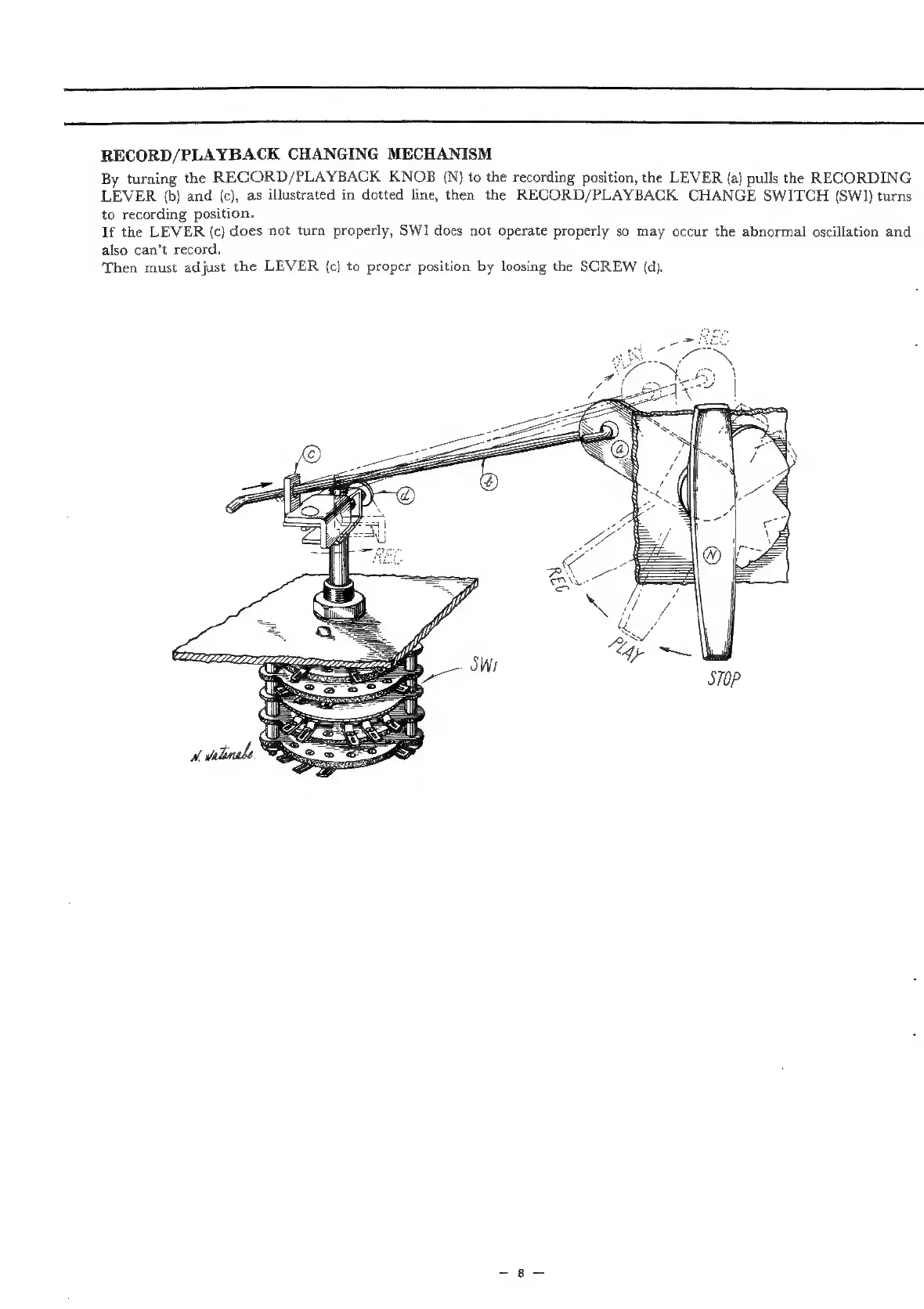

RECORD/PLAYBACK
CHANGING
MECHANISM
By
turning
the
RECORD/PLAYBACK
KNOB
(N)
to
the
recording
position,
the
LEVER
{a}
pulls
the
RECORDING
LEVER
(b)
and
(c),
as
illustrated
in
dotted
line,
then
the
RECORD/PLAYBACK
CHANGE
SWITCH
(SWI)
turns
to
recording
position.
If
the
LEVER
(c)
does
not
turn
properly,
SW!
does
not
operate
properly
so
may
occur
the
abnormal
oscillation
and
also
can’t
record.
Then
must
adjust
the
LEVER
(c)
to
proper
position
by
loosing
the
SCREW
(d).
