Akai 1700 Service Manual

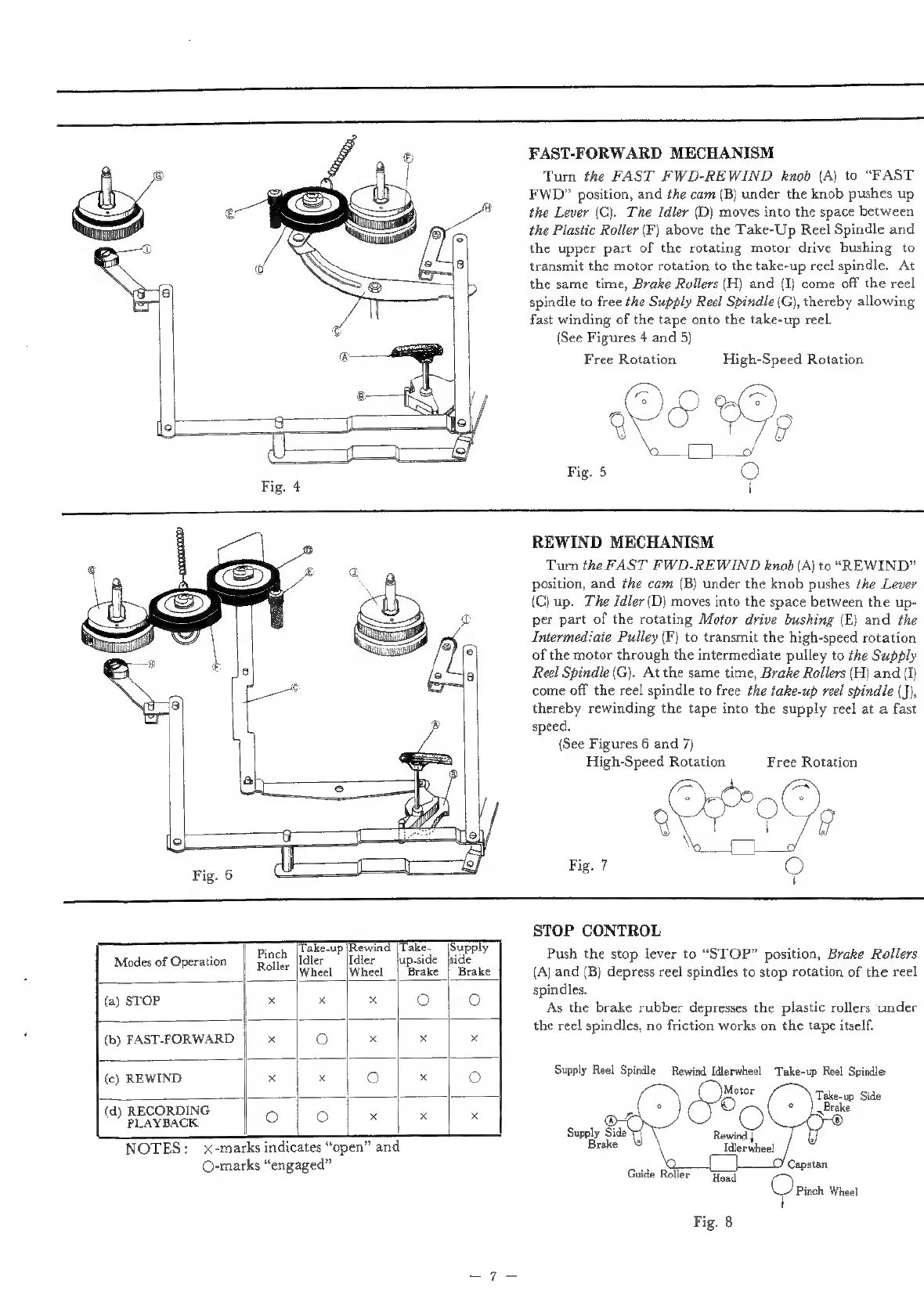

FAST-FORWARD MECHANISM
Turn the FAST FWD-REWIND knob (A) to “FAST
FWD” position, and he cam (B) under the knob pushes up
the Lever (C). The Idler (D) moves into the space between
the Plastic Roller (F) above the Take-Up Reel Spindle and
the upper part of the rotating motor drive bushing to
transmit the motor rotation to the take-up reel spindle. At
the same time, Brake Rollers (H) and (I) come off the reel
spindle to free the Supply Reel Spindle (G), thereby allowing
fast winding of the tape onto the take-up reel.
(See Figures 4 and 5)
Free Rotation High-Speed Rotation
NF =
o } f °
Wwe Wye
2 E
Fig. 5 oO
T
REWIND MECHANISM
Turn the FAST FWD-REWIND knob (A) to “REWIND”
position, and the cam (B) under the knob pushes the Levey
(C) up. The Idler (D) moves into the space between the up-
per part of the rotating Motor drive bushing (E) and the
Intermediate Pulley (F} to transmit the high-speed rotation
of the motor through the intermediate pulley to the Supply
Reel Spindle (G). At the same time, Brake Rollers (H) and (I)
come off the reel spindle to free the take-up reel spindle (J),
thereby rewinding the tape into the supply reel at a fast
speed,
(See Figures 6 and 7}
High-Speed Rotation Free Rotation
Cro Op
Fig. 7
STOP CONTROL
Pinch |fake-up Rewin Meee Supply Push the stop lever to “STOP” position, Brake Rollers
Roller jWitcet Wheel [Brake | ‘Brake (A) and (B} depress reel spindles to stop rotation of the reel
| spindles.
As the brake rubber depresses the plastic rollers under
the reel spindles, no friction works on the tape itself.
Modes of Operation
(a) STOP
4
(b) FAST-FORWARD
(c)
REWIND
Supply
Reel
Spindle
Rewind
Idlerwhecl
Take-up
Reel
Spindle
Motor Take-up Side
(a)
RECORDING
_Brake
PLAYBACK
Supply Side Resid
NOTES:
x-marks
indicates
“open”
and
Brake
Idlerwheel
:
i
ra
f
O-marks “engaged Guide Roller Fizad
O Pinch Wheel
H
Fig. 8
