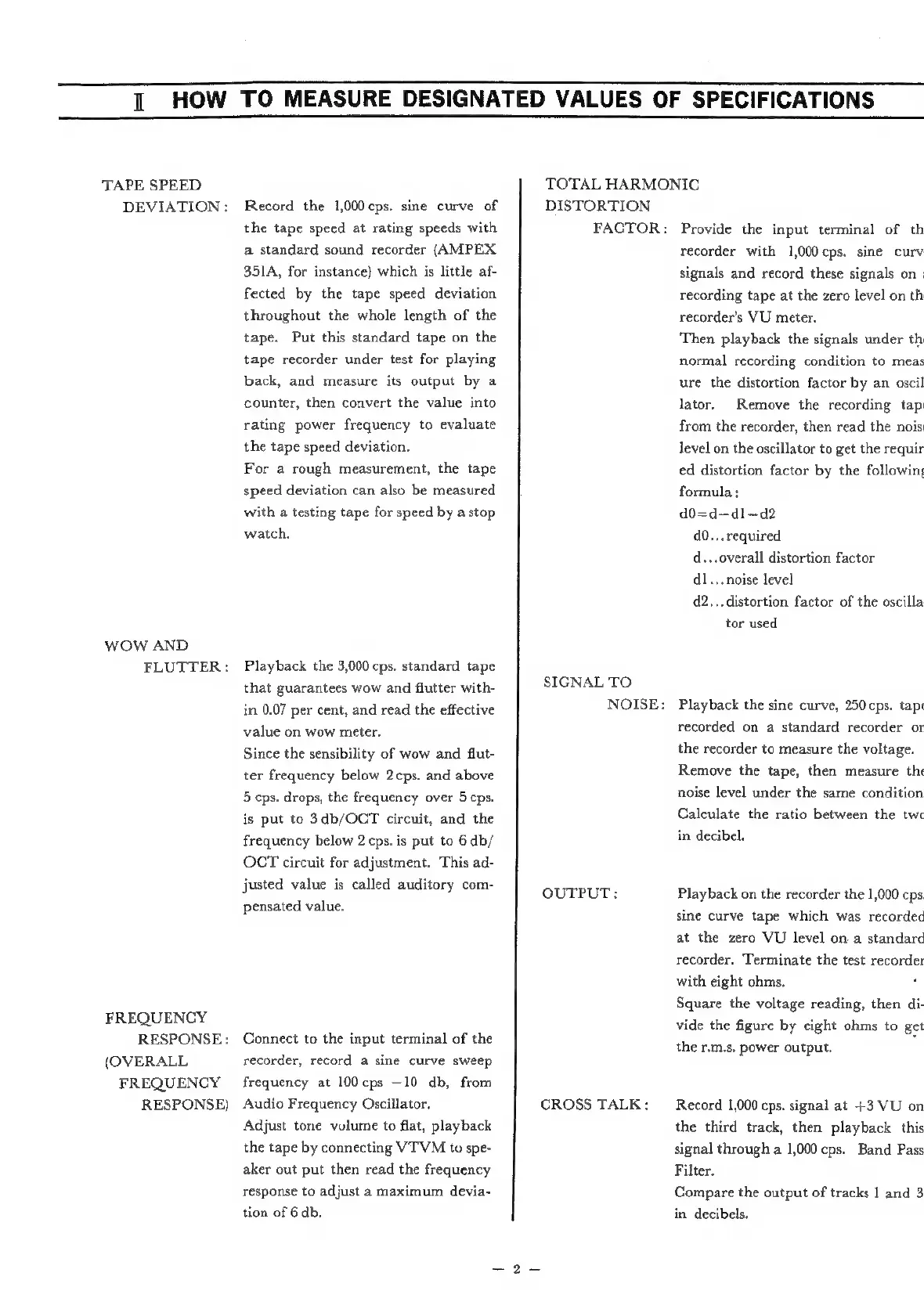

I
HOW
TO
MEASURE
DESIGNATED
VALUES
OF
SPECIFICATIONS
TAPE
SPEED
DEVIATION:
WOW
AND
FLUTTER:
FREQUENCY
RESPONSE:
(OVERALL
FREQUENCY
RESPONSE)
Record
the
1,000cps.
sine
curve
of
the
tape
speed
at
rating
speeds
with
a
standard
sound
recorder
(AMPEX
351A,
for
instance)
which
is
little
af-
fected
by
the
tape
speed
deviation
throughout
the
whole
length
of
the
tape.
Put
this
standard
tape
on
the
tape
recorder
under
test
for
playing
back,
and
measure
its
output
by
a
counter,
then
convert
the
value
into
rating
power
frequency
to
evaluate
the
tape
speed
deviation.
For
a
rough
measurement,
the
tape
speed
deviation
can
also
be
measured
with
a
testing
tape
for
speed
by
a
stop
watch,
Playback
the
3,000
cps.
standard
tape
that
guarantees
wow
and
flutter
with-
in
0.07
per
cent,
and
read
the
effective
value
on
wow
meter.
Since
the
sensibility
of
wow
and
flut-
ter
frequency
below
2cps.
and
above
5
cps.
drops,
the
frequency
over
5
cps.
is
put
to
3db/OCT
circuit,
and
the
frequency
below
2
cps.
is
put
to
6
db/
OCT
circuit
for
adjustment.
This
ad-
justed
value
is
called
auditory
com-
pensated
value.
Connect
to
the
input
terminal
of
the
recorder,
record
a
sine
curve
sweep
frequency
at
100
cps
—10
db,
from
Audio
Frequency
Oscillator.
Adjust
tone
vulume
to
flat,
playback
the
tape
by
connecting
VTVM
to
spe-
aker
out
put
then
read
the
frequency
response
to
adjust
a
maximum
devia-
tion
of
6
db.
TOTAL
HARMONIC
DISTORTION
FACTOR:
SIGNAL
TO
NOISE:
OUTPUT:
CROSS
TALK:
Provide
the
input
terminal
of
th
recorder
with
1,000cps.
sine
curv
signals
and
record
these
signals
on
|
recording
tape
at
the
zero
level
on
th
recorder’s
VU
meter.
Then
playback
the
signals
under
th
normal
recording
condition
to
meas
ure
the
distortion
factor
by
an
oscil
lator.
Remove
the
recording
tap:
from
the
recorder,
then
read
the
nois
level
on
the
oscillator
to
get
the
requir
ed
distortion
factor
by
the
followin
formula:
d0=d—dl—d2
di
equired
d...overall
distortion
factor
dl...noise
level
d2...distortion
factor
of
the
oscilla
tor
used
Playback
the
sine
curve,
250
cps.
tape
recorded
on
a
standard
recorder
or
the
recorder
to
measure
the
voltage.
Remove
the
tape,
then
measure
the
noise
level
under
the
same
condition
Calculate
the
ratio
between
the
twc
in
decibel.
Playback
on
the
recorder
the
1,000
cps.
sine
curve
tape
which
was
recorded
at
the
zero
VU
level
on
a
standard
recorder.
Terminate
the
test
recorder
with
eight
ohms.
Square
the
voltage
reading,
then
di-
vide
the
figure
by
eight
ohms
to
get
the
r.m.s.
power
output.
:
Record
1,000
cps.
signal
at
+3
VU
on
the
third
track,
then
playback
this
signal
through
a
1,000
cps.
Band
Pass
Filter.
Compare
the
output
of
tracks
1
and
3
in
decibels.
